Genuine ZR Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST

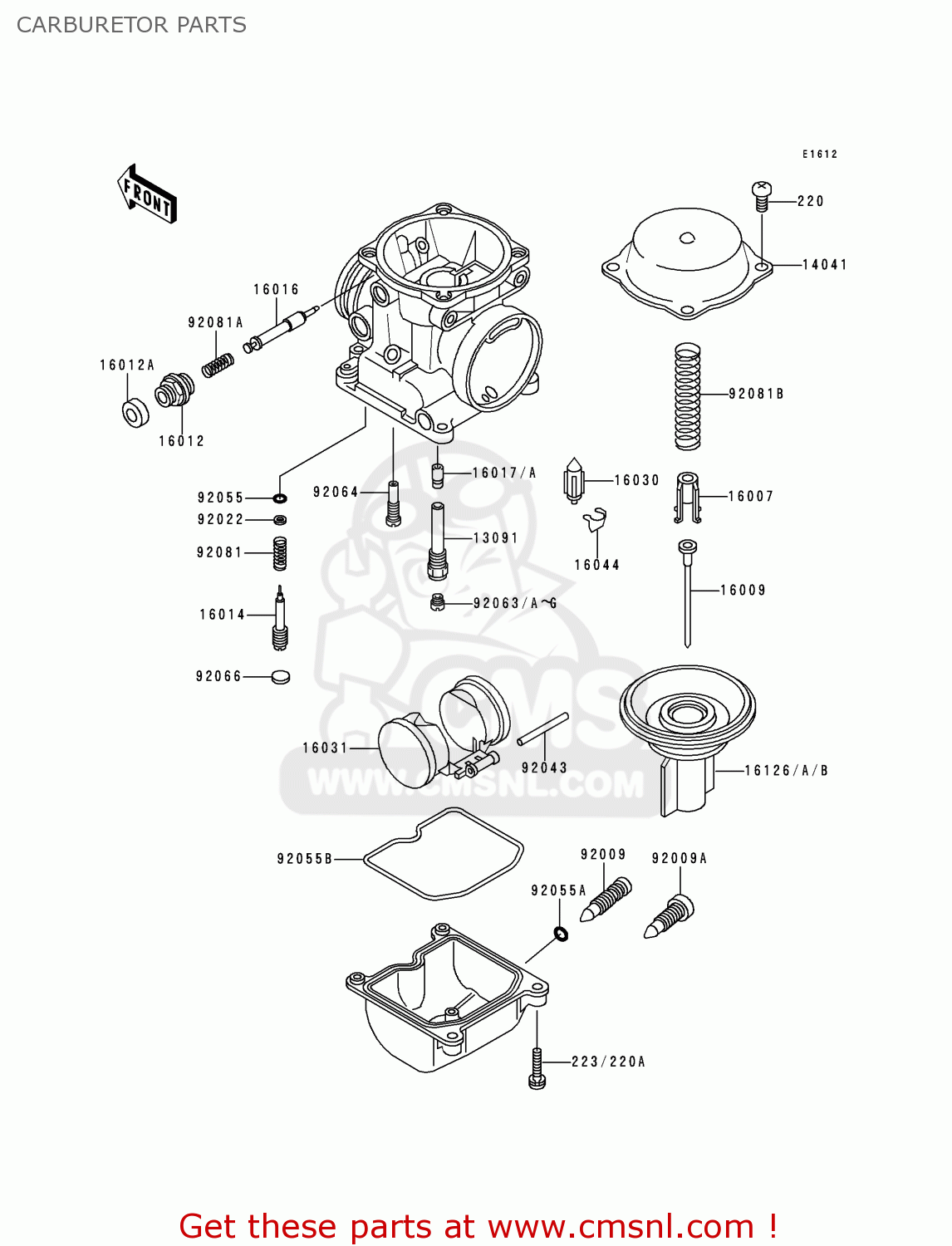

Carburetor parts diagram ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST

CARBURETOR PARTS ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
CARBURETOR PARTS ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
CARBURETOR PARTS ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
130911406
€ 19.00
14041
140411076
ref: 14041
TOP-CHAMBER
140411076
€ 68.00
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091647
ref: 16009
NEEDLE-JET,N52S
160091647
€ 29.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171285
ref: 16017
AREUFGFRGRNRSPUK
JET-NEEDLE
€ 33.00
16017A
160171286
ref: 16017A
ST
JET-NEEDLE,#6
160171286
€ 30.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261160
ref: 16126
AREUFGFRGRNRSPUK
VALVE,VACUUM
161261160
€ 159.50
16126B
161261193
ref: 16126B
ST
VALVE,VACUUM
€ 114.50
92009
920091095
ref: 92009
AREUFGFRGRNRSPST
SCREW,DRAIN
920091095
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
AREUFGFRGRNRSPST
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631001
ref: 92063
JET-MAIN,#95
920631001
€ 10.00
92063B
920631003
ref: 92063B
MAIN JET, 2ND, # 90
920631003
€ 9.50
92063C
920631004
ref: 92063C
JET-MAIN,#92
920631004
€ 10.00
92063D
920631005
ref: 92063D
JET-MAIN,#98
920631005
€ 10.00
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
UK
SCREW-PAN-CROS
220D0414
€ 2.00
223
223C0416
ref: 223
AREUFGFRGRNRSPST
SCREW-PAN-WS-CROS
223C0416
€ 2.50
92063E
920631023
ref: 92063E
JET-MAIN,#85
920631023
€ 9.50
92063F
920631024
ref: 92063F
JET-MAIN,#88
920631024
€ 10.00
92063G
920631044
ref: 92063G
JET-MAIN,#82
920631044
€ 10.00
92064
920641035
ref: 92064
JET-PILOT,#35
920641035
€ 12.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811775
ref: 92081B
SPRING,VACUUM VALVE
€ 17.00
