FRONT FORK(ZR750C-038584&NAMI.)

ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST

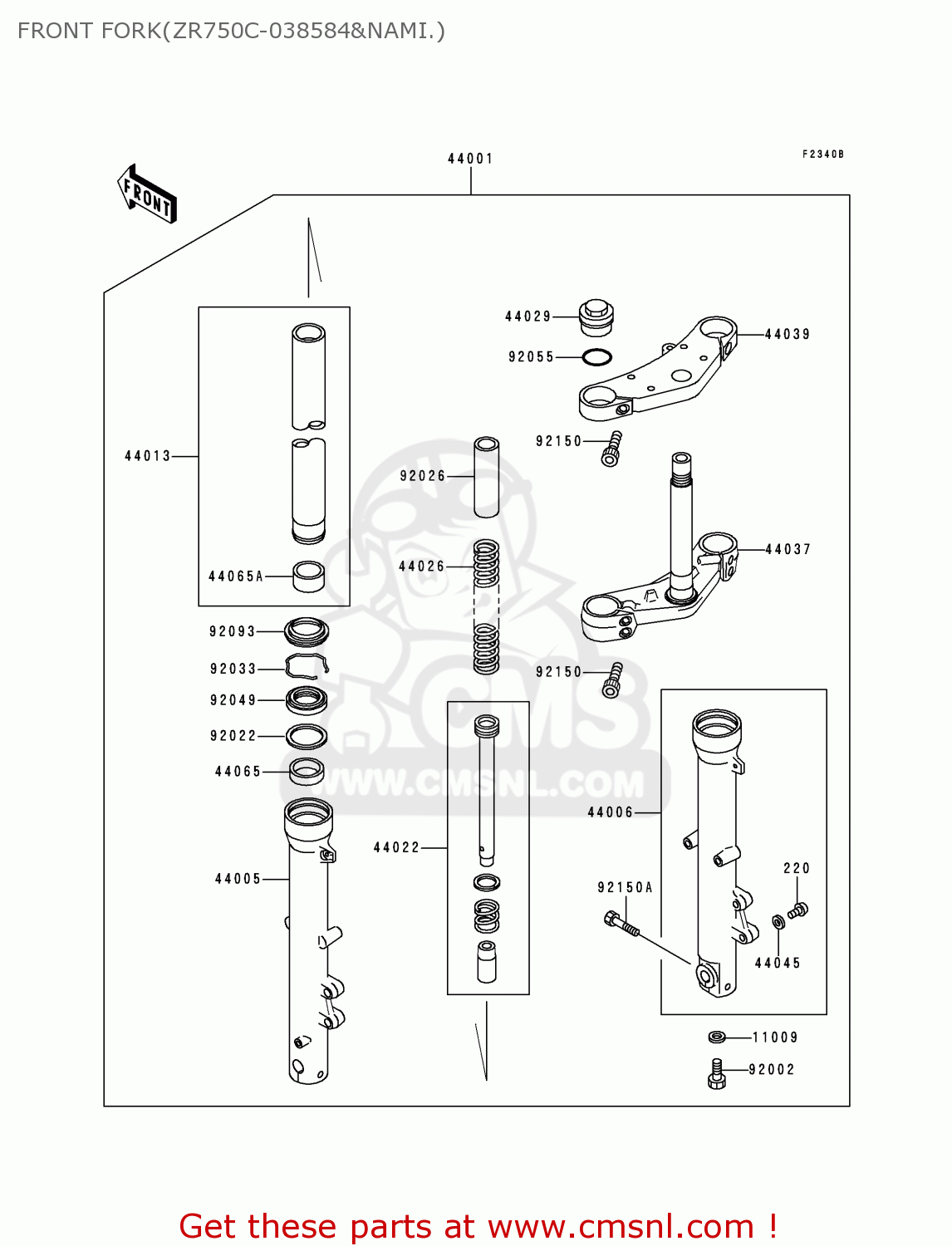

Front fork(zr750c-038584&nami.) diagram ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST

FRONT FORK(ZR750C-038584&NAMI.) ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
FRONT FORK(ZR750C-038584&NAMI.) ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
FRONT FORK(ZR750C-038584&NAMI.) ZR750C4 ZEPHYR 750 1994 EUROPE UK FR AR FG GR NR SP ST
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
110091553
€ 3.00
44001
440011870
ref: 44001
FORK-FRONT
€ 3,395.50
44005
440051312
ref: 44005
PIPE-LEFT FORK OUTER
440051312
€ 332.00
44006
440061309
ref: 44006
PIPE-RIGHT FORK OUTER
440061309
€ 167.00
44013
440131339
ref: 44013
PIPE-FORK INNER
440131339
€ 194.50
44022
440221263
ref: 44022
CYLINDER-FORK
€ 114.00
44026
440261548
ref: 44026
SPRING-FRONT FORK
€ 58.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
440291147
€ 31.50
44037
440371278
ref: 44037
HOLDER-FORK UNDER
€ 283.00
44039
440391209
ref: 44039
HOLDER-FORK UPPER
440391209
€ 242.00
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
440651085
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
440651086
€ 21.00
92002
920021650
ref: 92002
BOLT,FORK DRAIN
920021650
€ 10.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261404
ref: 92026
SPACER
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
920491356
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92093
920931359
ref: 92093
SEAL,FORK OUTER TUBE
920931359
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501468
ref: 92150A
BOLT
921501468
€ 6.00
92200
922001191
ref: 92200
WASHER
922001191
€ 6.50
