TRANSMISSION
ZR1100D2 ZRX1100 1998 FRANCE NL NR SD

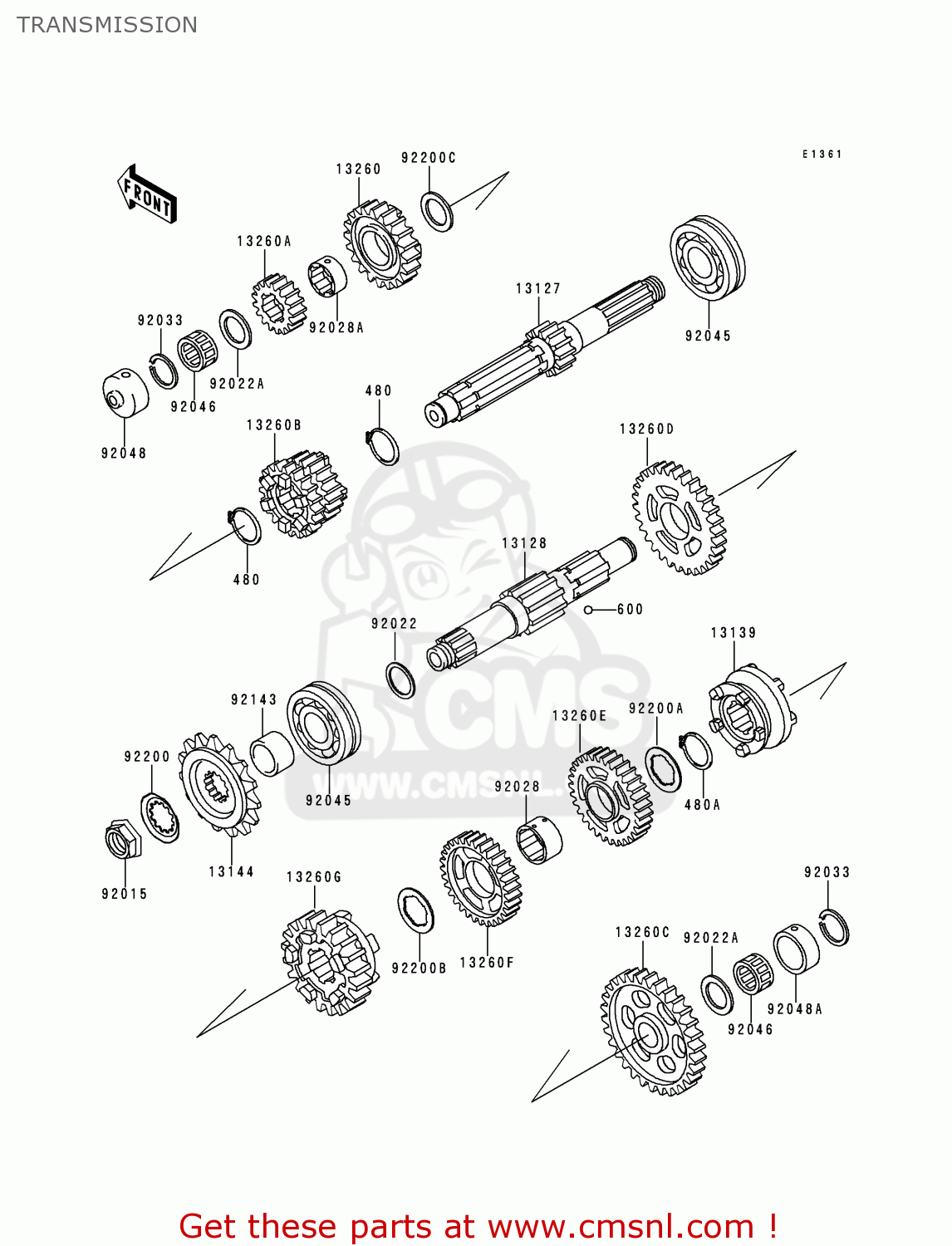

Transmission diagram ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
TRANSMISSION ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271257
ref: 13127
SHAFT-TRANSMISSION IN
€ 229.00
13128
131281218
ref: 13128
SHAFT-TRANSMISSION OU
€ 195.50
13139
131391079
ref: 13139
SHIFTER
€ 90.50
13144
131441283
ref: 13144
SPROCKET-OUTPUT,17T
€ 36.00
13260
132601500
ref: 13260
GEAR,INPUT TOP,28T
€ 103.00
13260A
132601663
ref: 13260A
GEAR,INPUT 2ND,19T
€ 112.00
13260B
132601664
ref: 13260B
GEAR,INPUT 3RD&4TH,23
€ 162.00
13260C
132601665
ref: 13260C
GEAR,OUTPUT LOW,41T
€ 173.50
13260D
132601666
ref: 13260D
GEAR,OUTPUT 2ND,37T
€ 155.00
13260E
132601667
ref: 13260E
GEAR,OUTPUT 3RD,34T
€ 155.00
13260F
132601668
ref: 13260F
GEAR,OUTPUT 4TH,31T
€ 170.50
13260G
132601669
ref: 13260G
GEAR,OUTPUT TOP,29T
€ 155.00
92015
920151210
ref: 92015
NUT,20MM
€ 12.00
92022
920221219
ref: 92022
WASHER,28.3X42X2.9
€ 10.50
92022A
92022212
ref: 92022A
WASHER-PLAIN,22MM
€ 6.50
92028
920281753
ref: 92028
BUSHING,OUTPUT,3RD&4T
€ 28.50
92028A
920281802
ref: 92028A
BUSHING,INPUT,TOP GEA
€ 30.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92045
920451186
ref: 92045
BEARING-BALL
€ 73.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481052
ref: 92048
RACE,INPUT SHAFT
€ 59.50
92048A
920481053
ref: 92048A
RACE,30X38X15
€ 27.50
92143
921431731
ref: 92143
COLLAR,28X40X33.5
€ 23.50
92200
922001234
ref: 92200
WASHER,TOOTHED,23.9X4
€ 4.00
92200A
922001277
ref: 92200A
WASHER,TOOTHED,28X30X
€ 8.00
92200B
922001278
ref: 92200B
WASHER,29.9X40X1.5
€ 8.00
92200C
922001340
ref: 92200C
WASHER
€ 4.00
