CYLINDER/PISTON(S)

ZR1100D2 ZRX1100 1998 FRANCE NL NR SD

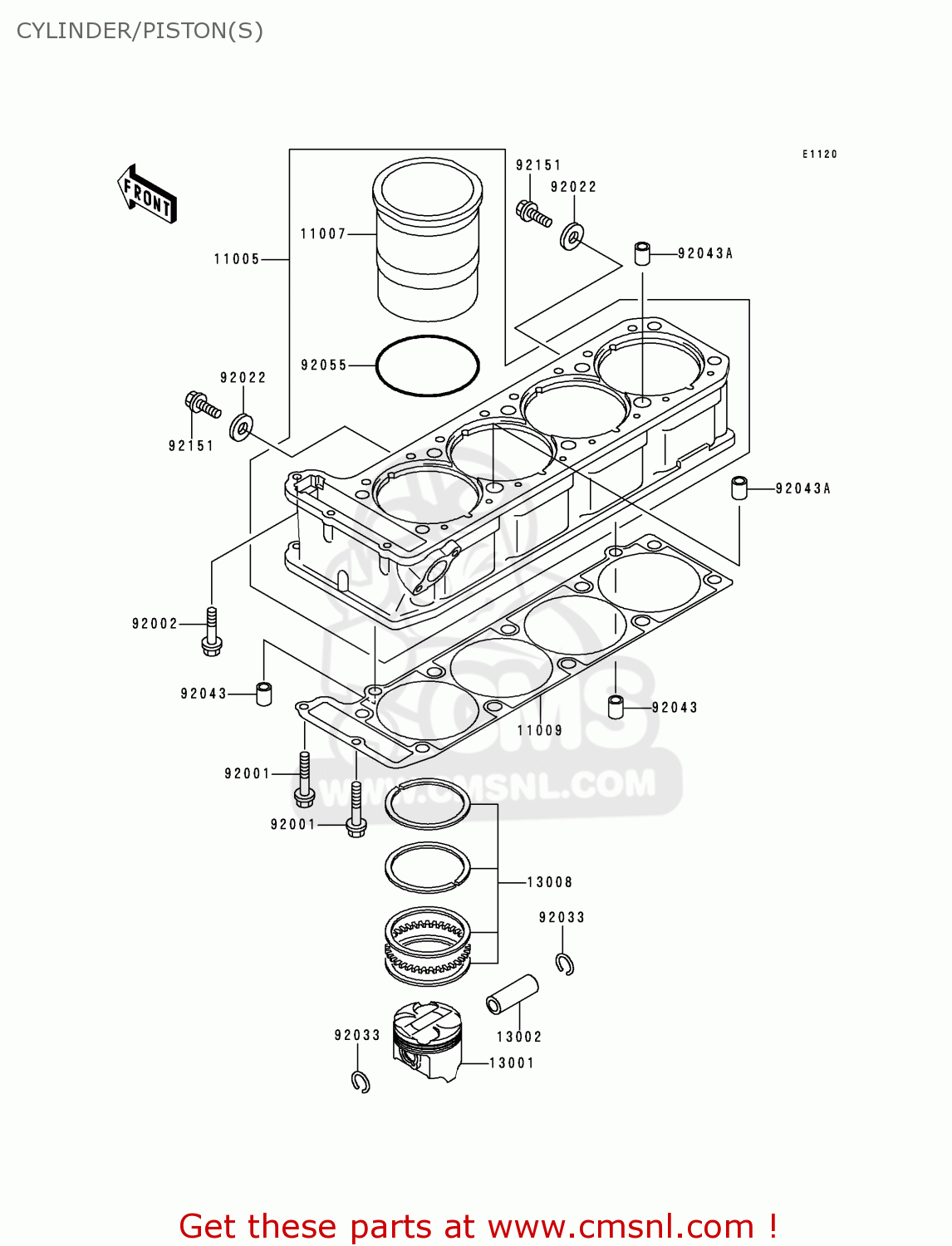

Cylinder/piston(s) diagram ZR1100D2 ZRX1100 1998 FRANCE NL NR SD

prices are in EUR

ref

part #

description

quantity

11005

110051615
ref: 11005

CYLINDER-ENGINE

€ 1,416.50

11007

110071114
ref: 11007

LINER-CYLINDER

€ 128.50

11009

110091847
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 24.50

13001

130011398
ref: 13001

PISTON-ENGINE

€ 73.50

13002

130021058
ref: 13002

PIN-PISTON

€ 17.00

13008

130081152
ref: 13008

RING-SET-PISTON

€ 63.50

92001

920011899
ref: 92001

BOLT,6X38

€ 2.50

92002

920021138
ref: 92002

BOLT,6X30

€ 3.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92055

920551465
ref: 92055

RING-O,82.6X2.4

€ 4.00

92151

921511344
ref: 92151

BOLT

€ 1.50
