METER(S)
ZR1100D2 ZRX1100 1998 FRANCE NL NR SD

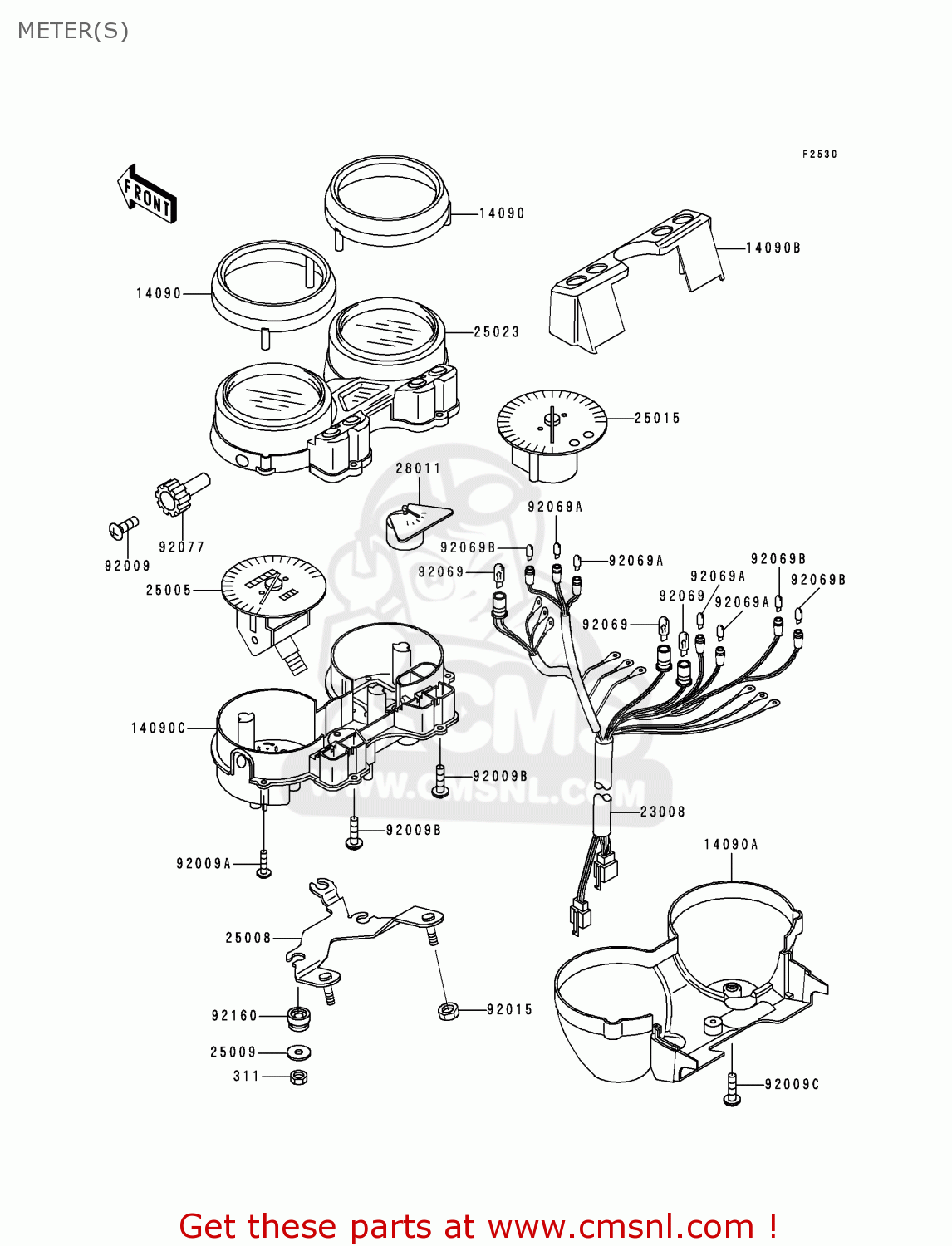

Meter(s) diagram ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
METER(S) ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14090
140901603
ref: 14090
COVER,SPEEDO&TACHOMET
€ 19.50
14090A
140901607
ref: 14090A
COVER,METER,LWR
€ 84.00
14090B
140901618
ref: 14090B
COVER,PILOT BOX,UPP
€ 63.00
14090C
140901842
ref: 14090C
COVER,METER HOUSING
€ 109.50
23008
230081583
ref: 23008
SOCKET-ASSY,METER
€ 127.00
25005
250051621
ref: 25005
SPEEDOMETER,KPH
€ 371.00
25008
250081213
ref: 25008
BRACKET-METER
€ 49.00
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
€ 2.50
25015
250151345
ref: 25015
TACHOMETER,X1000R/MIN
€ 429.00
25023
250231230
ref: 25023
COVER-METER CASE,UPP
€ 103.50
28011
280111160
ref: 28011
METER,FUEL
€ 121.00
92009
920091172
ref: 92009
SCREW,2X6,BLACK
€ 2.00
92009A
920091391
ref: 92009A
SCREW
€ 2.50
92009B
920091503
ref: 92009B
SCREW,TAPPING,4X14
€ 2.50
92009C
920091601
ref: 92009C
SCREW,TAPPING,4X16
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92069
920691059
ref: 92069
BULB,12V 1.7W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92069B
920691070
ref: 92069B
BULB,12V 1.7W
€ 3.00
92077
920771073
ref: 92077
KNOB,METER
€ 4.00
92160
921601178
ref: 92160
DAMPER
€ 3.50
