HEADLIGHT(S)
ZR1100D2 ZRX1100 1998 FRANCE NL NR SD

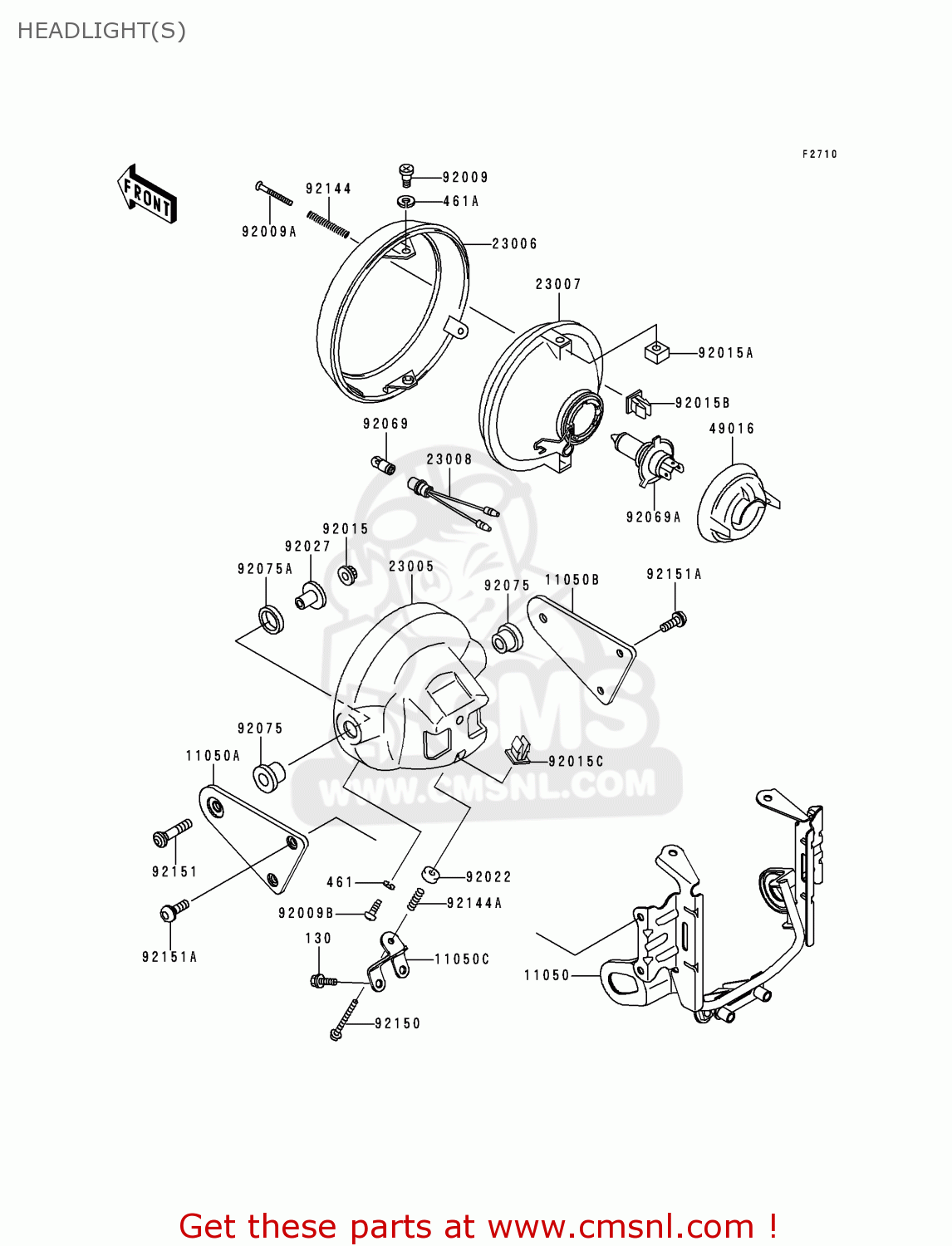

Headlight(s) diagram ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
HEADLIGHT(S) ZR1100D2 ZRX1100 1998 FRANCE NL NR SD
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
461A
461L0600
ref: 461A
WASHER-SPRING
€ 0.50
11050
110501099
ref: 11050
BRACKET,HEAD LAMP
€ 81.00
11050A
110501105
ref: 11050A
BRACKET,HEAD LAMP,LH
€ 49.00
11050B
110501106
ref: 11050B
BRACKET,HEAD LAMP,RH
€ 44.00
11050C
110501120
ref: 11050C
BRACKET,HEAD LAMP BOD
€ 13.50
23005
230051124T2
ref: 23005
BODY-COMP-HEAD LAMP,P
€ 164.00
23006
230061072
ref: 23006
RIM LAMP
€ 94.00
23007
230071278
ref: 23007
LENS-COMP,HEAD LAMP
€ 197.50
23008
230081497
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 15.00
49016
490161158
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92009
920091681
ref: 92009
SCREW,5MM
€ 2.50
92009A
920091682
ref: 92009A
SCREW,FOCUS ADJUSTING
€ 3.50
92009B
920091693
ref: 92009B
SCREW,5X16
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151877
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151878
ref: 92015B
NUT,SELF LOCK,4MM
€ 3.00
92015C
920151897
ref: 92015C
NUT,5MM
€ 3.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92144
921441645
ref: 92144
SPRING,FOCUS ADJUSTIN
€ 3.00
92144A
921441703
ref: 92144A
SPRING,FOCUS ADJUSTIN
€ 2.50
92150
921501627
ref: 92150
BOLT,ADJUST,5X53
€ 2.50
92151
921511205
ref: 92151
BOLT,SOCKET,8X37
€ 2.50
92151A
921511219
ref: 92151A
BOLT
€ 4.50
