REAR WHEEL/CHAIN

ZR1100C4 ZRX1100 2000 USA CANADA

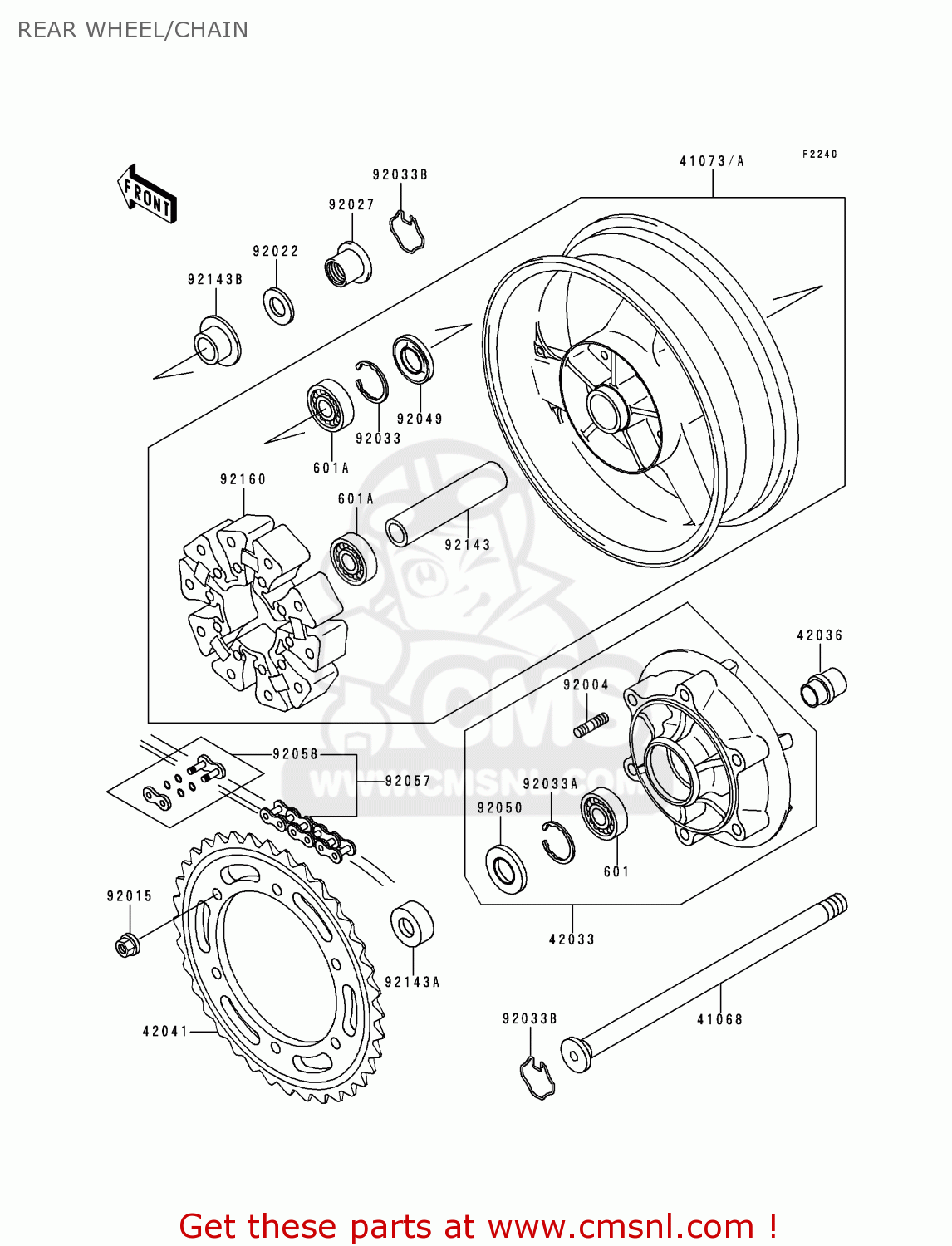

Rear wheel/chain diagram ZR1100C4 ZRX1100 2000 USA CANADA

REAR WHEEL/CHAIN ZR1100C4 ZRX1100 2000 USA CANADA
REAR WHEEL/CHAIN ZR1100C4 ZRX1100 2000 USA CANADA
REAR WHEEL/CHAIN ZR1100C4 ZRX1100 2000 USA CANADA
prices are in EUR
ref
part #
description
quantity
601
601B6206UU
ref: 601
BEARING-BALL,#6206UUC
601B6206UU
€ 41.00
601A
601B6304UU
ref: 601A
BEARING-BALL,#6304UUC
601B6304UU
€ 34.50
41068
410681354
ref: 41068
AXLE,RR
410681354
€ 89.00
41073A
410731645R2
ref: 41073A
WHEEL-ASSY,RR,BLACK
€ 674.50
42033
420331160EZ
ref: 42033
COUPLING-ASSY,RR HUB,
€ 241.00
42036
420361302
ref: 42036
SLEEVE,RR AXLE,L=45
420361302
€ 25.50
42041
420411283
ref: 42041
SPROCKET-HUB,45T
420411283
€ 53.00
92004
920041146
ref: 92004
STUD,10X24
920041146
€ 4.00
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92022
920221618
ref: 92022
WASHER,23X32X2.3
920221618
€ 4.00
92027
920271810
ref: 92027
COLLAR,RR AXLE,L=28
920271810
€ 21.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92033B
920331156
ref: 92033B
RING-SNAP,RR AXLE
920331156
€ 3.00
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92050
92050027
ref: 92050
OIL SEAL
92050027
€ 13.50
92057
920571469
ref: 92057
CHAIN,DRIVE,DID50ZV2X
€ 147.00
92058
920581077
ref: 92058
JOINT-CHAIN,DRIVE
920581077
€ 7.50
92143
921431390
ref: 92143
COLLAR,REAR AXLE,L=11
921431390
€ 28.50
92143A
921431914
ref: 92143A
COLLAR,RR AXLE,LH,L=1
€ 19.00
92143B
921431915
ref: 92143B
COLLAR,RR AXLE,RH,L=1
921431915
€ 21.50
92160
921601911
ref: 92160
DAMPER,SHOCK,RR HUB
921601911
€ 92.00
