RADIATOR
ZR1100C4 ZRX1100 2000 USA CANADA

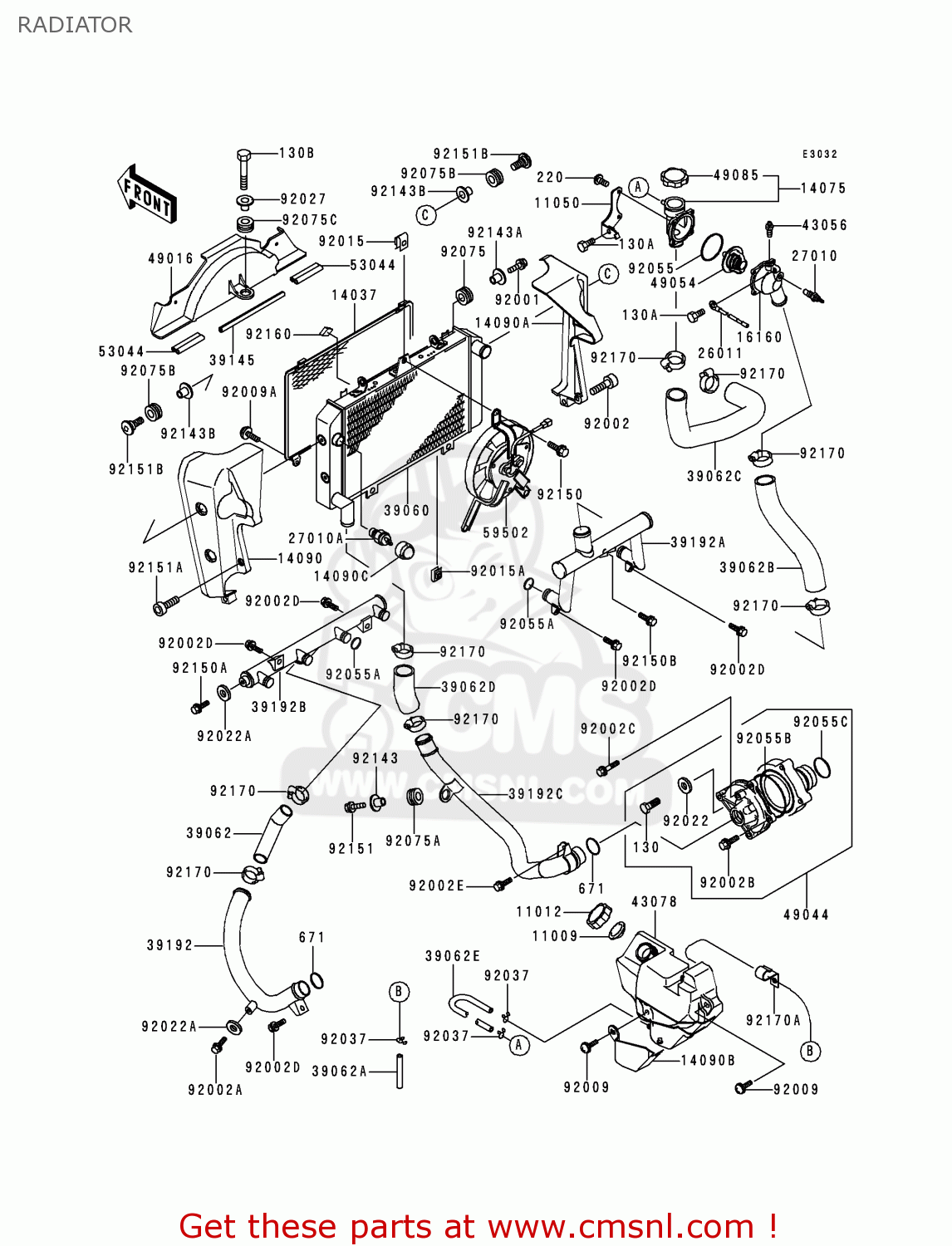

Radiator diagram ZR1100C4 ZRX1100 2000 USA CANADA
RADIATOR ZR1100C4 ZRX1100 2000 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11050
110501118
ref: 11050
BRACKET
€ 6.00
14037
140371235
ref: 14037
SCREEN,RADIATOR
€ 77.50
14075
140751068
ref: 14075
CAP-ASSY
€ 134.00
14090
140901773
ref: 14090
COVER,RADIATOR,LH
€ 116.50
14090A
140901774
ref: 14090A
COVER,RADIATOR,RH
€ 110.50
14090B
140901791
ref: 14090B
COVER,RESERVOIR
€ 17.00
14090C
140901830
ref: 14090C
COVER
€ 3.00
16160
161601117
ref: 16160
BODY,THERMOSTAT
€ 59.00
26011
260111590
ref: 26011
WIRE-LEAD,(-)
€ 4.00
27010
270101346
ref: 27010
SWITCH,SENSOR WATER
€ 85.00
27010A
270101372
ref: 27010A
SWITCH
€ 54.50
39060
390601170
ref: 39060
RADIATOR
€ 781.50
39062
390621276
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 24.50
39062A
390621533
ref: 39062A
HOSE-COOLING,OVERFLOW
€ 15.50
39062B
390621704
ref: 39062B
HOSE-COOLING
€ 20.00
39062C
390621705
ref: 39062C
HOSE-COOLING
€ 27.50
39062D
390621706
ref: 39062D
HOSE-COOLING
€ 12.00
39062E
390621714
ref: 39062E
HOSE-COOLING
€ 11.00
39145
391451055
ref: 39145
TRIM-SEAL,L=175
€ 8.50
39192
391921011
ref: 39192
PIPE-WATER,PUMP-CYLIN
€ 56.00
39192A
391921092
ref: 39192A
PIPE-WATER
€ 101.00
39192B
391921122
ref: 39192B
PIPE-WATER
€ 72.50
39192C
391921124
ref: 39192C
WATER PIPE
€ 72.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781155
ref: 43078
RESERVOIR
€ 42.50
49016
490161190
ref: 49016
COVER-SEAL
€ 23.50
49044
490441076
ref: 49044
PUMP-WATER
€ 252.50
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
53044
530441220
ref: 53044
TRIM
€ 4.50
59502
595021126
ref: 59502
FAN-ASSY
€ 613.50
92001
920011947
ref: 92001
BOLT,6X20
€ 3.00
92002
920021093
ref: 92002
BOLT,6X25
€ 3.00
92002A
920021099
ref: 92002A
BOLT,6X16
€ 1.50
92002B
920021392
ref: 92002B
BOLT,6X22
€ 3.00
92002C
920021566
ref: 92002C
BOLT,6X40
€ 3.00
92002D
920021569
ref: 92002D
BOLT,6X12
€ 2.50
92002E
920021571
ref: 92002E
BOLT,6X16
€ 4.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
€ 1.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
€ 2.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92009
920091181
ref: 92009
SCREW,6X18
€ 2.00
92009A
920091842
ref: 92009A
SCREW
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551282
ref: 92055A
RING-O
€ 3.00
92055B
920551423
ref: 92055B
RING-O,WATER PUMP INS
€ 6.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
€ 4.00
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751185
ref: 92075A
DAMPER RUBBER
€ 3.00
92075B
920751634
ref: 92075B
DAMPER
€ 3.00
92075C
920751690
ref: 92075C
DAMPER,10X24X12
€ 3.00
92143
921431016
ref: 92143
COLLAR,L=9.6
€ 4.00
92143A
921431353
ref: 92143A
COLLAR
€ 5.50
92143B
921431962
ref: 92143B
COLLAR
€ 4.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501826
ref: 92150A
BOLT,6X12
€ 2.50
92150B
921501841
ref: 92150B
BOLT,6X12
€ 3.50
92151
921511207
ref: 92151
BOLT,6X18
€ 2.50
92151A
921511210
ref: 92151A
BOLT,SOCKET,6X18
€ 2.50
92151B
921511265
ref: 92151B
BOLT,6X22
€ 4.50
92160
921601863
ref: 92160
DAMPER
€ 3.00
92170
921701284
ref: 92170
CLAMP,CABLE
€ 7.50
92170A
921701767
ref: 92170A
CLAMP
€ 4.50
