HEADLIGHT(S)
ZR1100C4 ZRX1100 2000 USA CANADA

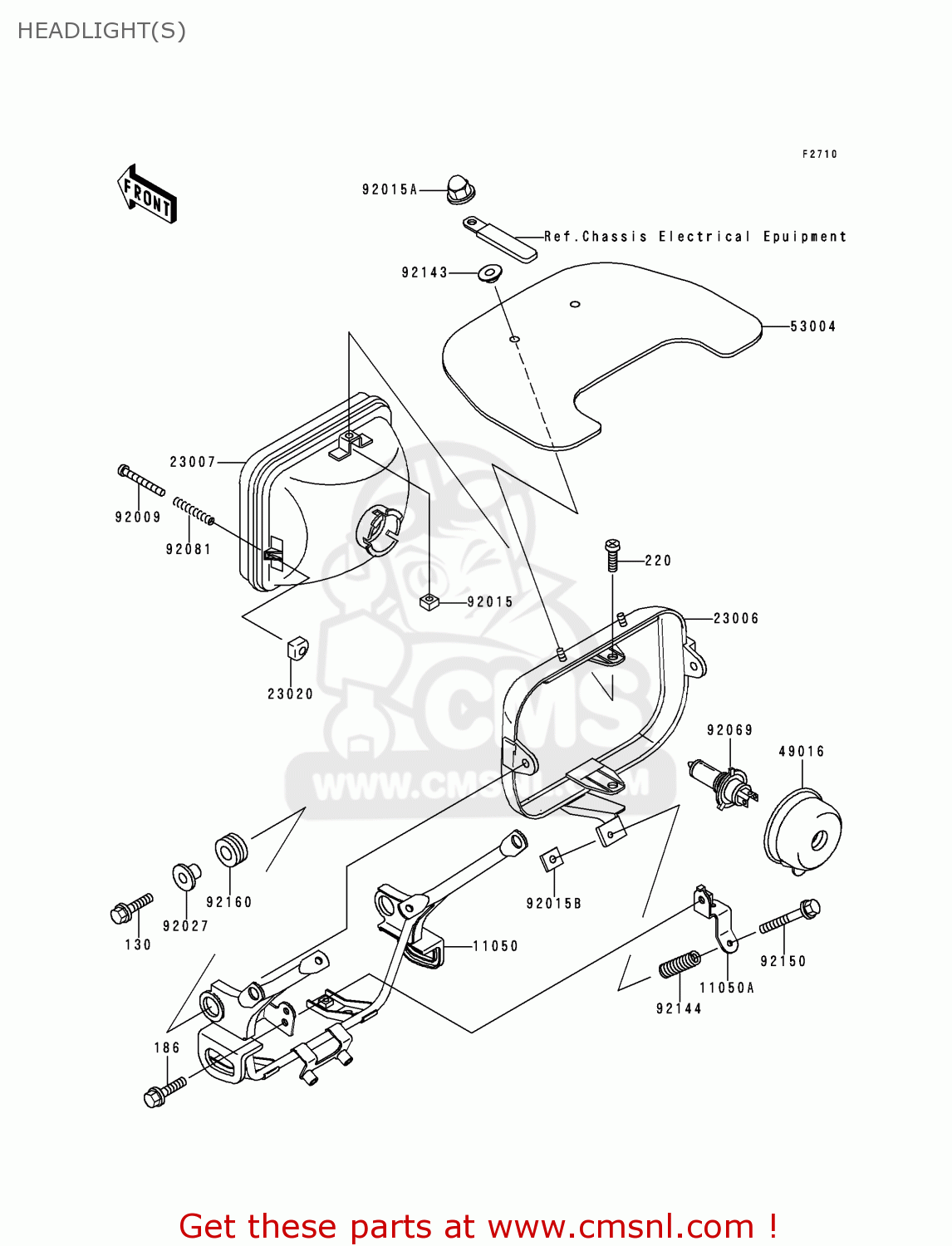

Headlight(s) diagram ZR1100C4 ZRX1100 2000 USA CANADA
HEADLIGHT(S) ZR1100C4 ZRX1100 2000 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
€ 2.00
186
186J0612
ref: 186
BOLT-UPSET-WP
€ 2.00
220
220D0512
ref: 220
SCREW-PAN-CROS,5X12
€ 0.50
11050
110501087
ref: 11050
BRACKET,HEAD LAMP
€ 90.50
11050A
110501119
ref: 11050A
BRACKET,HEAD LAMP BOD
€ 7.00
23006
230061068
ref: 23006
RIM-LAMP
€ 98.00
23007
230071321
ref: 23007
LENS-COMP,HEAD LAMP
€ 134.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
53004
530041117
ref: 53004
MAT,HEAD LAMP
€ 27.00
92009
920091047
ref: 92009
SCREW,HEAD LAMP LENS
€ 3.00
92015
920151157
ref: 92015
NUT,5MM
€ 3.50
92015A
920151170
ref: 92015A
NUT,CAP 6MM,BLACK
€ 0.50
92015B
920151799
ref: 92015B
NUT,5MM,FOCUS ADJUST
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
92143
921431087
ref: 92143
COLLAR
€ 2.50
92144
921441417
ref: 92144
SPRING
€ 3.00
92150
921501590
ref: 92150
BOLT,ADJUST,5X45
€ 4.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
