CARBURETOR
ZR1100C4 ZRX1100 2000 USA CANADA

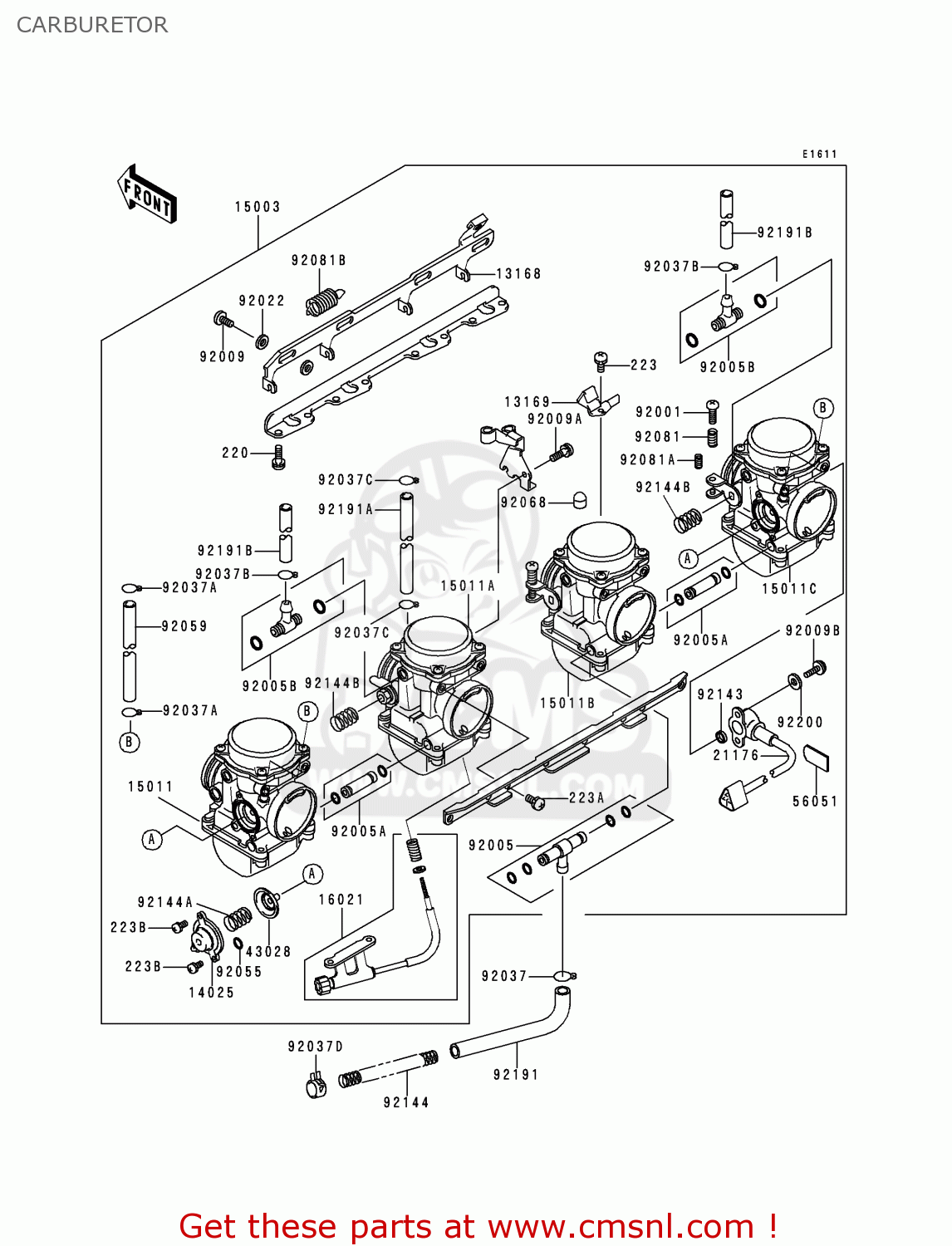

Carburetor diagram ZR1100C4 ZRX1100 2000 USA CANADA
CARBURETOR ZR1100C4 ZRX1100 2000 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691871
ref: 13169
PLATE,STARTER CABLE
€ 16.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
€ 43.00
15003
150031460
ref: 15003
CARBURETOR ASSEMBLY
€ 969.00
15011
150111615
ref: 15011
CARBURETOR,OUTSIDE,LH
€ 415.00
15011A
150111616
ref: 15011A
CARBURETOR,INSIDE,LH
€ 415.00
15011B
150111617
ref: 15011B
CARBURETOR,INSIDE,RH
€ 415.00
15011C
150111618
ref: 15011C
CARBURETOR,OUTSIDE,RH
€ 415.00
16021
160211204
ref: 16021
SCREW-THROTTLE STOP
€ 62.50
21176
211761073
ref: 21176
SENSOR
€ 402.00
43028
430281084
ref: 43028
DIAPHRAGM,4.9MM,AIR C
€ 66.50
56051
560511480
ref: 56051
MARK,K-TRIC
€ 14.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051288
ref: 92005
FITTING
€ 22.00
92005A
920051310
ref: 92005A
FITTING
€ 25.00
92005B
920051314
ref: 92005B
FITTING
€ 31.50
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091781
ref: 92009B
SCREW
€ 1.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371104
ref: 92037
CLAMP,HOSE
€ 1.00
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371185
ref: 92037B
CLAMP,FUEL TAP HOSE
€ 3.50
92037C
920371201
ref: 92037C
CLAMP
€ 3.00
92037D
920372082
ref: 92037D
CLAMP
€ 1.00
92055
920551245
ref: 92055
RING-O
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811762
ref: 92081B
SPRING,STARTER LEVER
€ 14.00
92143
921431907
ref: 92143
COLLAR
€ 6.00
92144
921441874
ref: 92144
SPRING
€ 4.50
92144A
921441885
ref: 92144A
SPRING
€ 7.50
92144B
921441986
ref: 92144B
SPRING,THROTTLE ADJUS
€ 3.50
92191
921911007
ref: 92191
TUBE,FUEL
€ 8.50
92191A
921911017
ref: 92191A
TUBE
€ 7.00
92191B
921911118
ref: 92191B
TUBE,AIR VENT
€ 24.00
92200
922001369
ref: 92200
WASHER
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
