OIL COOLER

ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

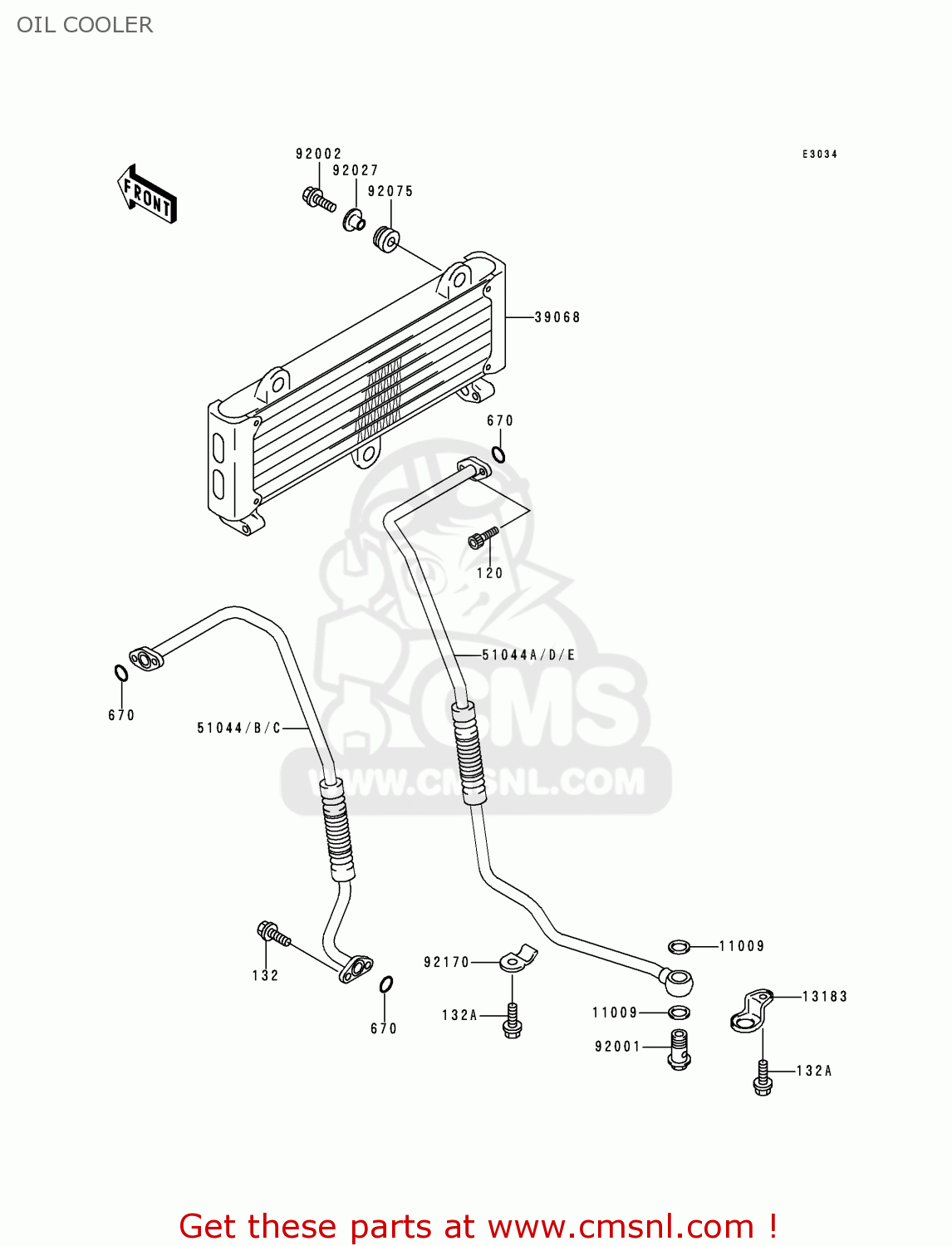

Oil cooler diagram ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

120

120S0625
ref: 120

BOLT-SOCKET,6X25,BLAC

€ 1.00

132

132E0616
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132H0612
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00

11009

110091461
ref: 11009

GASKET,14X19.5X1.4 (NAS)

€ 3.50

13183

131831862
ref: 13183

PLATE,LOCK

€ 3.50

39068

390681057
ref: 39068

COOLER-ASSY-OIL

€ 480.50

51044

510441142
ref: 51044

TUBE-ASSY,LH

€ 183.50

51044A

510441143
ref: 51044A

TUBE-ASSY,RH

€ 183.50

51044C

510441166
ref: 51044C

TUBE-ASSY,LH

€ 205.00

51044E

510441167
ref: 51044E

TUBE-ASSY,RH

€ 205.00

92001

920011930
ref: 92001

BOLT,14X28.5

€ 6.50

92002

920021068
ref: 92002

BOLT,6X22

€ 2.50

92027

920271651
ref: 92027

COLLAR

€ 2.50

92075

92075277
ref: 92075

DAMPER

€ 1.00

92170

921701295
ref: 92170

CLAMP

€ 3.50

OIL COOLER

all assemblies
