CARBURETOR PARTS

ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

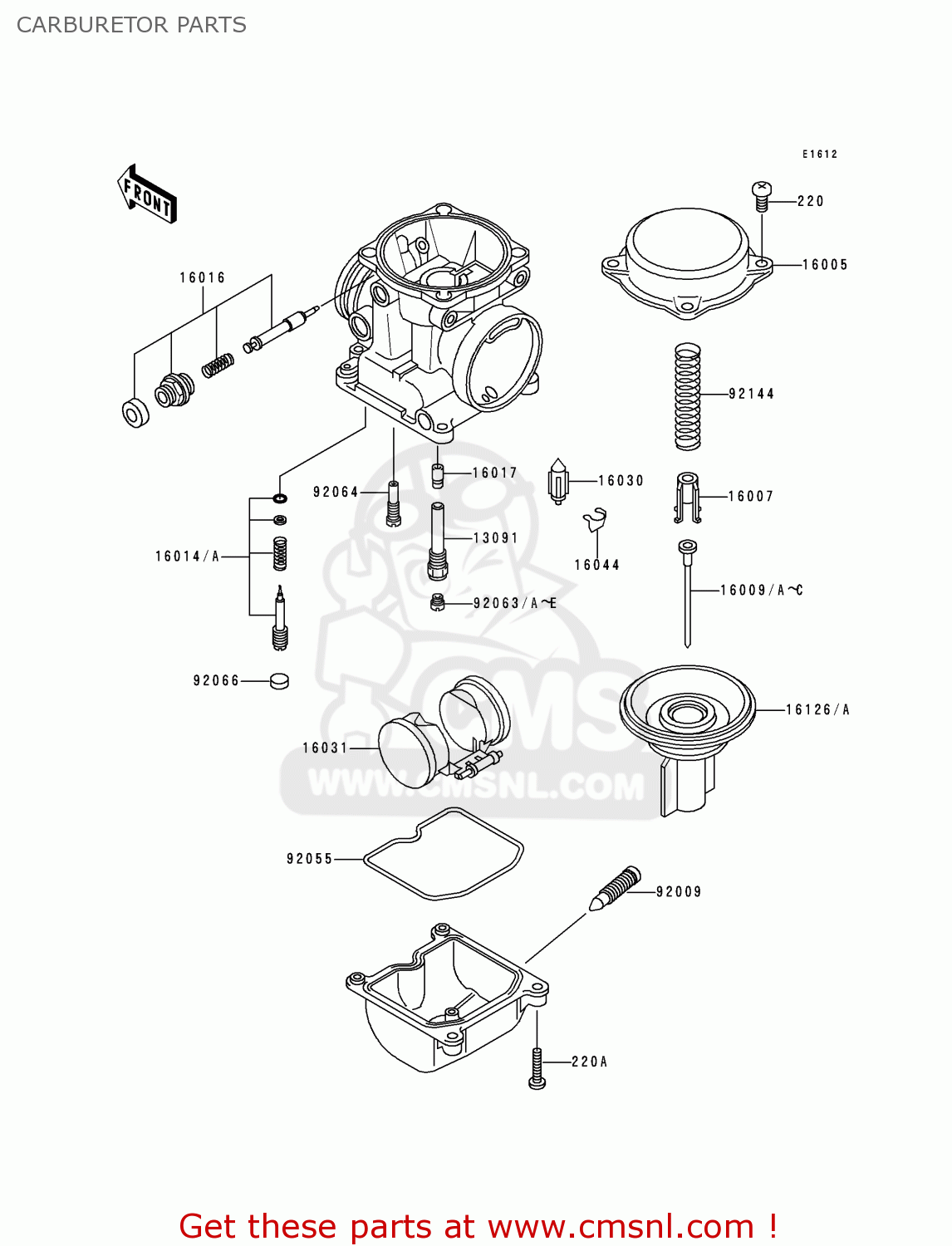

Carburetor parts diagram ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

CARBURETOR PARTS ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CARBURETOR PARTS ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
13091
130911804
ref: 13091
HOLDER,NEEDLE JET
130911804
€ 21.00
16005
160051065
ref: 16005
TOP-CHAMBER,MIXING
160051065
€ 47.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091726
ref: 16009
AREUFGFRGRITNRSPUK
NEEDLE-JET,N96M
160091726
€ 18.00
16009A
160091806
ref: 16009A
ST
NEEDLE-JET,N1VD
€ 20.00
16009B
160091807
ref: 16009B
SD
NEEDLE-JET,N1VE
160091807
€ 20.00
16009C
160091807
ref: 16009C
AREUFGFRGRITNRSPSTUK
NEEDLE-JET,N1VE
160091807
€ 20.00
16014A
160141081
ref: 16014A
SCREW-PILOT AIR
160141081
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
160161090
€ 46.50
16017
160171362
ref: 16017
JET-NEEDLE
160171362
€ 38.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311077
ref: 16031
FLOAT
160311077
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261163
ref: 16126
AREUFGFRGRITNRSPSTUK
VALVE,VACUUM
161261163
€ 157.50
16126A
161261268
ref: 16126A
SD
VALVE,VACUUM
€ 137.50
92009
920091551
ref: 92009
SCREW,DRAIN
920091551
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631001
ref: 92063
JET-MAIN,#95
920631001
€ 10.00
92063A
920631004
ref: 92063A
JET-MAIN,#92
920631004
€ 10.00
92063B
920631005
ref: 92063B
JET-MAIN,#98
920631005
€ 10.00
92063C
920631008
ref: 92063C
JET-MAIN,#100
920631008
€ 9.00
92063D
920631009
ref: 92063D
JET-MAIN,#105
920631009
€ 10.00
92063E
920631115
ref: 92063E
JET-MAIN,#102
920631115
€ 10.00
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
ST
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
220D0414
€ 2.00
92144
921441670
ref: 92144
SPRING,VACUUM VALVE
921441670
€ 8.50
