GEAR CHANGE MECHANISM

ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

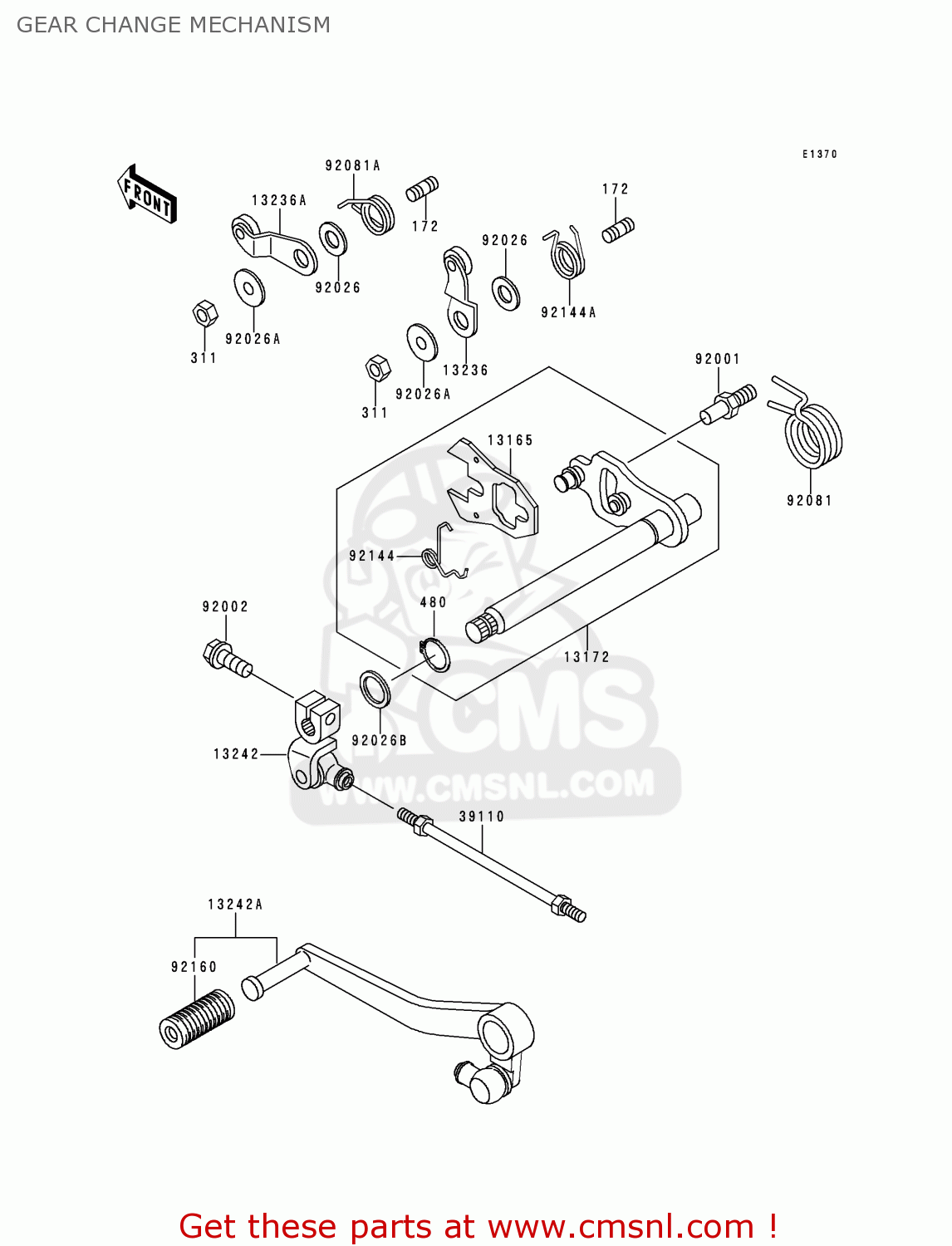

Gear change mechanism diagram ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13172

131721073
ref: 13172

SHAFT-ASSY-CHANGE

€ 65.00

13236

132361143
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 6.00

13236A

132361144
ref: 13236A

LEVER-COMP,GEAR POSIT

€ 6.00

13242

132421299
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 29.50

13242A

132421300
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 61.00

39110

391101102
ref: 39110

ROD-ASSY-TIE

€ 7.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92026B

920261532
ref: 92026B

SPACER

€ 3.00

92081

920811869
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.00

92081A

920811942
ref: 92081A

SPRING,GEAR LEVER

€ 2.50

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441762
ref: 92144A

SPRING,NEUTRAL LEVER

€ 3.00

92160

921601036
ref: 92160

DAMPER,CHANGE PEDAL

€ 3.50
