CYLINDER/PISTON(S)

ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

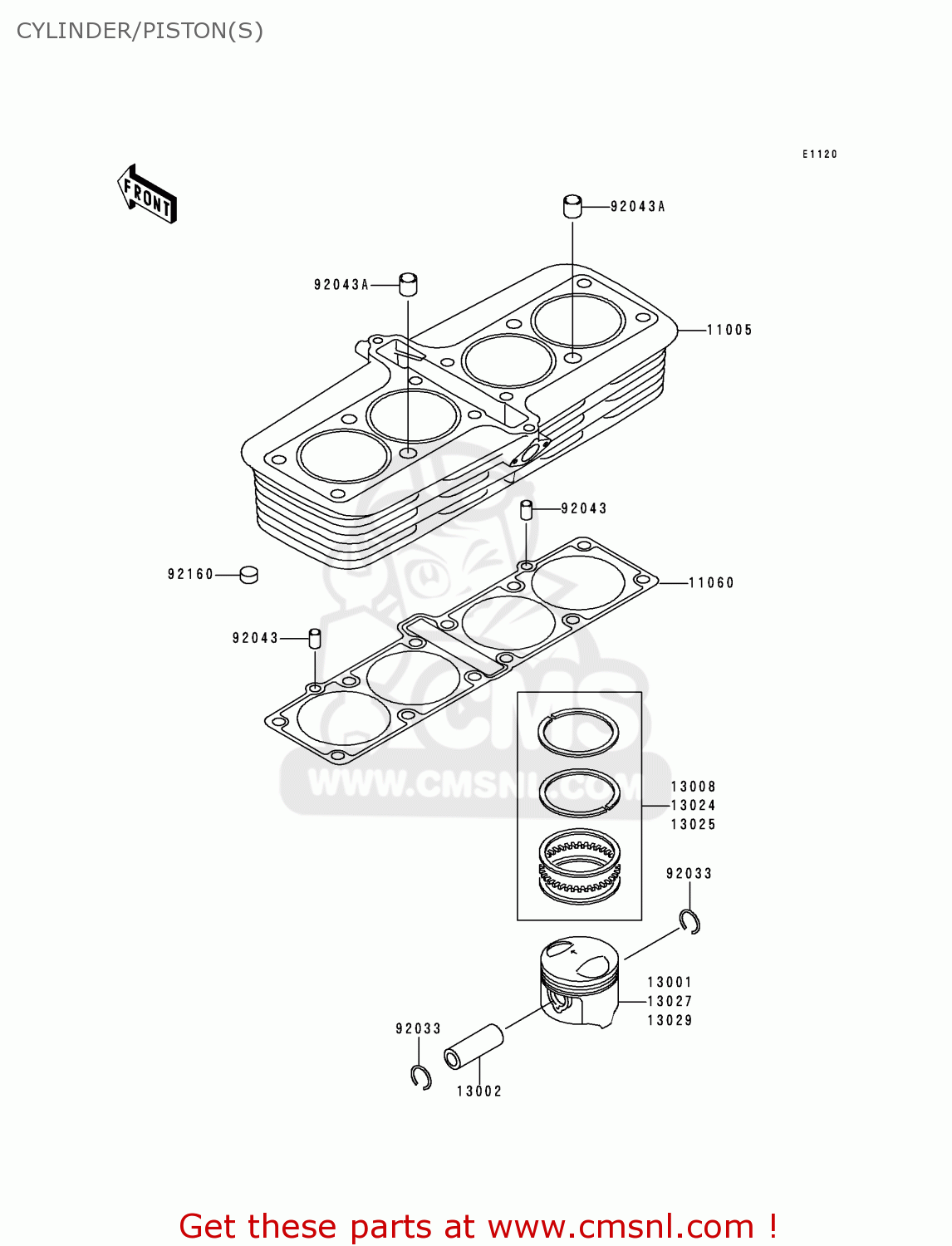

Cylinder/piston(s) diagram ZR1100A1 ZEPHYR 1100 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11005

110051678
ref: 11005

CYLINDER-ENGINE

€ 1,416.50

11060

110601264
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 30.50

13001

130011378
ref: 13001

PISTON-ENGINE,STD

€ 76.00

13002

130021086
ref: 13002

PIN-PISTON

€ 19.50

13008

130081143
ref: 13008

RING-SET-PISTON,STD

€ 60.50

13024

130241091
ref: 13024

RING-SET-PISTON LL,O/

€ 71.50

13025

130251115
ref: 13025

RING-SET-PISTON L,O/S

€ 71.50

13027

130271168
ref: 13027

PISTON-ENGINE LL,O/S

€ 102.50

13029

130291212
ref: 13029

PISTON-ENGINE L,O/S 0

€ 108.00

92033

920331182
ref: 92033

RING-SNAP

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920431279
ref: 92043A

PIN,11.5X14X14

€ 3.00

92160

921601388
ref: 92160

DAMPER

€ 3.00
