METERS
ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD

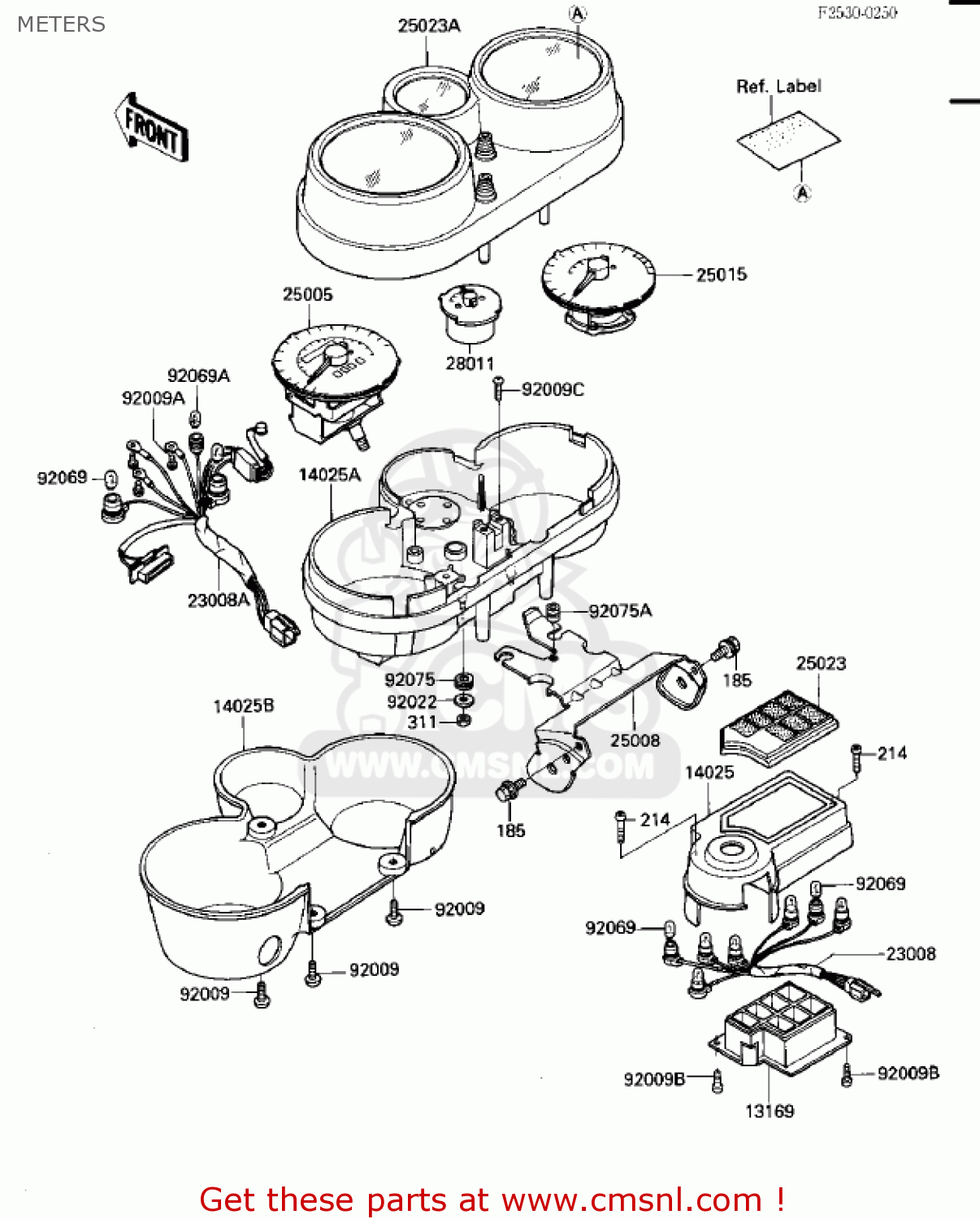

Meters diagram ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
METERS ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
×
prices are in EUR
ref
part #
description
quantity
13169
131691824
ref: 13169
PLATE, PILOT LAMP
€ 14.50
14025
140251867
ref: 14025
COVER, PILOT LAMP
€ 46.50
14025A
140251883
ref: 14025A
COVER, METER HOUSING
€ 39.50
14025B
140251884
ref: 14025B
COVER,METER CASE,LWR
€ 94.00
23008
230081228
ref: 23008
PILOT LAMP SOCKET ASSEMBLY
€ 44.00
23008A
230081234
ref: 23008A
METER SOCKET ASSEMBLY
€ 86.00
25005
250051281
ref: 25005
SPEEDOMETER,MPH
€ 251.00
25008
250081110
ref: 25008
METER BRACKET
€ 47.50
25015
250151225
ref: 25015
TACHOMETER, (X1000RPM
€ 286.00
25023
250231115
ref: 25023
COVER-METER CASE,PILO
€ 21.00
25023A
250231118
ref: 25023A
COVER-METER CASE,UPP
€ 134.00
28011
280111064
ref: 28011
METER,FUEL
€ 67.50
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091293
ref: 92009A
SCREW,3X22
€ 2.50
92009B
920091326
ref: 92009B
SCREW,3X12
€ 2.50
92009C
920091330
ref: 92009C
SCREW,TAPPING,2.6X12
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92075A
920751627
ref: 92075A
DAMPER,METER BRACKET
€ 3.50
185
185C0816
ref: 185
BOLT-UPSET-WSP-SMALL
€ 3.00
214
214C0416
ref: 214
SCREW-PAN+-
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
