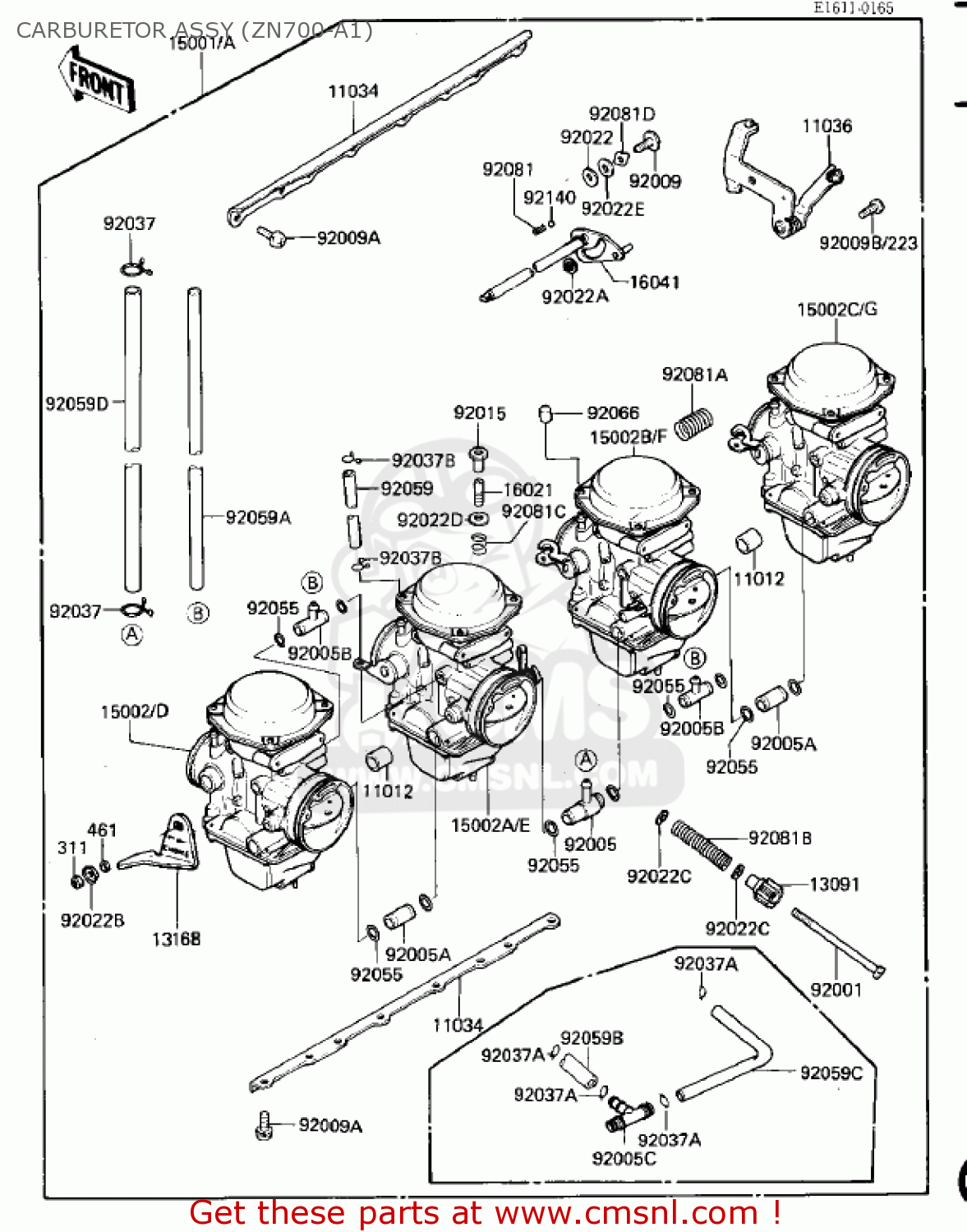

CARBURETOR ASSY (ZN700-A1)

ref

part #

description

quantity

11012

110121130
ref: 11012

TUBE,DUST SEAL

€ 2.00

11034

110341800
ref: 11034

PLATE,CARBURETOR STAY

€ 39.50

11036

110361254
ref: 11036

BRACKET-A,THROTTLE CA

€ 12.00

13091

130911078
ref: 13091

HOLDER,ADJUST

€ 9.00

13168

131681065
ref: 13168

LEVER,CHOKE

€ 8.50

15001

150011090
ref: 15001
US

CARBURETOR ASSEMBLY

€ 940.50

15001A

150011091
ref: 15001A
CA

CARBURETOR ASSEMBLY

€ 853.50

15002

150021106
ref: 15002
US

CARBURETOR,OUTSIDE,LH

€ 239.00

15002A

150021107
ref: 15002A
US

CARBURETOR,INSIDE,LH

€ 260.50

15002B

150021108
ref: 15002B
US

CARBURETOR,INSIDE,RH

€ 223.50

15002C

150021109
ref: 15002C
US

CARBURETOR,OUTSIDE,RH

€ 239.00

15002D

150021110
ref: 15002D
CA

CARBURETOR,OUTSIDE,LH

€ 239.00

15002E

150021111
ref: 15002E
CA

CARBURETOR,INSIDE,LH

€ 260.50

15002F

150021112
ref: 15002F
CA

CARBURETOR,INSIDE,RH

€ 239.00

15002G

150021113
ref: 15002G
CA

CARBURETOR,OUTSIDE,RH

€ 239.00

16021

160211027
ref: 16021

SCREW,SLOTTED

€ 12.00

16041

160411028
ref: 16041

CHOKE LINK SHAFT

€ 26.50

92001

920011328
ref: 92001

BOLT,HEX HEAD,5X70

€ 6.50

92005

920051026
ref: 92005

FITTING,FUEL TUBE

€ 28.00

92005A

920051027
ref: 92005A

NIPPLE,FUEL

€ 10.50

92005B

920051054
ref: 92005B

AIR VENT FITTING

€ 9.50

92005C

920051135
ref: 92005C
CA

FITTING,T-TYPE

€ 17.50

92009

920091096
ref: 92009

SCREW,LINK SHAFT

€ 6.00

92009A

920091129
ref: 92009A

SCREW,6X16

€ 3.00

92009B

920091370
ref: 92009B
CA

UNAVAILABLE IN PRICE BOOK

€ 0.00

92015

920151118
ref: 92015

NUT,5MM

€ 4.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221200
ref: 92022A

WASHER,6.4X9.4X0.8,PO

€ 2.00

92022B

920221201
ref: 92022B

WASHER,LOCK,5M/M

€ 2.00

92022C

920221203
ref: 92022C

WASHER

€ 2.50

92022D

920221204
ref: 92022D

WASHER

€ 2.00

92022E

920221207
ref: 92022E

WASHER,6.5X11X1.2,STE

€ 2.50

92037

920371075
ref: 92037

CLAMP,FUEL INLET TUBE

€ 2.50

92037A

920371682
ref: 92037A
CA

CLAMP,TUBE

€ 4.00

92037B

920371470
ref: 92037B

CLAMP,TUBE

€ 3.00

92055

920551004
ref: 92055

O RING

€ 2.50

92059

920591201
ref: 92059

TUBE,5X9X160

€ 14.50

92059A

920591203
ref: 92059A
US

TUBE,6.5X9.5X350

€ 12.50

92059B

920591476
ref: 92059B
CA

TUBE,7X11X100

€ 13.00

92059C

920591477
ref: 92059C
CA

TUBE,7X11X200

€ 8.00

92059D

920591487
ref: 92059D

TUBE,7.3X12.5X240

€ 25.00

92066

92068006
ref: 92066
US

RUBBER PLUG

€ 2.50

92081

920811249
ref: 92081

SPRING

€ 4.00

92081A

920811250
ref: 92081A

SPRING

€ 3.50

92081B

920811251
ref: 92081B

SPRING

€ 3.00

92081C

920811252
ref: 92081C

SPRING

€ 2.50

92081D

920811262
ref: 92081D

SPRING,WAVED WASHER

€ 3.00

92140

921401004
ref: 92140

BALL,STEEL,3/16"

€ 1.50

223

223B0520
ref: 223
US

SCREW-PAN-WS-CROS,5X2

€ 1.50

311

311C0500
ref: 311

NUT-HEX

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

all assemblies
