HEADLIGHT
ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD

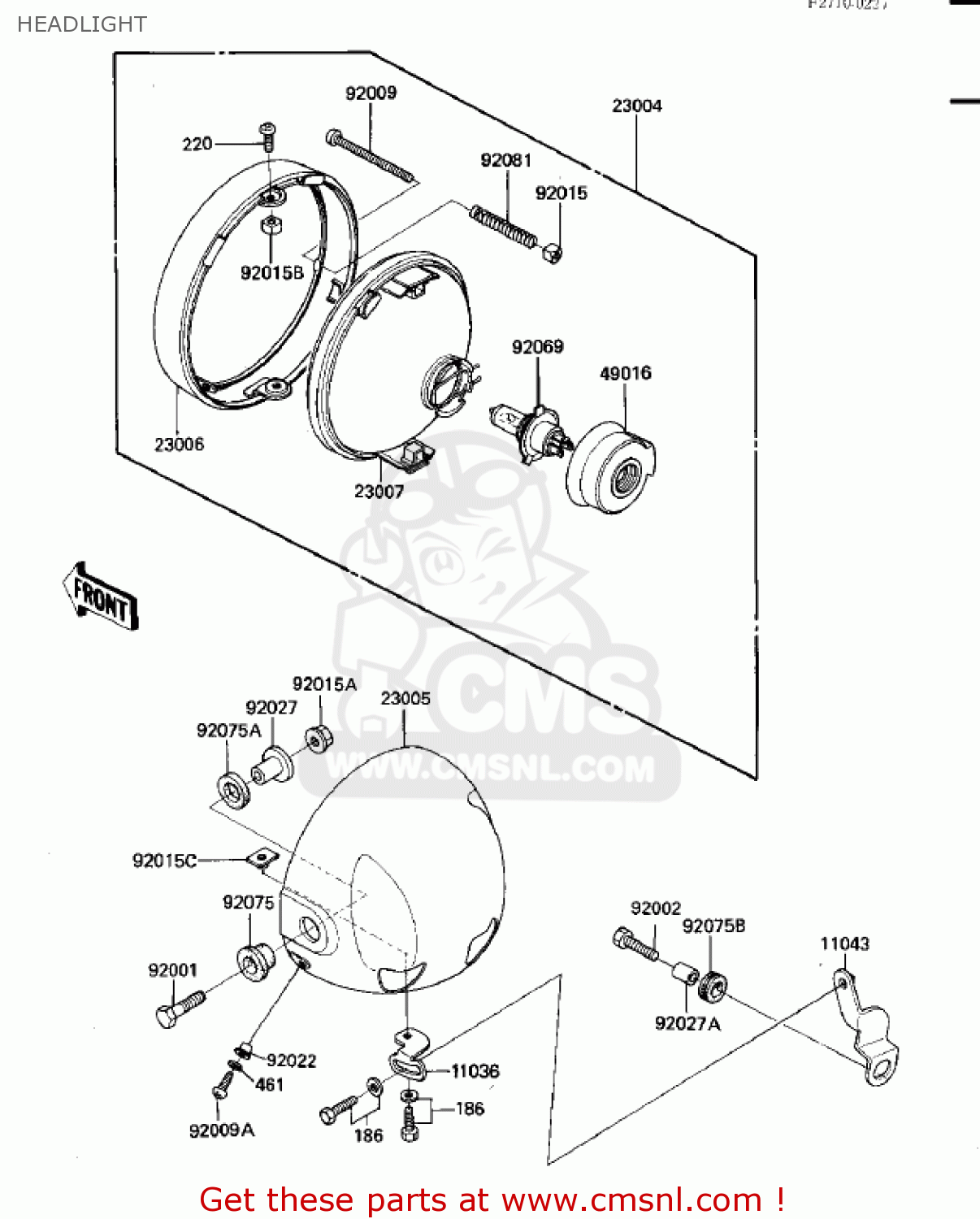

Headlight diagram ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
HEADLIGHT ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
×
prices are in EUR
ref
part #
description
quantity
11036
110361649
ref: 11036
BRACKET-A,HEAD LAMP
€ 4.50
11043
110431573
ref: 11043
HEADLAMP BRACKET
€ 6.50
23004
230041171
ref: 23004
LAMP-HEAD
€ 515.50
23005
230051053
ref: 23005
BODY-COMP-HEAD LAMP,C
€ 108.00
23006
230061055
ref: 23006
RIM-LAMP
€ 55.00
23007
230071115
ref: 23007
LENS-COMP
€ 124.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
92011024
ref: 92009A
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92022
23021010
ref: 92022
WASHER
€ 2.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
€ 3.00
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
