Genuine ZN Kawasaki Parts delivered quickly!


CARBURETOR PARTS

ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD

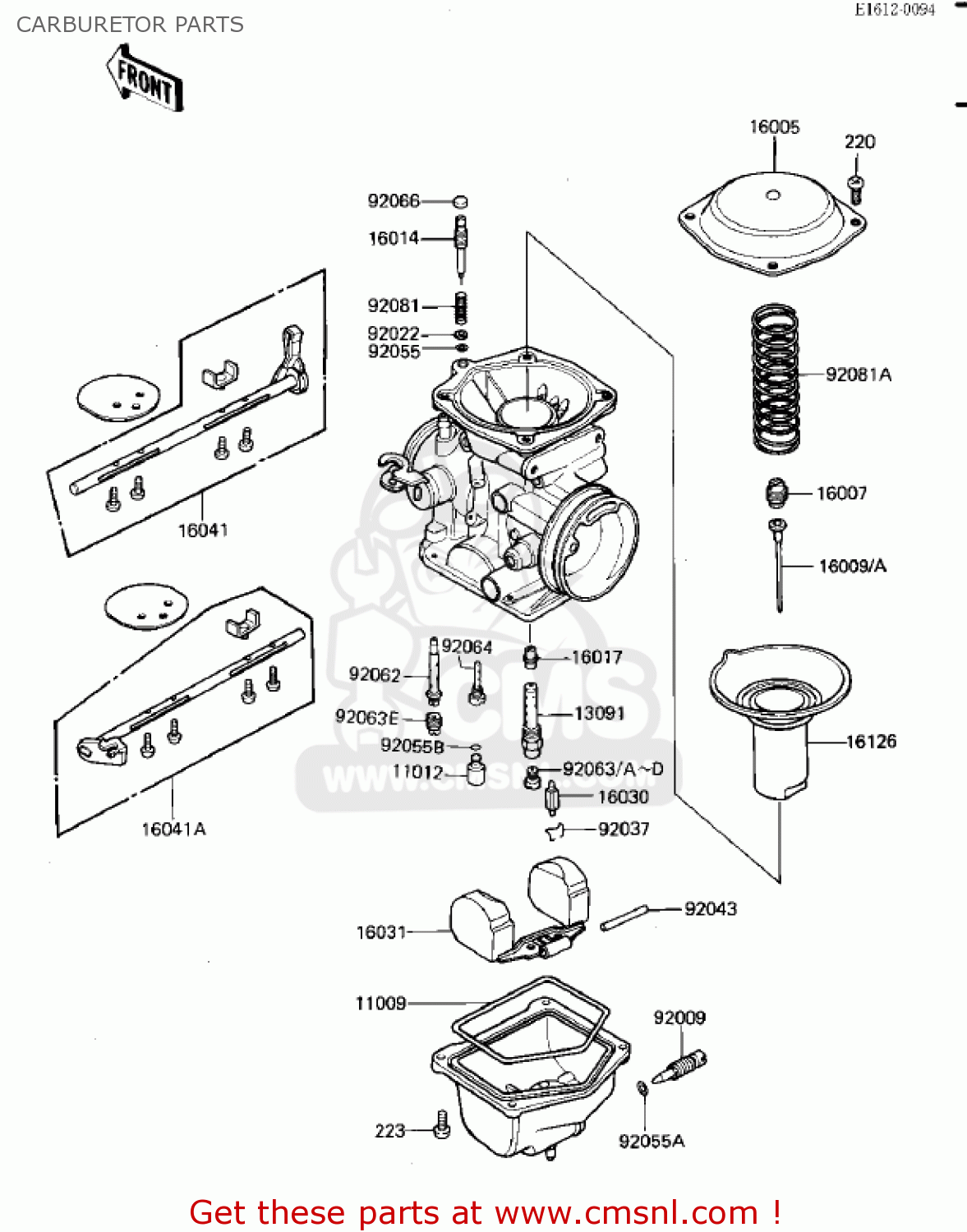

Carburetor parts diagram ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD

CARBURETOR PARTS ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
CARBURETOR PARTS ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
CARBURETOR PARTS ZN700A2 SHAFT 1985 USA CALIFORNIA / LTD
prices are in EUR
ref
part #
description
quantity
11009
16019024
ref: 11009
O RING,FLOAT CHAMBER
16019024
€ 15.00
11012
110121128
ref: 11012
CAP,POLYACETAL
110121128
€ 13.50
13091
130911331
ref: 13091
NEEDLE JET HOLDER
€ 15.50
16005
160051012
ref: 16005
TOP-CHAMBER,MIXING
160051012
€ 24.00
16007
160071022
ref: 16007
SEAT-SPRING,THROTTLE
160071022
€ 8.00
16009
160091240
ref: 16009
US
JET,NEEDLE,#N10D
€ 18.50
16009A
160091249
ref: 16009A
CA
JET,NEEDLE,#N10DE
€ 18.50
16014
160141011
ref: 16014
SCREW-PILOT AIR
160141011
€ 9.00
16017
160171059
ref: 16017
JET-NEEDLE
160171059
€ 33.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311023
ref: 16031
FLOAT
160311023
€ 31.00
16041
160411022
ref: 16041
SHAFT,CHOKE,LH
160411022
€ 53.50
16041A
160411023
ref: 16041A
SHAFT,CHOKE,R.H
160411023
€ 41.50
16126
161261057
ref: 16126
VALVE,VACUUM
161261057
€ 126.00
92009
920091095
ref: 92009
SCREW,DRAIN
920091095
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
92037007
ref: 92037
UNAVAILABLE IN PRICE BOOK
€ 0.00
92043
920431002
ref: 92043
PIN,FLOAT
920431002
€ 3.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551088
ref: 92055B
RING-O
920551088
€ 12.50
92062
920621021
ref: 92062
NOZZLE,MAIN
€ 21.00
92063
920631001
ref: 92063
(RACING USE ONLY)
JET-MAIN,#95
920631001
€ 10.00
92063A
920631003
ref: 92063A
(RACING USE ONLY)
MAIN JET, 2ND, # 90
920631003
€ 9.50
92063B
920631004
ref: 92063B
JET-MAIN,#92
920631004
€ 10.00
92063C
920631005
ref: 92063C
(RACING USE ONLY)
JET-MAIN,#98
920631005
€ 10.00
92063D
920631024
ref: 92063D
(RACING USE ONLY)
JET-MAIN,#88
920631024
€ 10.00
92063E
920631050
ref: 92063E
JET-MAIN,PRI,#68
920631050
€ 10.00
92064
920641001
ref: 92064
JET-PILOT,#35
920641001
€ 14.00
92066
920661051
ref: 92066
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811479
ref: 92081A
VACUUM VALVE SPRING
€ 12.00
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
223
223C0412
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
