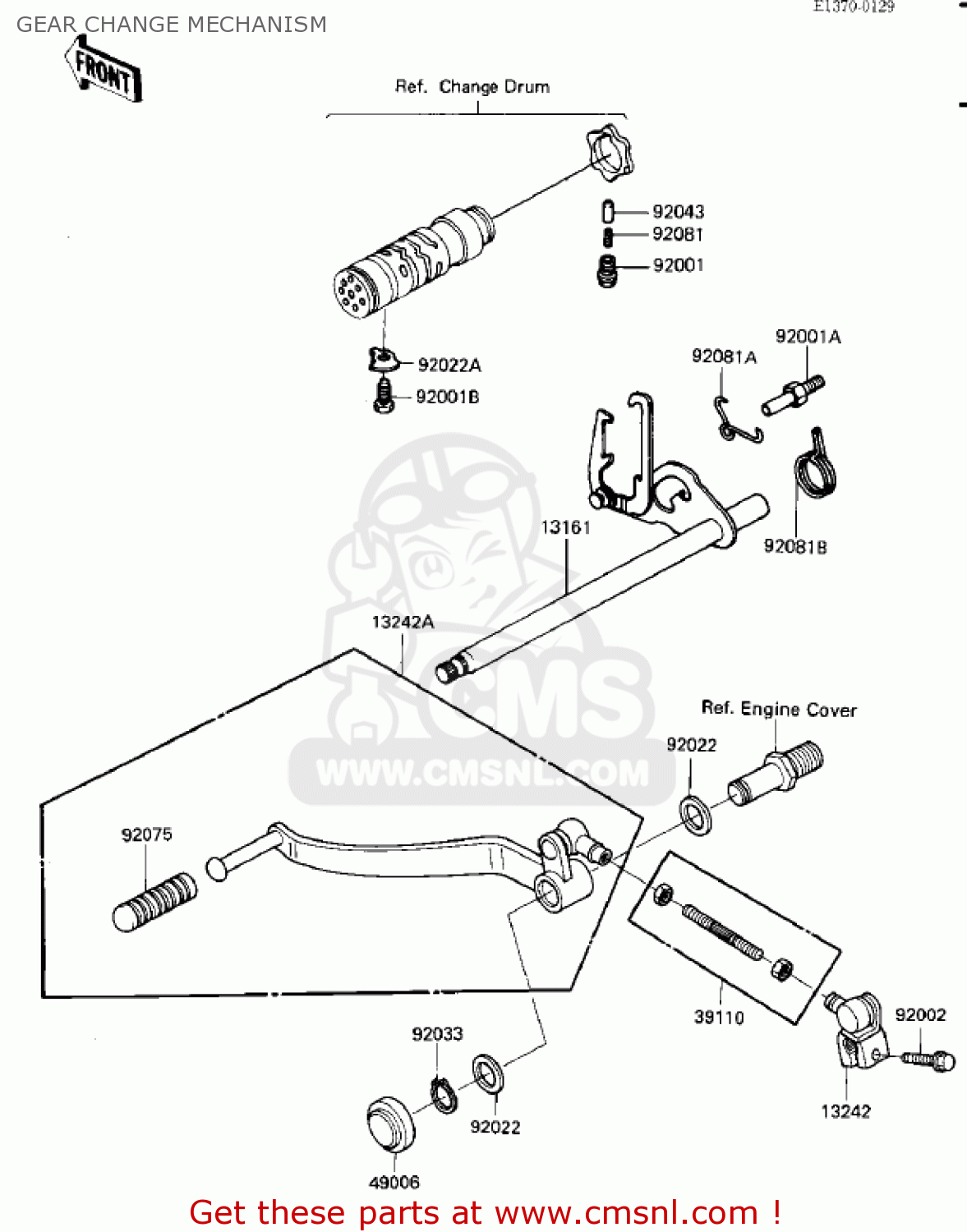

GEAR CHANGE MECHANISM

ref

part #

description

quantity

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421062
ref: 13242

LEVER-ASSY-CHANGE

€ 26.00

13242A

132421179
ref: 13242A

LEVER-ASSY-CHANGE

€ 28.00

39110

391101054
ref: 39110

ROD-ASSY-TIE,CHANGE L

€ 7.50

49006

490061061
ref: 49006

BOOT,CHANGE LEVER

€ 6.00

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011401
ref: 92001A

BOLT,RETURN SPRING

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92022

920221593
ref: 92022

WASHER,12.5X22X1.2

€ 3.00

92022A

92024074
ref: 92022A

WASHER,LOCK,10MM

€ 2.50

92033

920331178
ref: 92033

RING-SNAP,TYPE-E,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92075

921601036
ref: 92075

DAMPER,CHANGE PEDAL

€ 3.50

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92083018
ref: 92081A

SPRING-KICK PAWL

€ 6.00

92081B

92083028
ref: 92081B

SPRING,CHG PEDL RTRN

€ 9.50

all assemblies
