FRAME FITTINGS

ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD

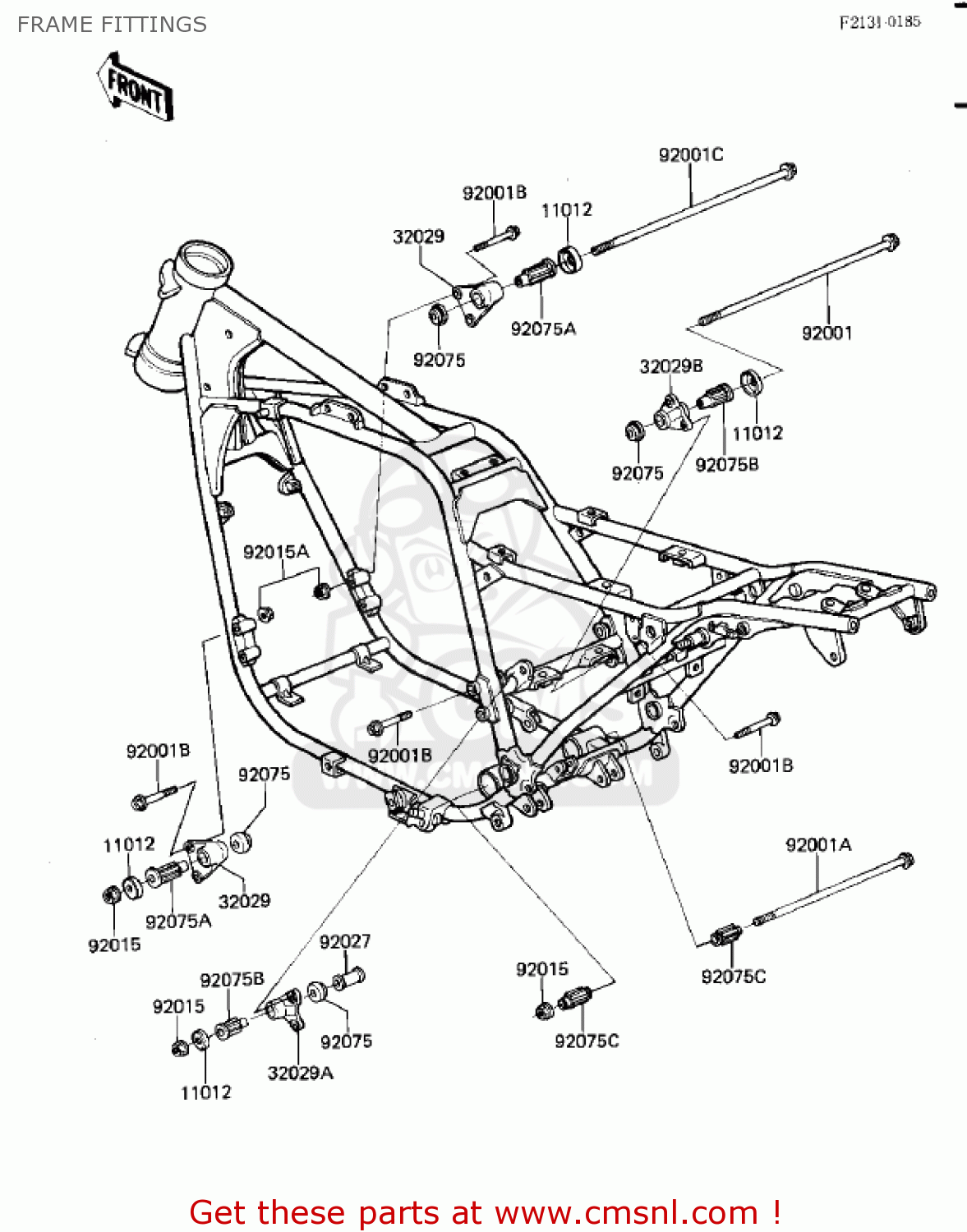

Frame fittings diagram ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD

prices are in EUR

ref

part #

description

quantity

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291194
ref: 32029

BRACKET-ENGINE,FR

€ 24.00

32029A

320291195
ref: 32029A

BRACKET-ENGINE,RR,LH

€ 30.50

32029B

320291332
ref: 32029B

BRACKET-ENGINE,RR,RH

€ 36.50

92001

920011565
ref: 92001

BOLT,FLANGED,10X323,B

€ 14.50

92001A

920011566
ref: 92001A

BOLT,FLANGED,10X255,B

€ 14.00

92001B

920011641
ref: 92001B

BOLT,FLANGED,8X55,BLA

€ 4.50

92001C

920011664
ref: 92001C

BOLT,FLANGED,10X330,B

€ 16.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151408
ref: 92015A

NUT,FLANGED,8MM

€ 1.00

92027

920271110
ref: 92027

COLLAR,L=37

€ 9.00

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

92075B

920751378
ref: 92075B

DAMPER,11X36X50X7

€ 15.00

92075C

920751379
ref: 92075C

DAMPER,11X29X42X7

€ 16.00

FRAME FITTINGS

all assemblies
