Genuine ZN Kawasaki Parts delivered quickly!
home
CLUTCH
ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD

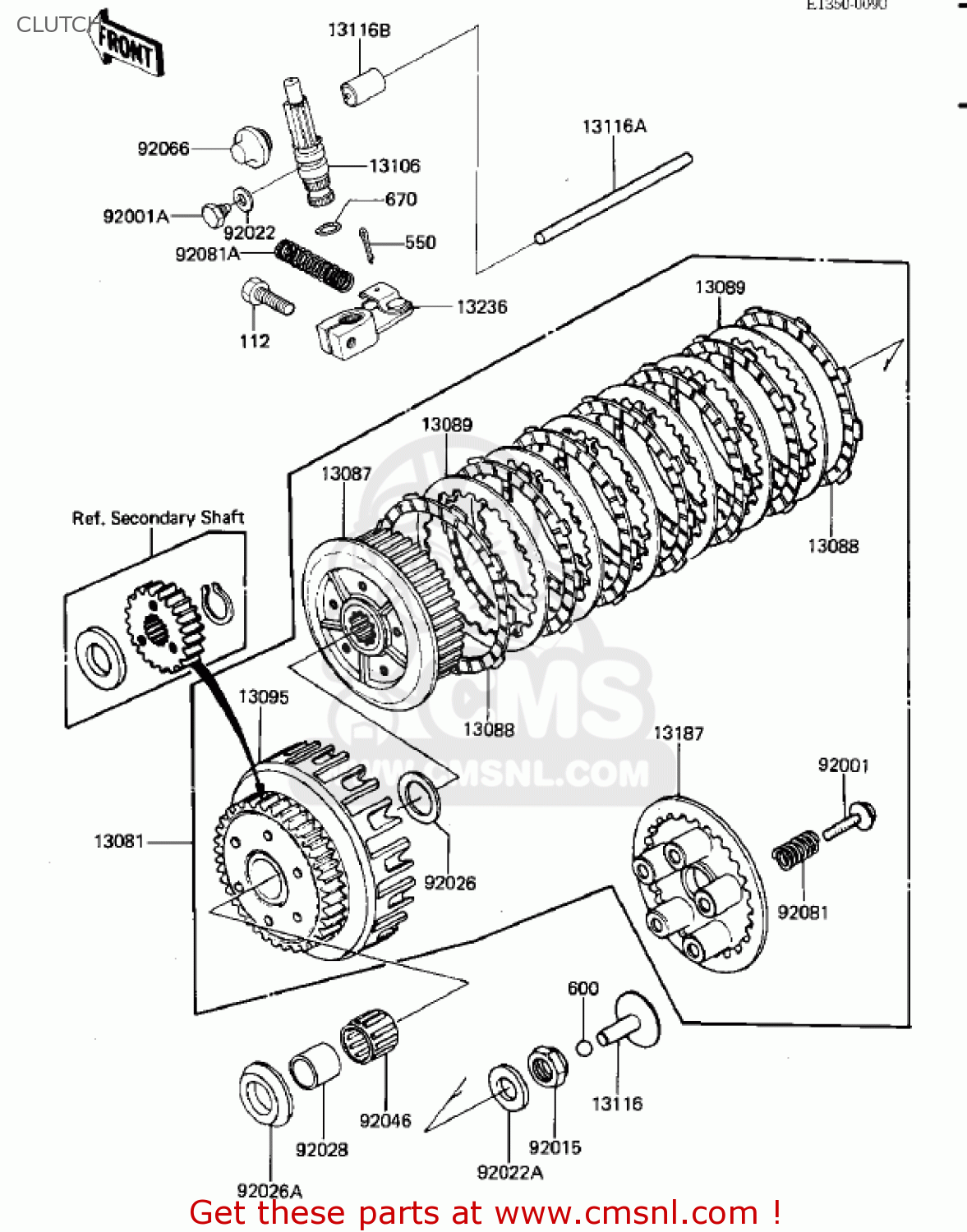

Clutch diagram ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD
CLUTCH ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD
×
prices are in EUR
ref
part #
description
quantity
13081
130811034
ref: 13081
CLUTCH ASSY
€ 386.50
13087
13087043
ref: 13087
HUB-CLUTCH
€ 131.00
13088
13088030
ref: 13088
PLATE-FRICTION (NAS)
€ 14.50
13089
13089022
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.50
13095
130951033
ref: 13095
HOUSING,CLUTCH
€ 506.00
13106
131061015
ref: 13106
SHAFT-CLUTCH RELEASE
€ 23.50
13116
13116022
ref: 13116
ROD-PUSH,CLUTCH SPRIN
€ 15.50
13116A
131161007
ref: 13116A
ROD-PUSH,CLUTCH,8X270
€ 27.00
13116B
131161040
ref: 13116B
ROD,CLUTCH PUSH
€ 15.50
13187
13187006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 44.50
13236
132361052
ref: 13236
LEVER-COMP,CLUTCH REL
€ 31.50
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92001A
92003130
ref: 92001A
BOLT,CLUTCH RELEASE
€ 3.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221116
ref: 92022A
WASHER,20.3X36X2.3
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92066
920661097
ref: 92066
PLUG,CLUTCH RELEASE
€ 4.00
92081
920811176
ref: 92081
SPRING,CLUTCH
€ 6.50
92081A
920811486
ref: 92081A
SPRING,CLUTCH RELEASE
€ 4.00
112
112G0620
ref: 112
BOLT 6X20
€ 1.00
550
550D1615
ref: 550
PIN-COTTER,1.6X15
€ 1.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
