FRONT WHEEL/HUB

ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD

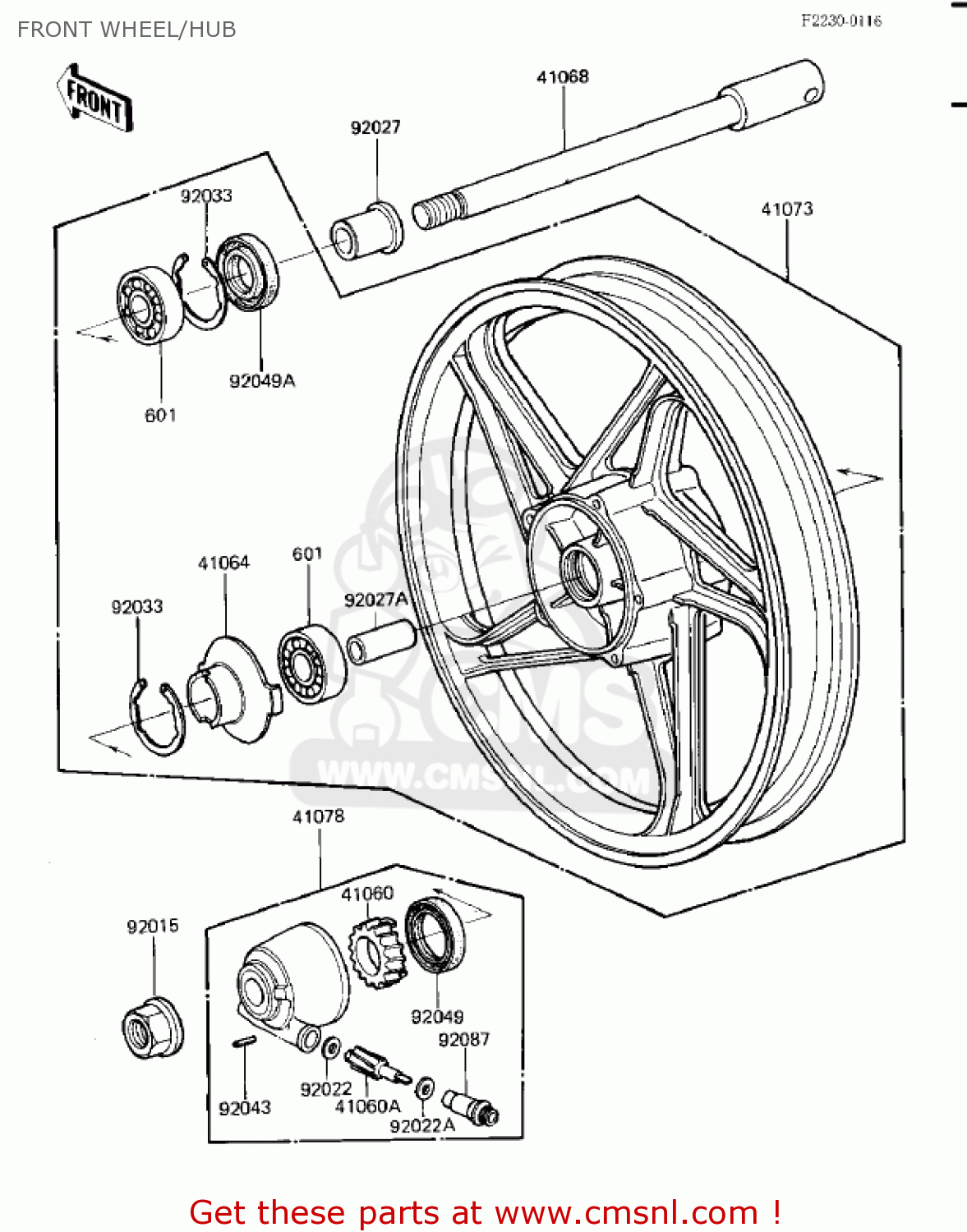

Front wheel/hub diagram ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD

FRONT WHEEL/HUB ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD
FRONT WHEEL/HUB ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD
FRONT WHEEL/HUB ZN700A1 SHAFT 1984 USA CALIFORNIA / LTD
prices are in EUR
ref
part #
description
quantity
41060
41059026
ref: 41060
GEAR,SPEEDOMETER
41059026
€ 27.00
41060A
410601016
ref: 41060A
PINION,SPEEDOMETER,9T
410601016
€ 21.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
410641006
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
410681009
€ 44.50
41073
410731223J9
ref: 41073
WHEEL ASSEMBLY,FRONT,GRAY
€ 400.00
41078
410781013
ref: 41078
CASE-ASSY-METER GEAR
410781013
€ 120.00
92015
920151407
ref: 92015
NUT,14MM
920151407
€ 6.50
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
41063001
€ 3.00
92022A
41063001
ref: 92022A
WASHER-THRST SPD PINI
41063001
€ 3.00
92027
920271225
ref: 92027
COLLAR,FR AXLE L=30MM
920271225
€ 11.50
92027A
920271505
ref: 92027A
COLLAR,15.2X22X55
920271505
€ 8.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
41082001
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
920491058
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
920871002
€ 14.50
601
601B6302U
ref: 601
BEARING-BALL
601B6302U
€ 29.00
