TRANSMISSION
ZN1300A5 VOYAGER 1987 USA CALIFORNIA

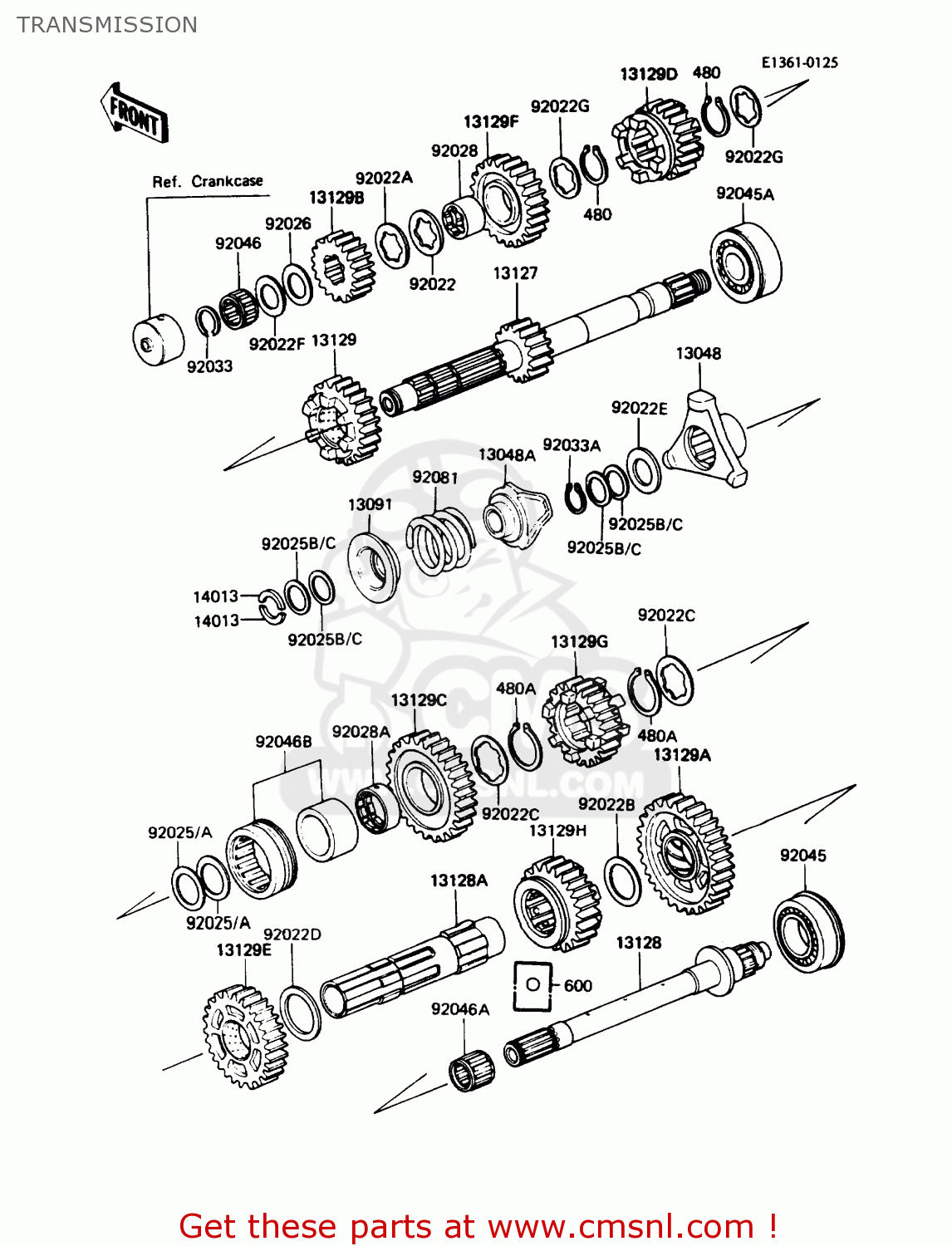

Transmission diagram ZN1300A5 VOYAGER 1987 USA CALIFORNIA
TRANSMISSION ZN1300A5 VOYAGER 1987 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
13048
130481010
ref: 13048
CAM-DAMPER
€ 64.00
13048A
130481011
ref: 13048A
CAM-DAMPER
€ 82.50
13091
130911091
ref: 13091
HOLDER,SPRING
€ 41.00
13127
131271113
ref: 13127
SHAFT-TRANSMISSION
€ 180.50
13128
131281050
ref: 13128
SHAFT-TRANSMISSION OU
€ 336.50
13128A
131281109
ref: 13128A
SHAFT-TRANSMISSION
€ 226.00
13129
131291098
ref: 13129
GEAR,INPUT 4TH,27T
€ 173.00
13129A
131291426
ref: 13129A
GEAR,OUTPUT LOW,41T
€ 149.00
13129B
131291427
ref: 13129B
GEAR,INPUT 2ND,20T
€ 92.00
13129C
131291428
ref: 13129C
GEAR,OUTPUT 2ND,36T
€ 161.50
13129D
131291429
ref: 13129D
GEAR,INPUT 3RD,24T
€ 123.50
13129E
131291430
ref: 13129E
GEAR,OUTPUT 3RD,33T
€ 130.00
13129F
131291592
ref: 13129F
GEAR,INPUT TOP,29T
€ 157.00
13129G
131291593
ref: 13129G
GEAR,OUTPUT TOP,27T
€ 123.00
13129H
131291594
ref: 13129H
GEAR-OUTPUT 4TH,30T
€ 149.00
14013
140131001
ref: 14013
RING,POSITION
€ 2.00
92022
920221098
ref: 92022
WASHER,TOOTHED,30X38X
€ 6.00
92022A
920221099
ref: 92022A
WASHER,CLAW,29X38X1
€ 3.50
92022B
920221100
ref: 92022B
WASHER,34.3X44X1
€ 2.50
92022C
920221101
ref: 92022C
WASHER,TOOTHED,36.3X4
€ 3.50
92022D
920221102
ref: 92022D
WASHER,36.3X46X2.0
€ 4.00
92022E
920221103
ref: 92022E
WASHER,23.2X38X3
€ 6.00
92022F
92022212
ref: 92022F
WASHER-PLAIN,22MM
€ 6.50
92022G
92024042
ref: 92022G
WASHER,TOOTHED,26X35.
€ 7.50
92025
920251002
ref: 92025
SHIM,34.3X42X0.1
€ 3.00
92025A
920251003
ref: 92025A
SHIM,34.3X42X0.3
€ 3.00
92025B
920251004
ref: 92025B
SHIM,23.3X30.7X0.1
€ 3.00
92025C
920251005
ref: 92025C
SHIM,23.3X30.7X0.3
€ 3.50
92026
920261020
ref: 92026
SPACER,22X35.5X1.0
€ 3.50
92028
920281302
ref: 92028
BUSHING,INPUT TOP GEA
€ 18.50
92028A
920281303
ref: 92028A
BUSHING,OUTPUT 2ND GE
€ 19.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
920331021
ref: 92033A
RING-SNAP,22.8MM
€ 2.00
92045
920451018
ref: 92045
BEARING,BALL,#3206
€ 83.50
92045A
920451028
ref: 92045A
BEARING-BALL,5305NSH2
€ 135.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92046A
920461015
ref: 92046A
BEARING-NEEDLE,K23X28
€ 17.50
92046B
920461119
ref: 92046B
BEARING-NEEDLE,TR1-34
€ 130.00
92081
920811286
ref: 92081
SPRING,DAMPER
€ 36.00
480A
480J3600
ref: 480A
CIRCLIP-TYPE-C,36MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
