CYLINDER HEAD
ZN1300A5 VOYAGER 1987 USA CALIFORNIA

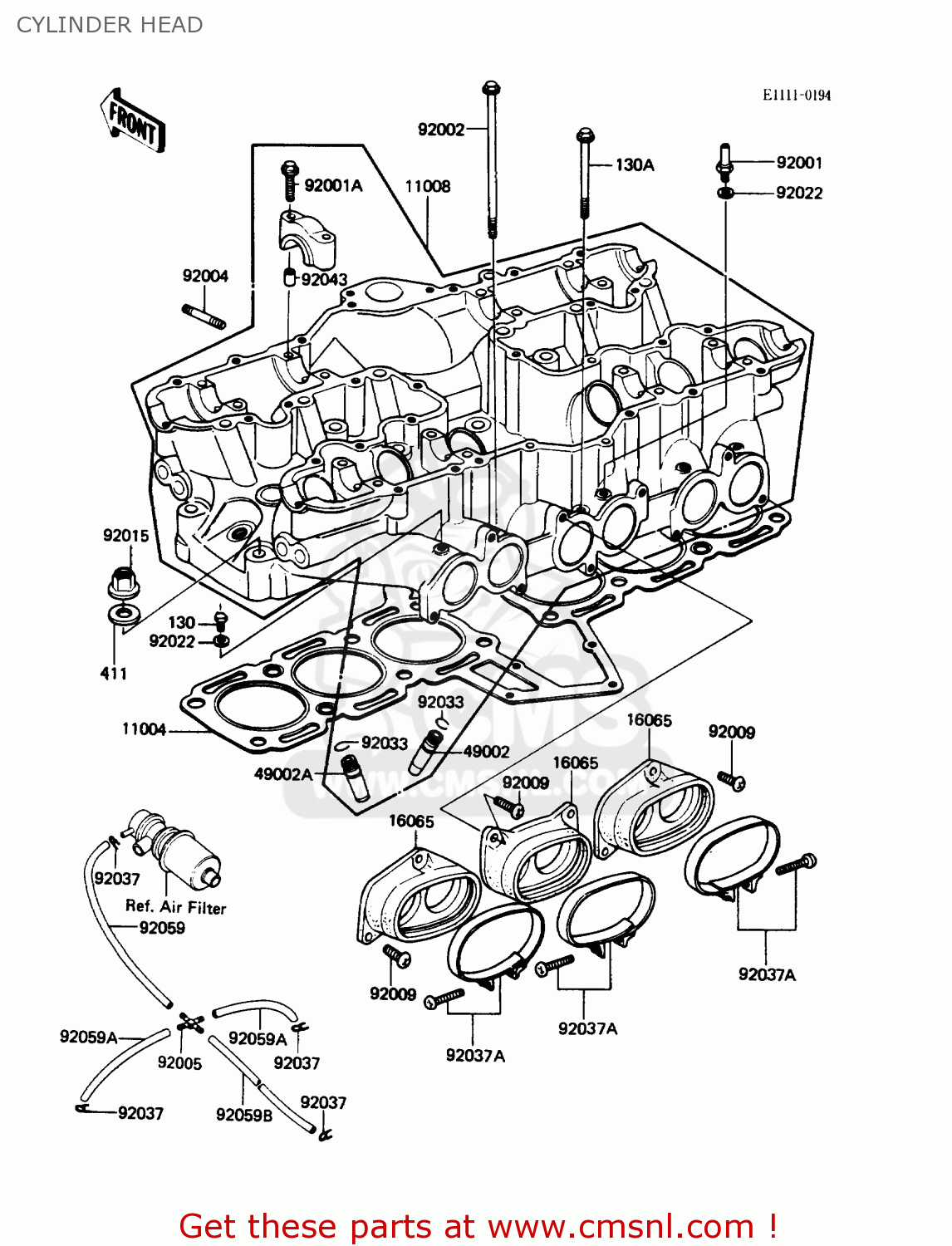

Cylinder head diagram ZN1300A5 VOYAGER 1987 USA CALIFORNIA
CYLINDER HEAD ZN1300A5 VOYAGER 1987 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130N0608
ref: 130
CA
BOLT,FLANGED,6X8
€ 2.00
130
130N0608
ref: 130
US
BOLT,FLANGED,6X8
€ 2.00
130A
130Y0665
ref: 130A
BOLT-FLANGED
€ 3.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
11004
110041014
ref: 11004
GASKET,HEAD,CYLINDER (MCA)
€ 206.00
11008
110081072
ref: 11008
HEAD-COMP-CYLINDER
€ 2,169.00
16065
160651016
ref: 16065
HOLDER-CARBURETOR
€ 43.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92001
920011143
ref: 92001
US
BOLT,VACUUM
€ 3.50
92001
920011143
ref: 92001
CA
BOLT,VACUUM
€ 3.50
92001A
92003092
ref: 92001A
BOLT-HEX HEAD,6X45
€ 4.50
92002
920021273
ref: 92002
BOLT,6X161
€ 6.50
92004
920041128
ref: 92004
STUD,6X30
€ 3.50
92005
920051051
ref: 92005
FITTING,TUBE,X-TYPE
€ 8.00
92009
920091334
ref: 92009
SCREW,6X16
€ 2.00
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
€ 9.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
92037072
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371119
ref: 92037A
CLAMP,CARBURETOR HOLD
€ 13.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92059
920591032
ref: 92059
TUBE,4X9X190M/M
€ 12.50
92059A
920591058
ref: 92059A
TUBE,4X9X100
€ 12.50
92059B
920591262
ref: 92059B
TUBE,4X9X340
€ 7.00
