CHASSIS ELECTRICAL EQUIPMENT

ZN1300A5 VOYAGER 1987 USA CALIFORNIA

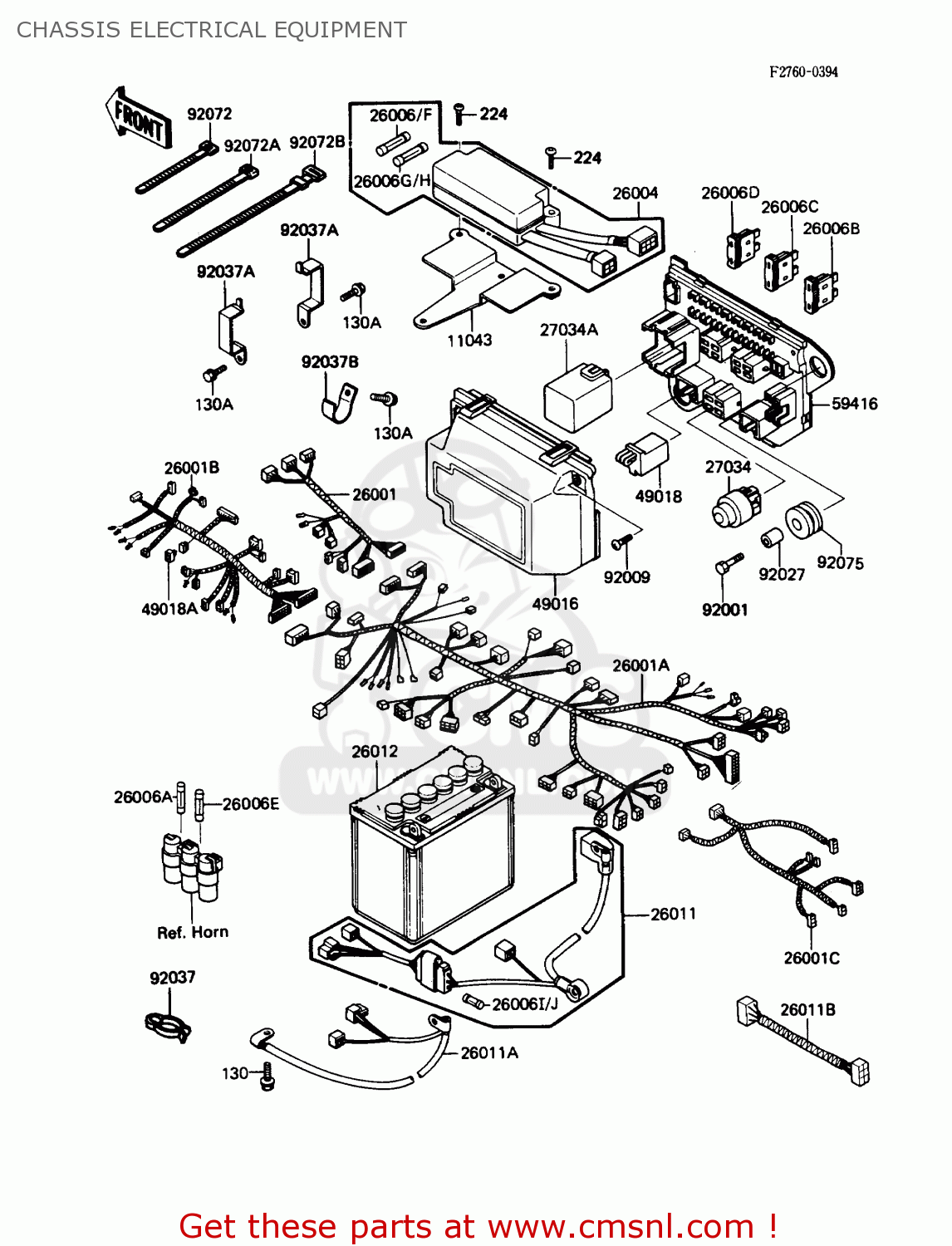

Chassis electrical equipment diagram ZN1300A5 VOYAGER 1987 USA CALIFORNIA

CHASSIS ELECTRICAL EQUIPMENT ZN1300A5 VOYAGER 1987 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT ZN1300A5 VOYAGER 1987 USA CALIFORNIA
CHASSIS ELECTRICAL EQUIPMENT ZN1300A5 VOYAGER 1987 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0610
ref: 130A
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
224
224C0520
ref: 224
SCREW-PAN-WP-CROS
224C0520
€ 2.50
11043
110431317
ref: 11043
BRACKET-B,SUB FUSE
€ 5.50
26001
260011576
ref: 26001
HARNESS,SUB,COWLING R
€ 71.50
26001A
260011868
ref: 26001A
HARNESS,MAIN
€ 368.50
26001B
260011869
ref: 26001B
COWLING HARNESS,SUB,LH
€ 79.50
26001C
260011872
ref: 26001C
HARNESS,REAR
€ 45.50
26004
260041052
ref: 26004
FUSE-ASSY
€ 50.50
26006
26006005
ref: 26006
FUSE 20A
26006005
€ 3.50
26006A
26006006
ref: 26006A
FUSE,20A
€ 2.00
26006B
260061006
ref: 26006B
FUSE,30A-G
260061006
€ 3.00
26006C
260061007
ref: 26006C
FUSE, 10A-R
260061007
€ 3.00
26006D
260061051
ref: 26006D
FUSE,20A
260061051
€ 3.00
26006E
260061052
ref: 26006E
FUSE,3A
€ 3.00
26006F
260061053
ref: 26006F
FUSE,5A,L=25
€ 2.00
26006G
260061054
ref: 26006G
FUSE,3A,L=30
€ 2.50
26006H
260061055
ref: 26006H
FUSE,1A,L=30
260061055
€ 3.00
26006I
260061056
ref: 26006I
FUSE,20A,L=30
260061056
€ 3.00
26006J
260061057
ref: 26006J
FUSE,1A,L=30
€ 2.50
26011
260111190
ref: 26011
WIRE-LEAD,BATTERY
€ 34.00
26011A
260111191
ref: 26011A
WIRE-LEAD,BATTERY GRO
€ 38.00
26011B
260111410
ref: 26011B
CRUISE CONTROL WIRE LEAD
€ 17.00
26012
260121079
ref: 26012
BATTERY,12V24AH,12N24
€ 102.50
27034
270341006
ref: 27034
STARTER,RELAY
270341006
€ 65.50
27034A
270341007
ref: 27034A
RELAY,FLASHER
270341007
€ 139.00
49016
490161050
ref: 49016
COVER-SEAL
490161050
€ 14.00
49018
490181006
ref: 49018
DIODE
490181006
€ 35.00
49018A
490181055
ref: 49018A
DIODE
490181055
€ 13.00
59416
594161056
ref: 59416
CASE-ELECTRIC
594161056
€ 125.50
92001
920011774
ref: 92001
BOLT,6X22
920011774
€ 2.00
92009
920091021
ref: 92009
SCREW,TAPPING,4X10
920091021
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92037
92037093
ref: 92037
CLAMP
92037093
€ 7.50
92037A
920371469
ref: 92037A
CLAMP,HARNESS
€ 5.50
92037B
920371492
ref: 92037B
CLAMP,HARNESS
€ 3.50
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
92072056
€ 3.00
92075
920751562
ref: 92075
DAMPER
920751562
€ 3.00
