Genuine ZN Kawasaki Parts delivered quickly!


IGNITION SWITCH/LOCKS/REFLECTORS

ZN1300A5 VOYAGER 1987 USA CALIFORNIA

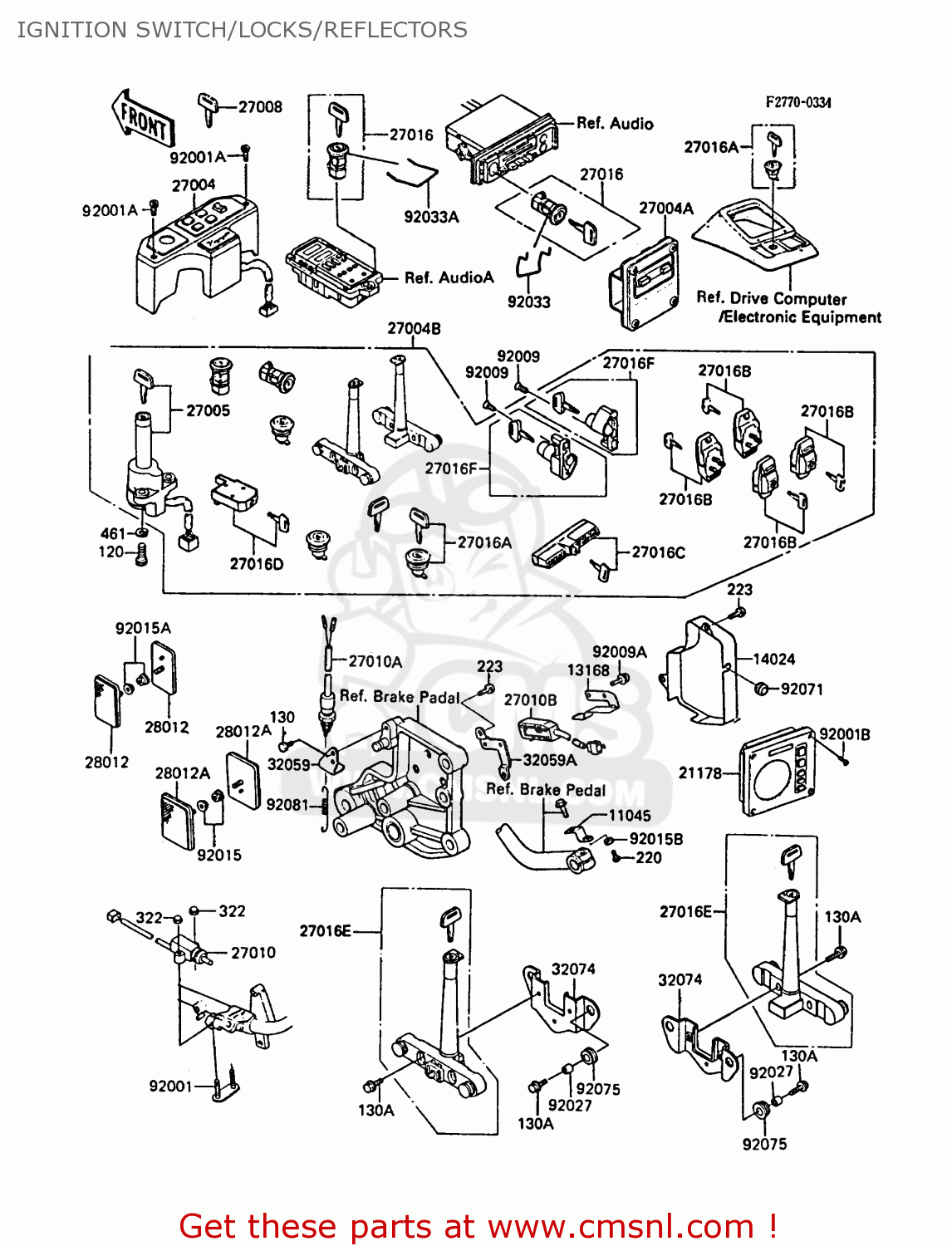

Ignition switch/locks/reflectors diagram ZN1300A5 VOYAGER 1987 USA CALIFORNIA

IGNITION SWITCH/LOCKS/REFLECTORS ZN1300A5 VOYAGER 1987 USA CALIFORNIA
IGNITION SWITCH/LOCKS/REFLECTORS ZN1300A5 VOYAGER 1987 USA CALIFORNIA
IGNITION SWITCH/LOCKS/REFLECTORS ZN1300A5 VOYAGER 1987 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
120
120T0822
ref: 120
BOLT-SOCKET
€ 3.00
11045
110451982
ref: 11045
CRUISE CANCEL BRACKET
€ 4.00
13168
131681364
ref: 13168
CRUISE CANCEL SWITCH LEVER
€ 38.50
14024
140241572
ref: 14024
CRUISE CANCEL COVER
€ 12.00
21178
211781001
ref: 21178
CONTROL-SWITCH
€ 217.00
27004
270041012
ref: 27004
SWITCH-ASSY,IGNITION
270041012
€ 131.50
27004A
270041058
ref: 27004A
CRUISE CONTROL SWITCH ASSEMBLY
€ 96.00
27004B
270045214
ref: 27004B
SWITCH-ASSY
€ 1,034.00
27005
270055034
ref: 27005
SWITCH-ASSY-IGNITION
€ 151.50
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101151
ref: 27010
SWITCH,SIDE STAND
270101151
€ 54.50
27010A
270101181
ref: 27010A
SWITCH,BRAKE LAMP
270101181
€ 20.50
27010B
270101237
ref: 27010B
SWITCH,CRUISE CANCEL
€ 46.50
27016
270165061
ref: 27016
LOCK-ASSY,RADIO CONTR
270165061
€ 42.50
27016A
270165062
ref: 27016A
LOCK-ASSY
€ 88.50
27016B
270165063
ref: 27016B
LOCK-ASSY,SIDE BAG
€ 82.00
27016C
270165064
ref: 27016C
LOCK-ASSY,TRUNK
€ 402.00
27016D
270165065
ref: 27016D
LOCK-ASSY
€ 135.00
27016E
270165066
ref: 27016E
LOCK-ASSY,SIDE BAG
€ 129.00
27016F
270165067
ref: 27016F
LOCK-ASSY,HELMET
€ 61.50
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121055
ref: 28012A
REFLECTOR-REFLEX,RR
280121055
€ 12.50
32059
320591027
ref: 32059
BRACKET-SWITCH
€ 7.50
32059A
320591088
ref: 32059A
CRUISE SWITCH BRACKET
€ 8.00
32074
320741102
ref: 32074
BRACKET-LOCK,SIDE BAG
€ 7.50
92001
920011961
ref: 92001
BOLT,SIDE STAND SWITC
€ 6.00
92001A
920011978
ref: 92001A
BOLT,SOCKET,5X80
€ 2.00
92001B
920011996
ref: 92001B
BOLT,SOCKET,4X16
€ 2.00
92009
920091401
ref: 92009
SCREW
920091401
€ 2.50
92009A
920091500
ref: 92009A
SCREW,4X16
920091500
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151259
ref: 92015A
NUT,FLANGED,5MM
920151259
€ 2.50
92015B
920151676
ref: 92015B
NUT,4MM
€ 2.00
92027
92027194
ref: 92027
COLLAR
92027194
€ 3.50
92033
920331097
ref: 92033
RING-SNAP,RADIO CONTR
€ 4.00
92033A
920331098
ref: 92033A
RING-SNAP,RADIO CONTR
€ 3.00
92071
92071019
ref: 92071
GROMMET,10MM
92071019
€ 2.50
92075
92075277
ref: 92075
DAMPER
92075277
€ 1.00
92081
920811565
ref: 92081
SPRING,BRAKE SWITCH
920811565
€ 4.00
130
130D0610
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0620
ref: 130A
BOLT-FLANGED
130D0620
€ 0.50
220
220B0420
ref: 220
SCREW-PAN-CROS
€ 2.00
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
322
322C0500
ref: 322
NUT-CAP
322C0500
€ 2.00
461
461L0800
ref: 461
WASHER-SPRING
€ 0.50
