Genuine ZN Kawasaki Parts delivered quickly!


SECONDARY SHAFT

ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

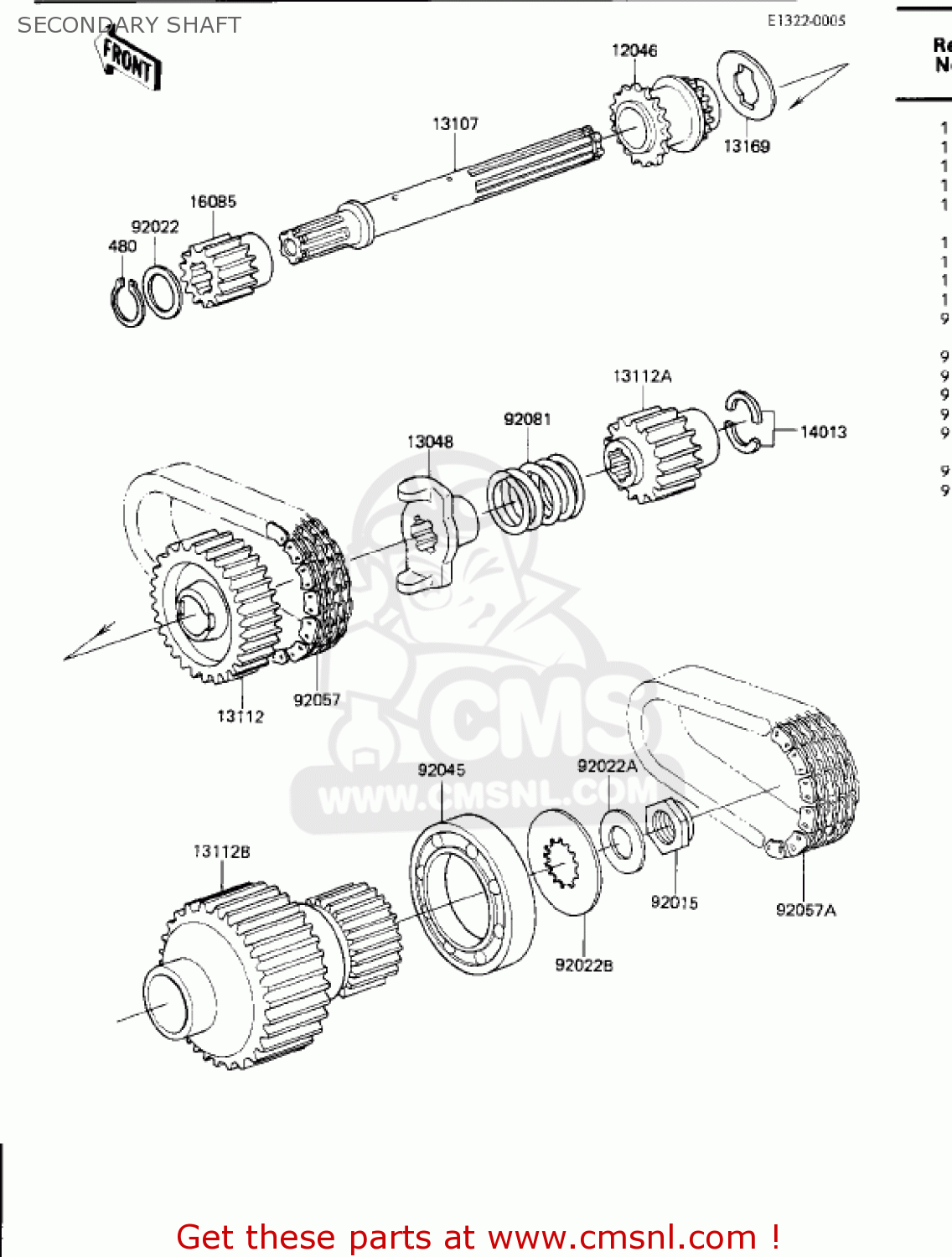

Secondary shaft diagram ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

SECONDARY SHAFT ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
SECONDARY SHAFT ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
SECONDARY SHAFT ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
12046
120461011
ref: 12046
SPROCKET,TIMING,28,24
€ 117.00
13048
130481016
ref: 13048
CAM-DAMPER,PRIMARY
€ 57.00
13107
131071007
ref: 13107
SHAFT,SECONDARY
€ 165.00
13112
131121008
ref: 13112
SPROCKET-PRIMARY,32T
131121008
€ 124.00
13112A
131121010
ref: 13112A
SPROCKET-PRIMARY,21T
131121010
€ 102.00
13112B
131121051
ref: 13112B
SPROCKET-PRIMARY,25T
€ 124.00
13169
131691327
ref: 13169
PLATE,25X54X1.2
€ 3.50
14013
140131001
ref: 14013
RING,POSITION
140131001
€ 2.00
16085
160851004
ref: 16085
GEAR,OIL PUMP DRIVE
€ 32.50
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221109
ref: 92022
WASHER,25.3X33X1
920221109
€ 4.00
92022A
920221116
ref: 92022A
WASHER,20.3X36X2.3
920221116
€ 5.50
92022B
920221404
ref: 92022B
WASHER,CLUTCH
€ 11.50
92045
920451015
ref: 92045
BEARING,BALL,#6009
920451015
€ 34.50
92057
920571075
ref: 92057
CHAIN,PRIMARY,50L
€ 71.00
92057A
920571127
ref: 92057A
CHAIN,SECONDARY
920571127
€ 68.00
92081
920811085
ref: 92081
SPRING,CAM FOLLOWER
€ 24.00
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
480J2500
€ 1.00
