Genuine ZN Kawasaki Parts delivered quickly!


AIR CLEANER

ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

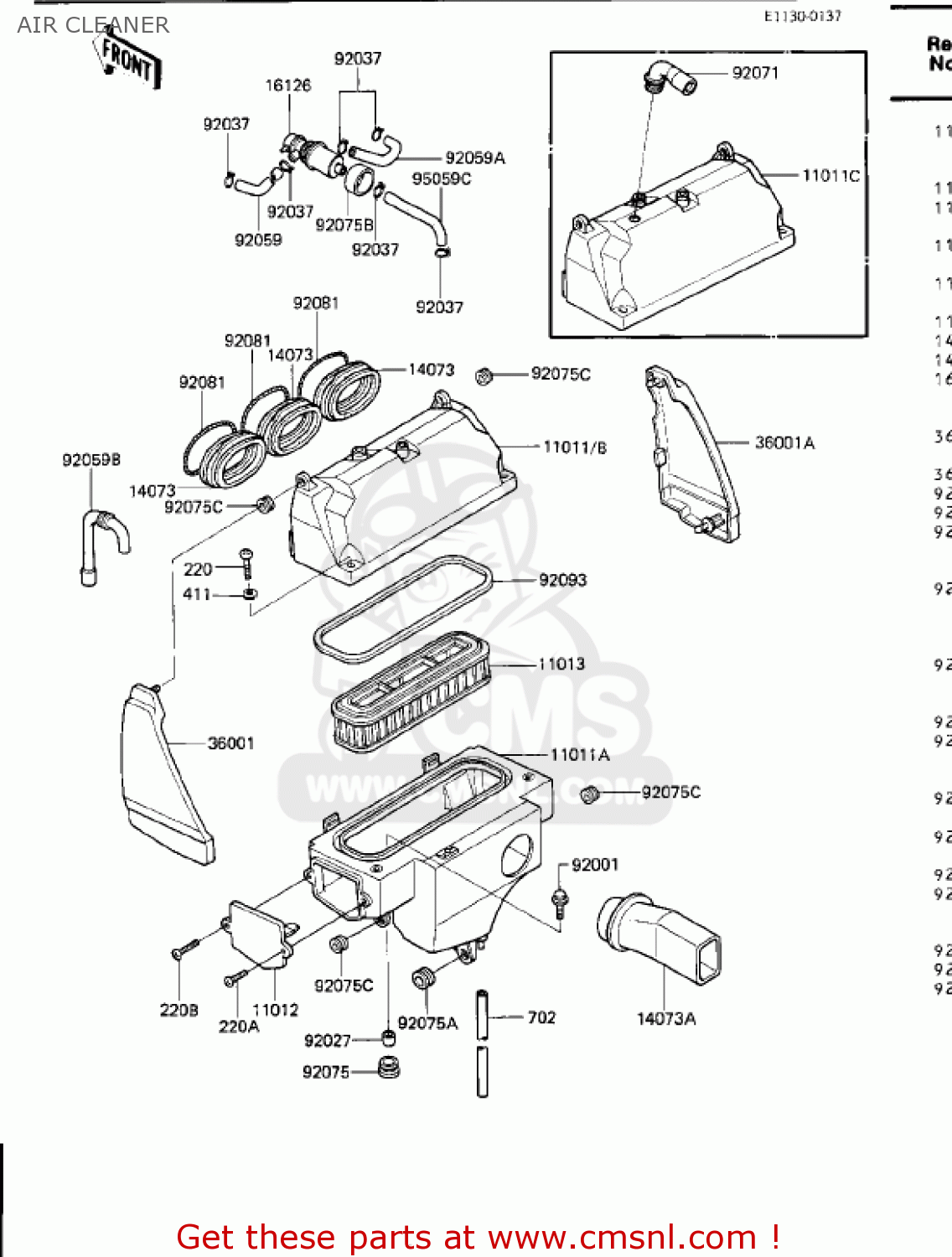

Air cleaner diagram ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

AIR CLEANER ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
AIR CLEANER ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
AIR CLEANER ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11011
110111132
ref: 11011
US
AIR FILTER CASE
€ 44.00
11011A
110111133
ref: 11011A
CASE-AIR FILTER,LWR
€ 95.50
11011B
110111136
ref: 11011B
CN
CASE-AIR FILTER,UPP
€ 37.00
11011C
110111171
ref: 11011C
CA
AIR FILTER CASE,UPPER
€ 39.50
11012
110121285
ref: 11012
CAP,AIR FILTER
€ 14.50
11013
110131073
ref: 11013
ELEMENT-AIR FILTER
110131073
€ 29.00
14073
140731098
ref: 14073
DUCT,AIR FILTER
€ 14.50
14073A
140731099
ref: 14073A
DUCT,AIR FILTER
140731099
€ 50.50
16126
161261015
ref: 16126
US
AIR SWITCH VALVE ASSEMBLY
€ 222.50
36001
360011202
ref: 36001
COVER-SIDE,AIR FILTER
€ 42.00
36001A
360011203
ref: 36001A
COVER-SIDE,AIR FILTER
€ 42.00
92001
920011140
ref: 92001
BOLT,6X25,W/WASHER
920011140
€ 3.50
92027
92027120
ref: 92027
COLLAR
92027120
€ 3.00
92037
92037213
ref: 92037
US
CLAMP, BREATHER TUBE
92037213
€ 2.50
92059
920591076
ref: 92059
US
TUBE,SWITCH VALVE,LH
€ 9.00
92059A
920591077
ref: 92059A
US
TUBE,SWITCH VALVE,R.H
€ 9.50
92059B
920591266
ref: 92059B
TUBE,ARI FILTER
€ 11.50
92059C
920591272
ref: 92059C
US
AIRCUT VALVE TUBE
€ 11.50
92071
920711114
ref: 92071
CA
GROMMET,AIR FILTER
€ 16.50
92075
920751124
ref: 92075
DAMPER,AIR CLEANER
€ 3.00
92075A
920751126
ref: 92075A
DAMPER,CLEANER COVER
920751126
€ 6.00
92075B
920751195
ref: 92075B
US
AIR SWITCHING VALVE DAMPER
€ 3.00
92075C
920751470
ref: 92075C
DAMPER,AIR FILTER
920751470
€ 4.50
92081
920811540
ref: 92081
SPRING,COIL,3.6X237.2
€ 6.00
92093
920931088
ref: 92093
SEAL,AIR FILTER
€ 14.00
220
220B0630
ref: 220
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
220A
220C0620
ref: 220A
SCREW-PAN-CROS,6X20,B
220C0620
€ 1.50
220B
220C0630
ref: 220B
SCREW-PAN-CROS,6X30,B
220C0630
€ 1.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
702
702A06110
ref: 702
TUBE-RUBBER,6X110
€ 14.50
