FRAME

ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

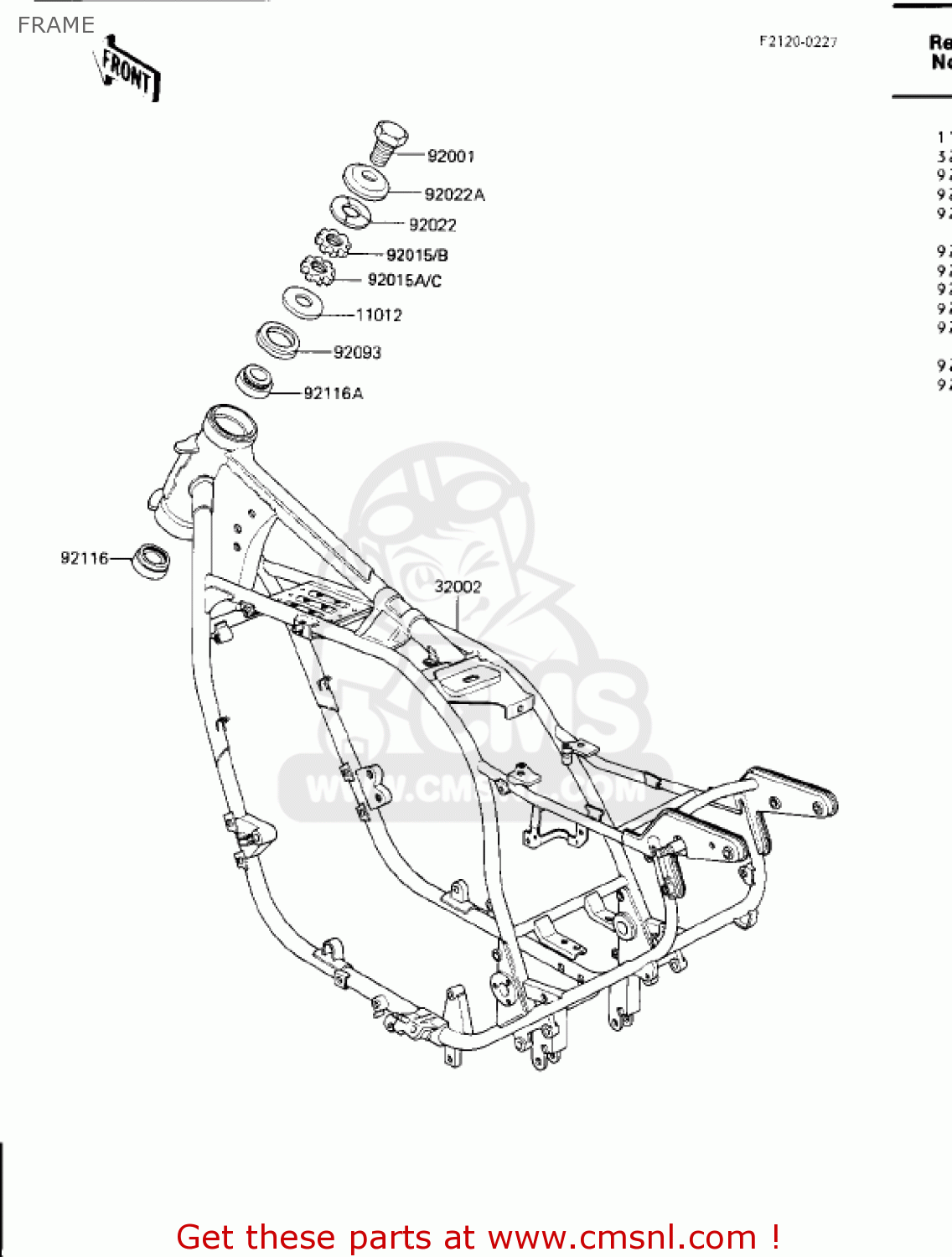

Frame diagram ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121206
ref: 11012

CAP,STEERING

€ 3.00

32002

320021585
ref: 32002

FRAME-COMP

€ 1,179.50

92001

92007031
ref: 92001

BOLT-STEERG STEM HEAD

€ 17.50

92015

920151069
ref: 92015

NUT,STEERING STEM HED

€ 10.00

92015A

920151163
ref: 92015A

NUT,STEERING,28MM

€ 17.50

92015B

920151417
ref: 92015B

NUT,28MM,T=6

€ 7.50

92015C

920151418
ref: 92015C

NUT,28MM,T=8.5

€ 13.50

92022

46100003
ref: 92022

WASHER,WAVE

€ 6.50

92022A

92022230
ref: 92022A

WASHER-STEERG STM HD

€ 7.50

92093

920931070
ref: 92093

SEAL,STEERING

€ 5.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

92116A

921161009
ref: 92116A

BEARING R,HR320/28XJ

€ 41.00
