HORN
ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA

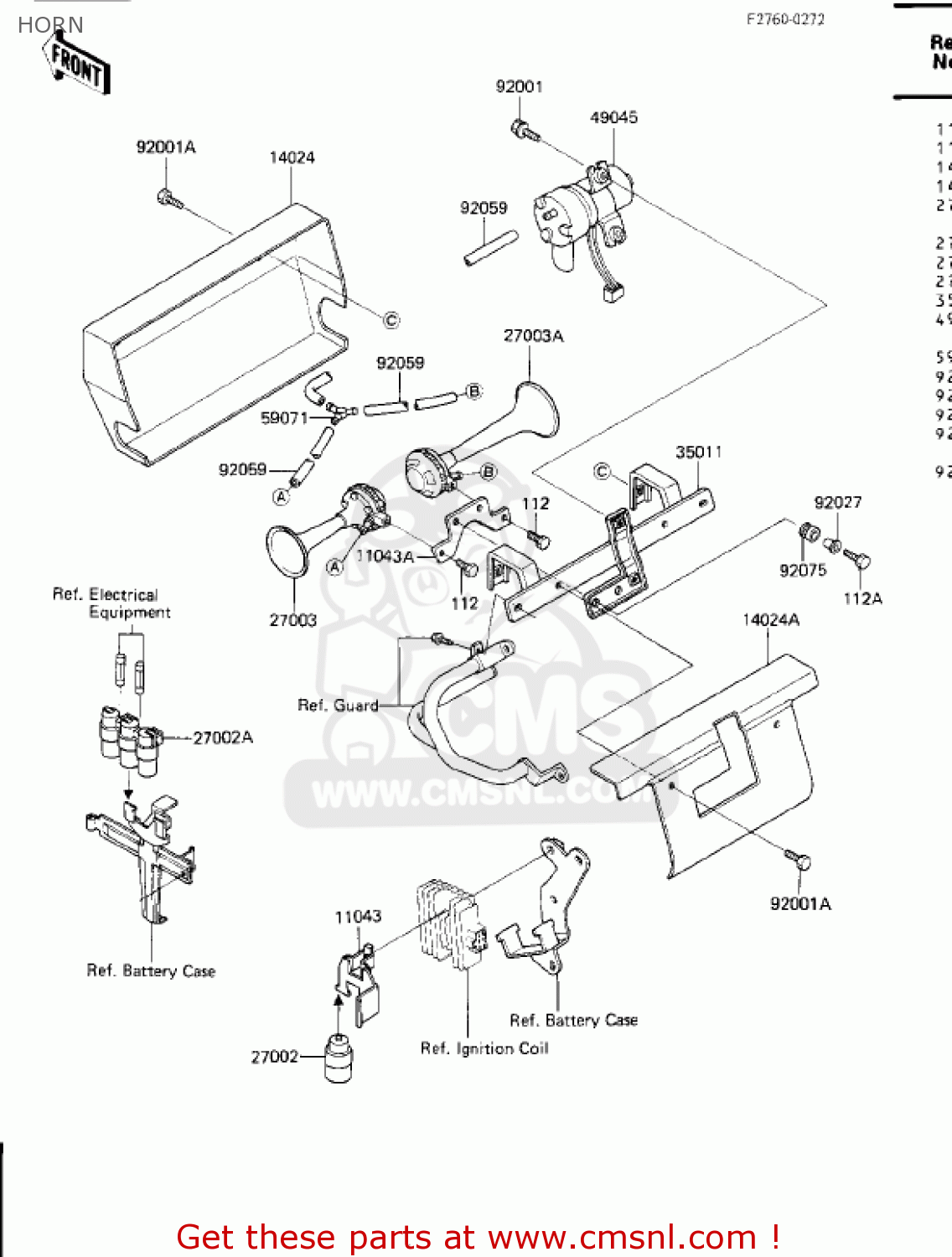

Horn diagram ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
HORN ZN1300A3 VOYAGER 1985 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11043
110431319
ref: 11043
BRACKET-B,FAN RELAY
€ 7.50
11043A
110431327
ref: 11043A
BRACKET-B,AIR HORN
€ 7.00
14024
140251785
ref: 14024
COVER,AIR HORN,FR
€ 125.00
14024A
140251786
ref: 14024A
COVER,AIR HORN
€ 150.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27002A
270021052
ref: 27002A
RELAY-ASSY
€ 118.50
20073
270031202
ref: 20073
HORN,AIR,HIGH
€ 70.50
27003A
270031203
ref: 27003A
HORN,AIR,LOW
€ 62.50
35011
350111205
ref: 35011
STAY,AIR HORN
€ 25.00
49045
490451051
ref: 49045
PUMP-ASSY-AIR,HORN
€ 388.00
59071
590711101
ref: 59071
JOINT,HORN
€ 3.00
92001
920011460
ref: 92001
BOLT,6X20
€ 2.50
92001A
920011826
ref: 92001A
BOLT,6X20
€ 2.50
92027
92027194
ref: 92027
COLLAR
€ 3.50
92059
920591354
ref: 92059
TUBE,AIR HORN
€ 3.00
92075
92075277
ref: 92075
DAMPER
€ 1.00
112
112G0610
ref: 112
BOLT,6X10
€ 0.50
112A
112G0620
ref: 112A
BOLT 6X20
€ 1.00
