GEAR CHANGE MECHANISM

ZL600A1 1986 EUROPE WG / KPH

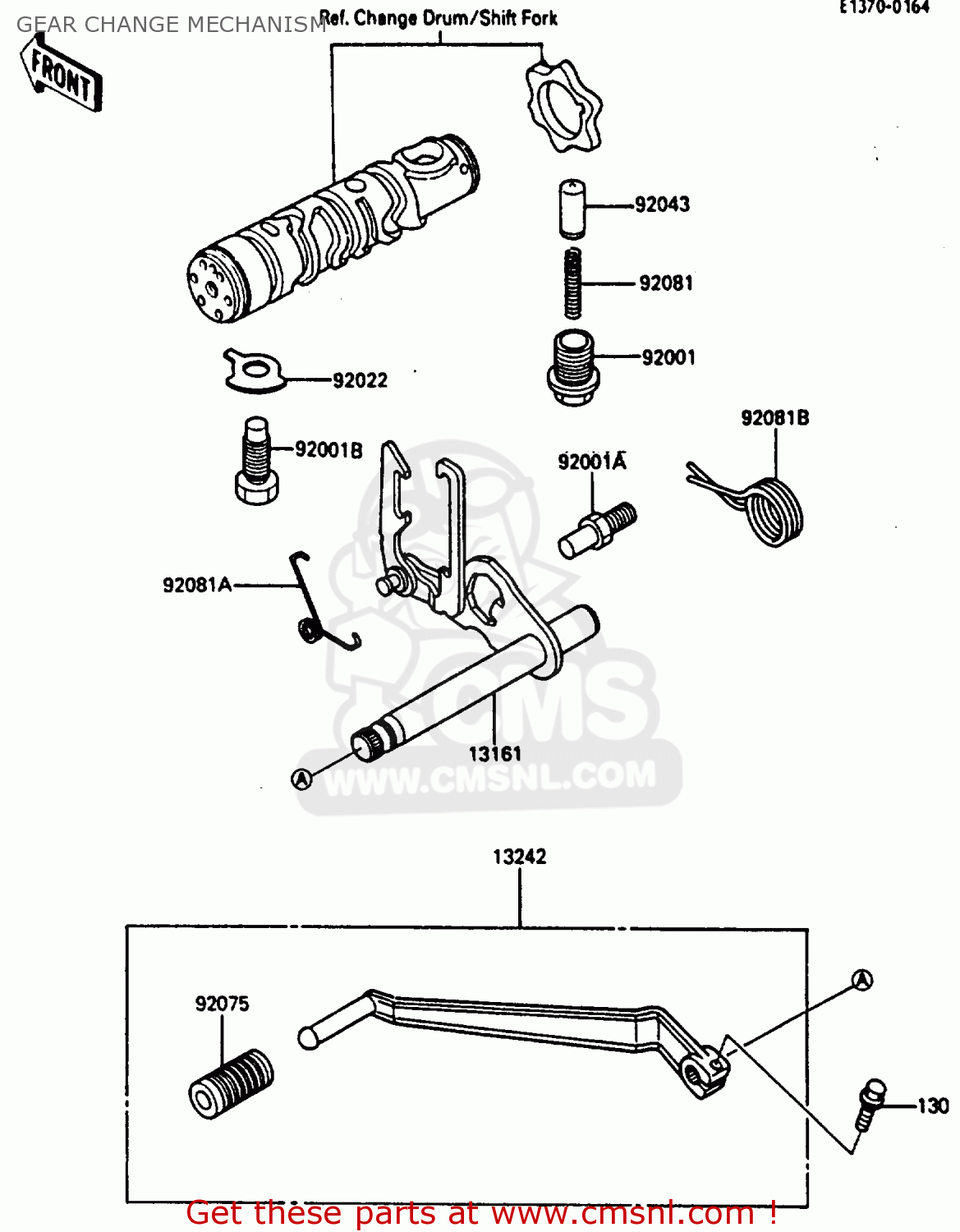

Gear change mechanism diagram ZL600A1 1986 EUROPE WG / KPH

prices are in EUR

ref

part #

description

quantity

13161

13161042
ref: 13161

LEVER-COMP-CHANGE SHA

€ 102.50

13242

132421221
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 28.00

92001

920011037
ref: 92001

BOLT,NEUTAL POSITION

€ 9.50

92001A

920011401
ref: 92001A

BOLT,RETURN SPRING

€ 3.00

92001B

92001174
ref: 92001B

BOLT, HEX HEAD, 10X26

€ 4.50

92022

92024074
ref: 92022

WASHER,LOCK,10MM

€ 2.50

92043

92043076
ref: 92043

PIN-NEUTRAL PISTON

€ 8.00

92075

13157004
ref: 92075

RUBBER-CHANGE PEDAL

€ 4.00

92081

92081112
ref: 92081

SPRING

€ 4.00

92081A

92083018
ref: 92081A

SPRING-KICK PAWL

€ 6.00

92081B

92083028
ref: 92081B

SPRING,CHG PEDL RTRN

€ 9.50

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

GEAR CHANGE MECHANISM

all assemblies
