BRAKE PEDAL
ZL600A1 1986 EUROPE WG / KPH

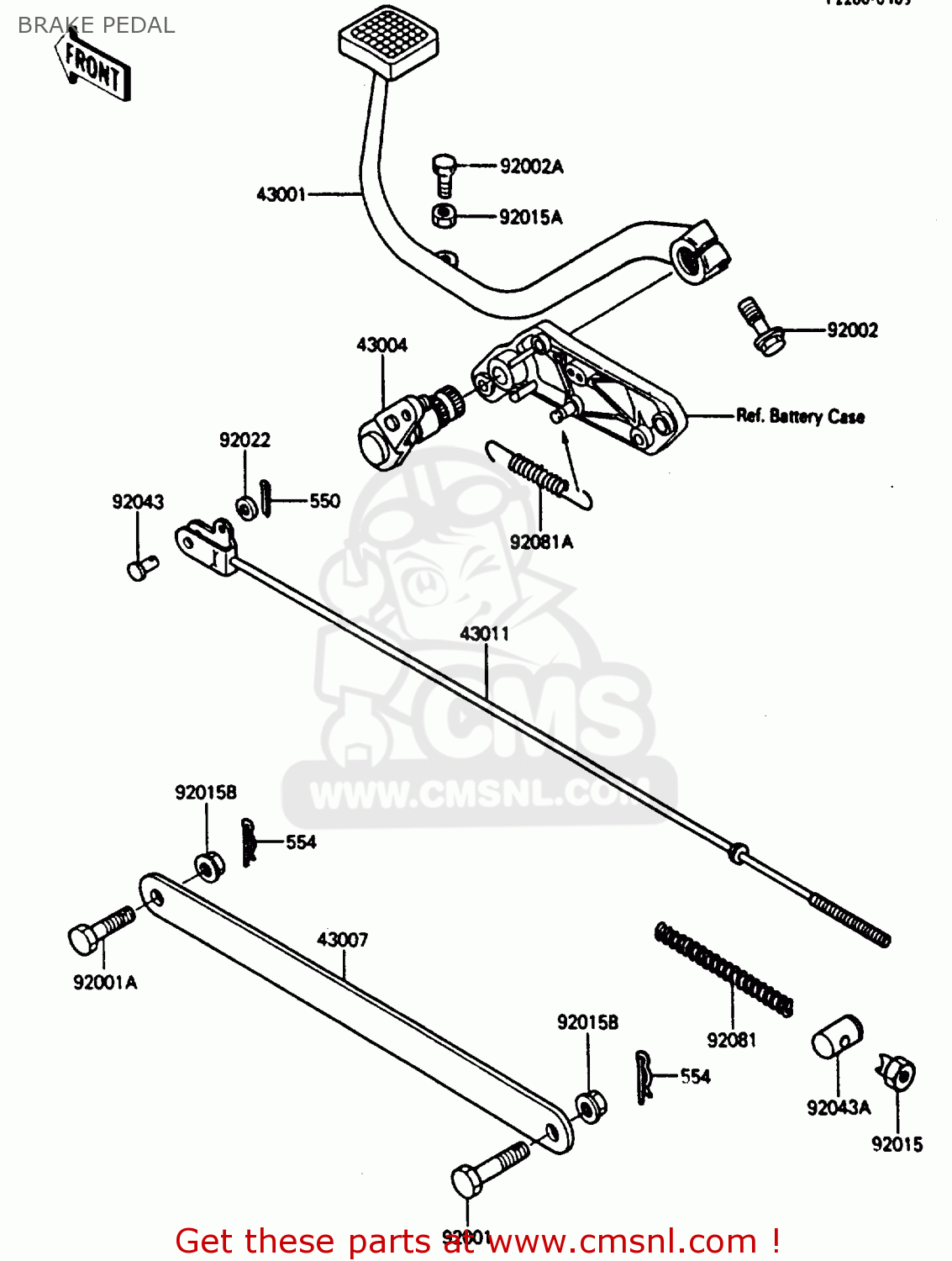

Brake pedal diagram ZL600A1 1986 EUROPE WG / KPH
BRAKE PEDAL ZL600A1 1986 EUROPE WG / KPH
×
prices are in EUR
ref
part #
description
quantity
43001
430011206
ref: 43001
LEVER-BRAKE,PEDAL
€ 67.50
43004
430041116
ref: 43004
SHAFT-BRAKE
€ 36.50
43007
430071028
ref: 43007
ROD-TORQUE
€ 14.50
43011
430111130
ref: 43011
ROD-BRAKE
€ 20.50
92001
920011519
ref: 92001
BOLT,10X37
€ 4.50
92001A
92001096
ref: 92001A
BOLT-HEX HEAD
€ 3.50
92002
920021201
ref: 92002
BOLT,FLANGED,8X25
€ 3.00
92002A
920021373
ref: 92002A
BOLT,6X20
€ 2.50
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
€ 4.00
92015A
920151391
ref: 92015A
NUT,6MM
€ 2.00
92015B
920151428
ref: 92015B
NUT,FLANGED,10MM
€ 3.00
92022
920221556
ref: 92022
WASHER,STEP,RR
€ 0.50
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
€ 3.50
92081
43012001
ref: 92081
SPRING,BRAKE ROD
€ 3.00
92081A
920811561
ref: 92081A
SPRING,SIDE STAND,BLA
€ 5.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
€ 1.00
