FRONT BEVEL GEAR
ZL600A1 1986 EUROPE WG / KPH

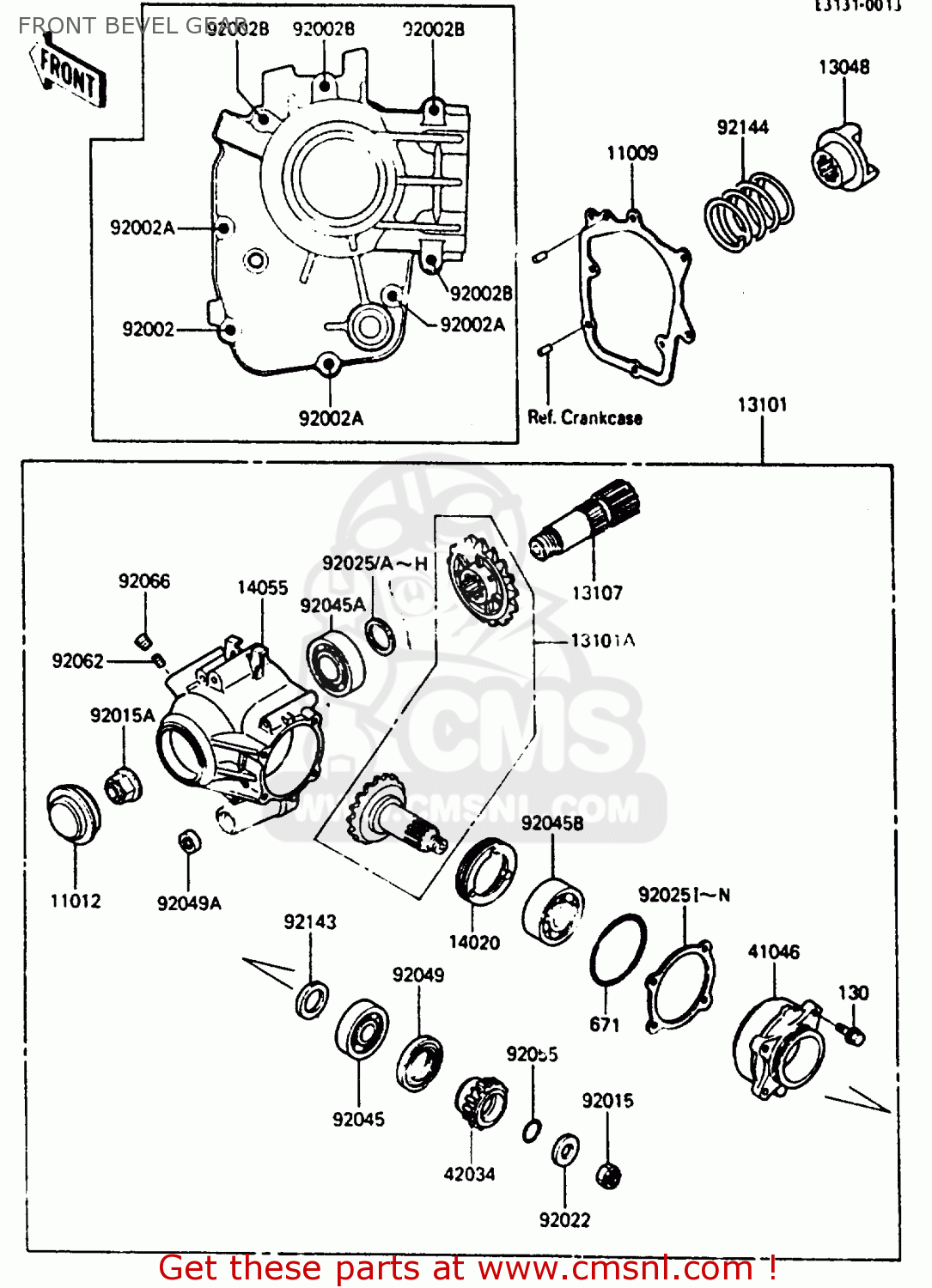

Front bevel gear diagram ZL600A1 1986 EUROPE WG / KPH
FRONT BEVEL GEAR ZL600A1 1986 EUROPE WG / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091579
ref: 11009
GASKET,BEVEL GEAR CAS (MCA)
€ 8.50
11012
110121424
ref: 11012
CAP
€ 28.50
13068
130481068
ref: 13068
CAM-DAMPER
€ 57.50
13101
131011103
ref: 13101
GEAR-ASSY,FRONT BEVEL
€ 1,566.00
13101A
131015060
ref: 13101A
GEAR-ASSY,FRONT BEVEL
€ 1,141.50
13107
131071178
ref: 13107
SHAFT,BEVEL GEAR
€ 82.00
14020
140201065
ref: 14020
RETAINER
€ 30.50
14055
140551070
ref: 14055
CASE-GEAR,FRONT BEVEL
€ 497.00
41046
410461076
ref: 41046
HOUSING-BEARING
€ 135.00
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
€ 96.00
92002
920021564
ref: 92002
BOLT
€ 5.50
92002A
920021789
ref: 92002A
BOLT
€ 2.50
92002B
920021790
ref: 92002B
BOLT
€ 3.00
92015
920151067
ref: 92015
NUT,LOCK,14MM
€ 6.00
92015A
920151543
ref: 92015A
NUT
€ 12.00
92022
920221115
ref: 92022
WASHER,14.1X31X5
€ 8.00
92025
920251688
ref: 92025
SHIM,25.3X36X0.15
€ 5.50
92025A
920251689
ref: 92025A
SHIM,25.3X36X0.50
€ 5.50
92025B
920251690
ref: 92025B
SHIM,25.3X36X0.60
€ 5.50
92025C
920251691
ref: 92025C
SHIM,25.3X36X0.70
€ 5.50
92025D
920251692
ref: 92025D
SHIM,25.3X36X0.80
€ 5.50
92025E
920251693
ref: 92025E
SHIM,25.3X36X0.90
€ 5.50
92025F
920251694
ref: 92025F
SHIM,25.3X36X1.0
€ 5.50
92025G
920251696
ref: 92025G
SHIM,25.3X36X1.2
€ 5.50
92025H
920251696
ref: 92025H
SHIM,25.3X36X1.2
€ 5.50
92025I
920251772
ref: 92025I
SHIM,T=0.10
€ 4.50
92025J
920251773
ref: 92025J
SHIM,T=0.15
€ 4.50
92025K
920251774
ref: 92025K
SHIM,T=0.70
€ 5.50
92025L
920251775
ref: 92025L
SHIM,T=0.80
€ 5.50
92025M
920251776
ref: 92025M
SHIM,T=1.00
€ 5.50
92025N
920251777
ref: 92025N
SHIM,T=1.20
€ 5.50
92045
920451115
ref: 92045
BEARING-BALL,6205
€ 23.00
92045A
920451137
ref: 92045A
BEARING-BALL,TMB305
€ 43.50
92045B
920451147
ref: 92045B
BEARING-BALL,5305SH2C
€ 94.50
92049
920491038
ref: 92049
OIL SEAL,TC35527
€ 12.50
92049A
92051005A
ref: 92049A
OIL SEAL,TB13225.5
€ 5.50
92055
920551044
ref: 92055
RING-O,ID=18.64
€ 3.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92066
920661221
ref: 92066
PLUG,PT1/8X7
€ 3.50
92143
920271994
ref: 92143
COLLAR
€ 13.00
92146
920811981
ref: 92146
SPRING,CAM DAMPER
€ 12.50
130
130S0625
ref: 130
BOLT-FLANGED,6X25,BLA
€ 2.00
671
671B2570
ref: 671
O RING,70MM
€ 4.50
