CYLINDER HEAD
ZL600A1 1986 EUROPE WG / KPH

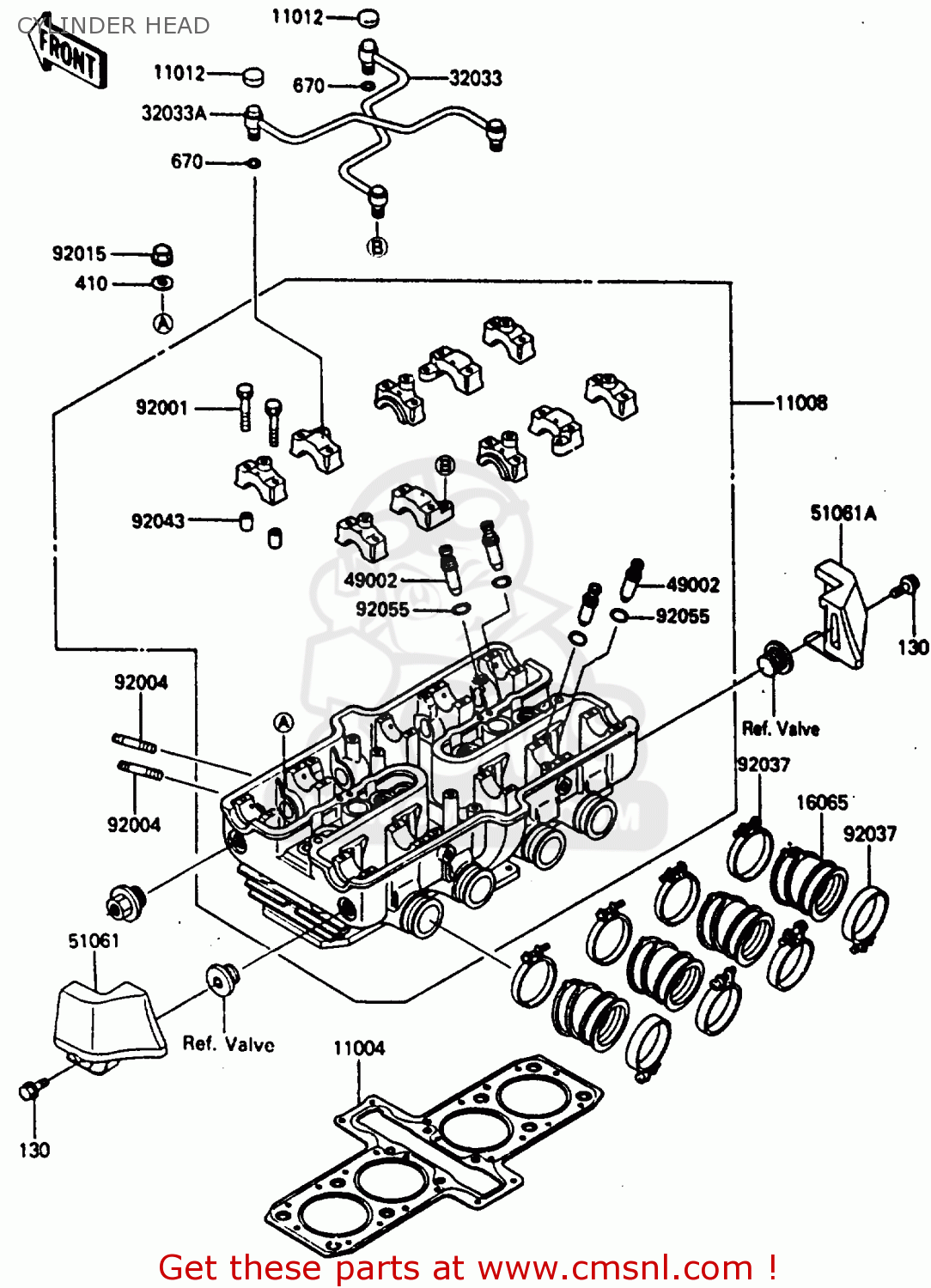

Cylinder head diagram ZL600A1 1986 EUROPE WG / KPH
CYLINDER HEAD ZL600A1 1986 EUROPE WG / KPH
×
prices are in EUR
ref
part #
description
quantity
11004
110041152
ref: 11004
GASKET-HEAD (NAS)
€ 60.50
11008
110081171
ref: 11008
HEAD-COMP-CYLINDER
€ 1,312.50
11012
110121491
ref: 11012
CAP
€ 4.00
16065
160651142
ref: 16065
HOLDER-CARBURETOR
€ 15.50
32033
320331942
ref: 32033
PIPE
€ 37.00
32033A
320331943
ref: 32033A
PIPE
€ 35.00
49002
490021060
ref: 49002
GUIDE-VALVE
€ 20.50
51061
510611053
ref: 51061
PAD-KNEE,HEAD,LH
€ 30.00
51061A
510611054
ref: 51061A
PAD-KNEE,HEAD,RH
€ 28.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92004
920041162
ref: 92004
STUD,6X27
€ 3.00
92015
920151151
ref: 92015
NUT,CAP,8MM
€ 3.00
92037
920371326
ref: 92037
CLAMP
€ 5.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92053
920551177
ref: 92053
RING-O,10.3X1.2
€ 5.00
130
130J0812
ref: 130
BOLT-FLANGED
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
670
670D1505
ref: 670
O RING
€ 2.50
