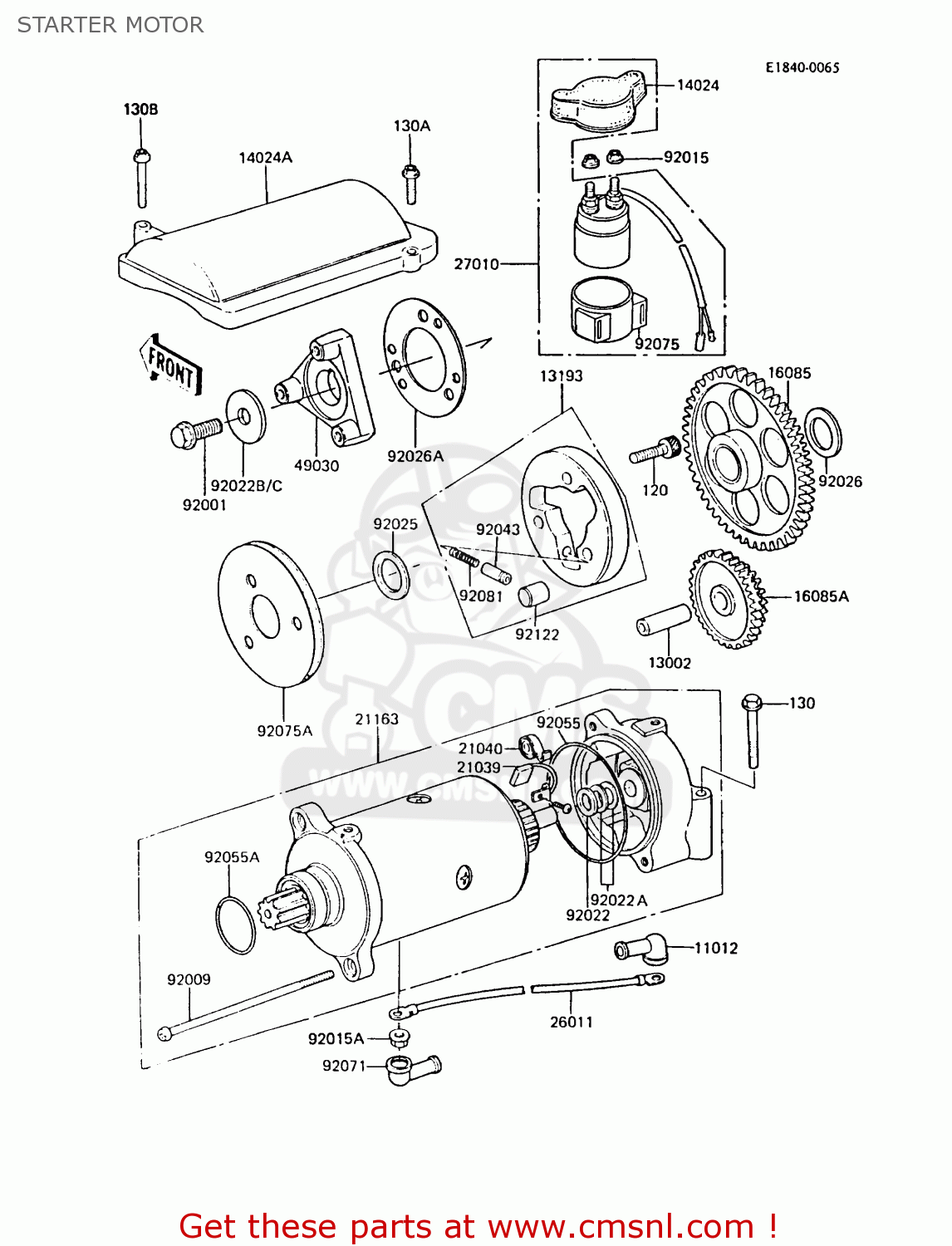

STARTER MOTOR

ref

part #

description

quantity

120

120P0825
ref: 120

BOLT,SOCKET,8X25

€ 1.50

130

130G0655
ref: 130

BOLT,FLANGED,6X55

€ 3.00

130A

130N0625
ref: 130A

BOLT-FLANGED

€ 2.50

130B

130N0640
ref: 130B

BOLT-FLANGED

€ 2.00

11012

110121354
ref: 11012

CAP,TERMINAL

€ 7.00

13002

13002019
ref: 13002

PIN-PISTON

€ 10.00

13193

131931012
ref: 13193

CLUTCH TARIER

€ 152.50

14024

140251165
ref: 14024

COVER,MAGNETIC SWITCH

€ 10.50

14024A

140251752
ref: 14024A

COVER,STARTER MOTOR

€ 51.00

16085

160851040
ref: 16085

GEAR,STARTER CLUTCH,6

€ 163.50

16085A

160851041
ref: 16085A

GEAR,STARTER REDUCTIO

€ 39.50

21039

21039003
ref: 21039

BRUSH,CARBON

€ 23.50

21040

21040003
ref: 21040

SPRING-BRUSH

€ 4.50

21163

211631059
ref: 21163

STARTER-ELECTRIC

€ 576.00

26011

260111276
ref: 26011

WIRE-LEAD,STARTER MOT

€ 57.50

27010

270101025
ref: 27010

SWITCH,MAGNETIC

€ 75.50

49030

490301008
ref: 49030

HUB,TORSION DAMPER

€ 111.50

92001

920011425
ref: 92001

BOLT,FLANGED,12X25

€ 8.50

92009

21015005
ref: 92009

SCREW-PAN HEAD,6X110

€ 5.50

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151195
ref: 92015A

NUT,FLANGED,6MM

€ 1.50

92022

21025010
ref: 92022

WASHER,THRUST,T=1.6

€ 4.00

92022A

21025011
ref: 92022A

WASHER, THRUST, 0.2T

€ 4.00

92022B

920221238
ref: 92022B

WASHER,12.3X36X4

€ 20.50

92022C

920221263
ref: 92022C

WASHER

€ 20.50

92025

920251019
ref: 92025

SHIM,25.3X36X0.3

€ 4.00

92026

920261059
ref: 92026

SPACER,25X34X2.3

€ 5.50

92026A

92026112
ref: 92026A

SPACER,45X79.5X0.5 (NAS)

€ 7.50

92043

92043087
ref: 92043

PIN

€ 8.00

92055

21027003
ref: 92055

RING-O,STARTER MOTOR

€ 6.00

92055A

21027004
ref: 92055A

ORING-STARTING MOTR

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92075A

920751390
ref: 92075A

DAMPER

€ 76.50

92081

92081110
ref: 92081

SPRING

€ 3.00

92122

92122004
ref: 92122

ROLLER,15X13

€ 7.00
