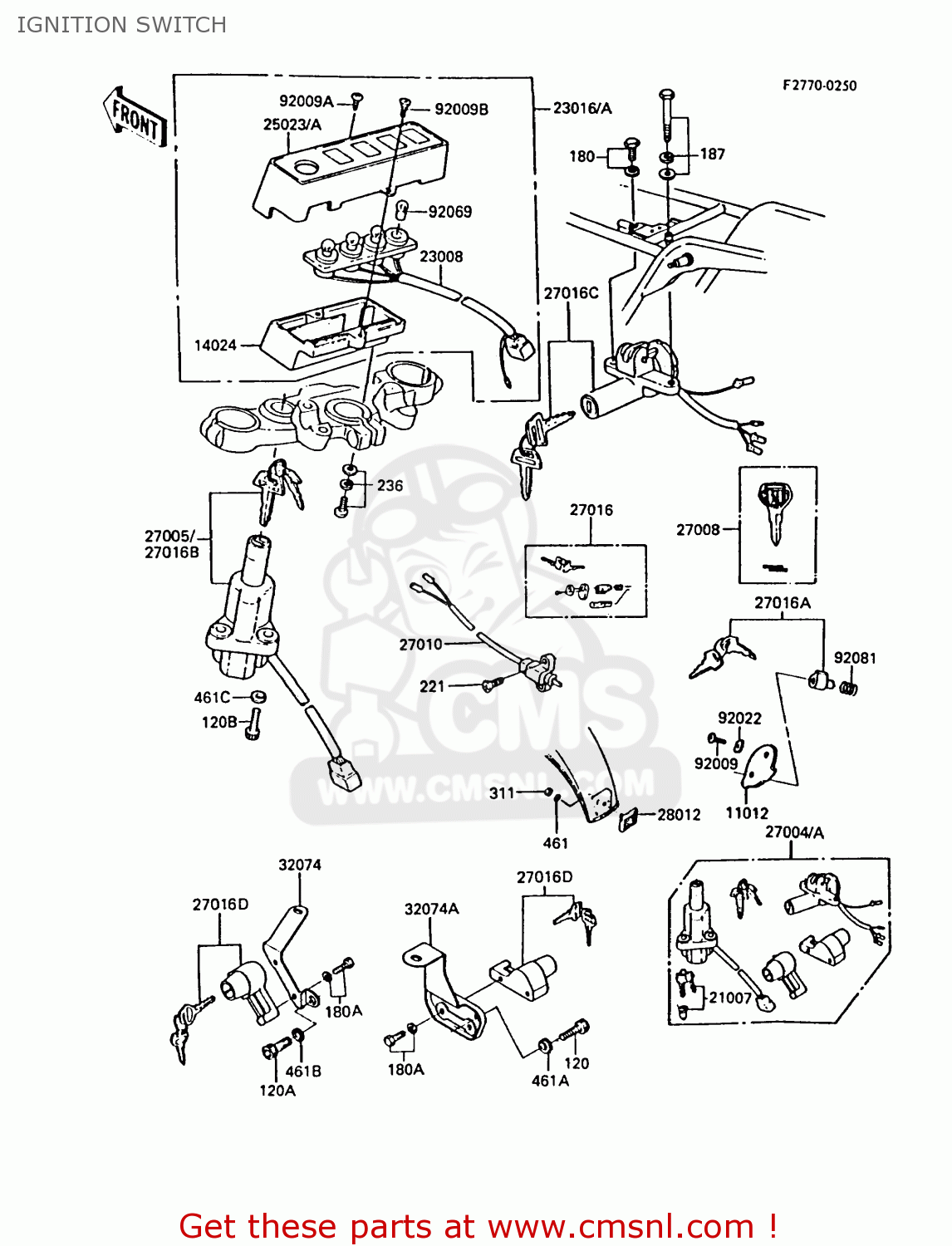

IGNITION SWITCH

ref

part #

description

quantity

14024

140251117
ref: 14024

COVER,PILOT LAMP,LWR

€ 15.50

21007

210075007
ref: 21007

ROTOR,TANK CAP

€ 71.00

23008

230081048
ref: 23008

SOCKET-ASSY,PILOT LAM

€ 49.00

23016

230161015
ref: 23016
FRUK

LAMP-ASSY,PILOT

€ 96.00

23016A

230161016
ref: 23016A
SD

LAMP-ASSY,PILOT

€ 96.00

25023

250231016
ref: 25023
FRUK

COVER,PILOT LAMP,UPP

€ 34.50

25023A

250231017
ref: 25023A
SD

COVER,PILOT LAMP,UPP

€ 34.50

27004

270045216
ref: 27004
FRUK

SWITCH-ASSY

€ 328.00

27004A

270045217
ref: 27004A
SD

SWITCH-ASSY

€ 265.00

27005

270055011
ref: 27005
SD

SWITCH ASY,IGNTON,GMN

€ 151.50

27008

270081103
ref: 27008

KEY-LOCK,BLANK

€ 13.50

27010

270101151
ref: 27010

SWITCH,SIDE STAND

€ 54.50

27016

ref: 27016
SD

27016B

270165026
ref: 27016B
FRUK

LOCK-ASSY,IGNITION SW

€ 141.00

27016C

270165027
ref: 27016C

LOCK-ASSY,SEAT

€ 101.00

27016D

270165036
ref: 27016D

LOCK ASSY,HELMET

€ 67.50

28012

280121055
ref: 28012

REFLECTOR-REFLEX,RR

€ 12.50

32074

320741020
ref: 32074

BRACKET-LOCK,HLMT,LH

€ 4.50

32074A

320741021
ref: 32074A

BRACKET-LOCK,HELMET,R

€ 10.00

120

120S0610
ref: 120

BOLT-SOCKET

€ 1.50

120A

120S0814
ref: 120A

BOLT-SOCKET

€ 3.00

120B

120T0822
ref: 120B

BOLT-SOCKET

€ 3.00

180

180B0612
ref: 180

BOLT-UPSET-WS,6X12

€ 2.50

180A

180C0510
ref: 180A

BOLT-UPSET-WS,5X10,BL

€ 2.00

187

187B0650
ref: 187

BOLT-UPSET-WSP

€ 1.00

221

221C0520
ref: 221

SCREW-CSK-CROS

€ 2.50

236

236B0516
ref: 236

SCREW-PAN-WSP-CROS

€ 2.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461K0600
ref: 461A

WASHER-SPRING

€ 0.50

461B

461K0800
ref: 461B

WASHER-SPRING,8MM,BLA

€ 1.50

461C

461L0800
ref: 461C

WASHER-SPRING

€ 0.50

92009A

920091073
ref: 92009A

SCREW,TAPPING,3.5X10

€ 2.00

92009B

920091074
ref: 92009B

SCREW,CNTSNK HED,4X10

€ 2.00

92069

92069018
ref: 92069

BULB 12V 3W

€ 4.00

all assemblies
