SEAT
ZG1300A2 Z1300 1986 UNITED KINGDOM FR SD

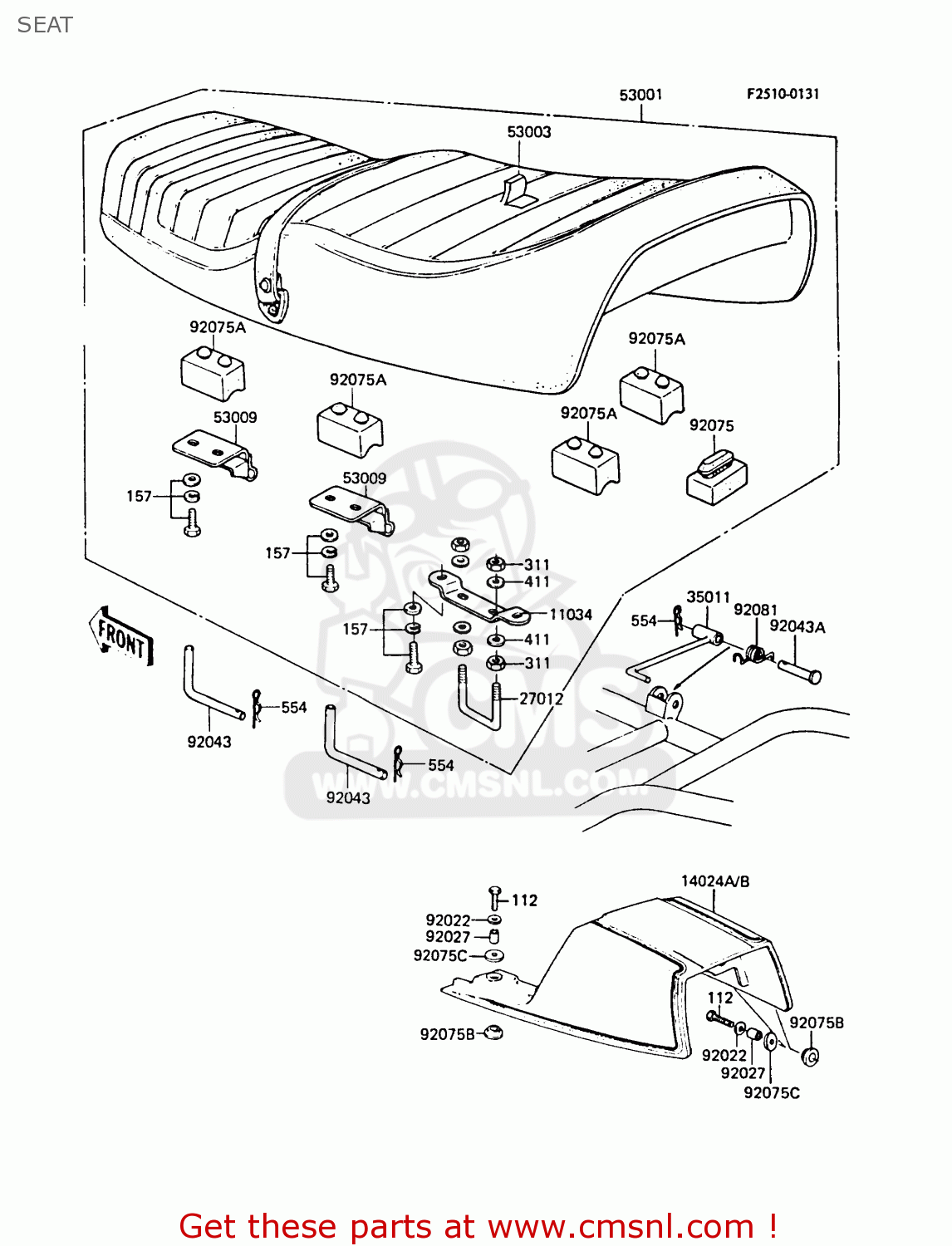

Seat diagram ZG1300A2 Z1300 1986 UNITED KINGDOM FR SD
SEAT ZG1300A2 Z1300 1986 UNITED KINGDOM FR SD
×
prices are in EUR
ref
part #
description
quantity
112
112B0622
ref: 112
BOLT, 6X22
€ 2.50
157
157B0614
ref: 157
BOLT-UPSET-WSP
€ 0.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
554
554A0500
ref: 554
PIN-SNAP
€ 1.50
11034
53058001
ref: 11034
BRACKET,SEAT CATCH
€ 6.00
14024A
140255049H8
ref: 14024A
COVER,SEAT,EBONY
€ 257.00
14024B
140255139D9
ref: 14024B
COVER,SEAT,L.P.RED
€ 283.00
27012
53056002
ref: 27012
HOOK,SEAT
€ 11.50
35011
350111018
ref: 35011
STAY,SEAT STAND
€ 6.50
53001
530011358
ref: 53001
SEAT-ASSY
€ 543.00
53003
530031022
ref: 53003
LEATHER,SEAT
€ 206.00
53009
530091011
ref: 53009
HINGE,SEAT
€ 8.00
92022
92022228
ref: 92022
WASHER-PLAIN,7MM
€ 2.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92043
920431021
ref: 92043
PIN,SEAT PIVOT
€ 3.00
92043A
920431045
ref: 92043A
PIN,SEAT STAND
€ 1.50
92075
92075099
ref: 92075
DAMPER RUBBER
€ 3.50
92075A
92075139
ref: 92075A
DAMPER,SEAT
€ 7.00
92075B
92075174
ref: 92075B
DAMPER,MALE
€ 3.00
92075C
92075175
ref: 92075C
DAMPER,FEMALE
€ 2.50
92081
920811100
ref: 92081
SPRING,SEAT STAND
€ 5.50
