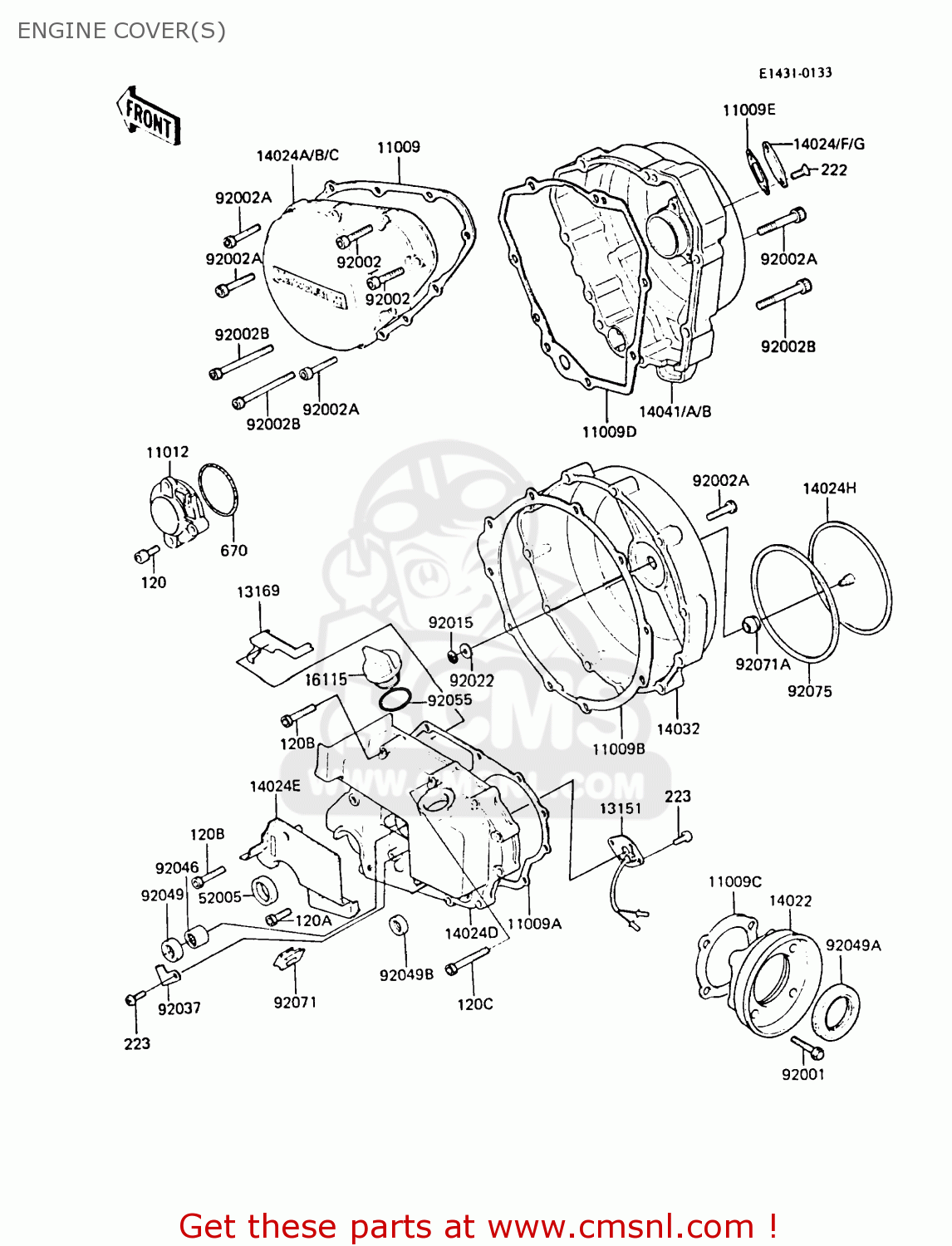

ENGINE COVER(S)

ref

part #

description

quantity

11009

110091090
ref: 11009

GASCKET,L.H.ENG COVER (MCA)

€ 14.00

11009A

110091091
ref: 11009A

GASKET,MISSON COVER (MCA)

€ 19.00

11009B

110091092
ref: 11009B

GASKET,CLUTCH COVER (MCA)

€ 18.50

11009C

110091159
ref: 11009C

GASKET,BEARING CAP (NAS)

€ 6.00

11009D

110091269
ref: 11009D

GASKET,GENERATOR COVE (MCA)

€ 9.50

11009E

110091270
ref: 11009E

GASKET,OIL INSPECTION (MCA)

€ 9.50

11012

110121060
ref: 11012

CAP,TIMING SPROCKET

€ 18.00

13151

131511013
ref: 13151

SWITCH-COMP,NEUTRAL

€ 43.00

13169

131691131
ref: 13169

PLATE,BAFFLE,BREATHER

€ 15.50

14022

140221005
ref: 14022

CAP-BEARING,OUTLET SH

€ 27.00

14024A

140251501
ref: 14024A

COVER,LH,ENGINE

€ 197.50

14024D

140251617
ref: 14024D

COVER,TRANSMISSION,SI

€ 138.50

14024E

140251618
ref: 14024E

COVER,RELEASE

€ 36.00

14024F

140251704
ref: 14024F

COVER,OIL INSPECTION

€ 11.50

14024H

140251814
ref: 14024H

COVER,CLUTCH COVER

€ 33.00

14032

140321111
ref: 14032

COVER-CLUTCH

€ 212.50

14041A

140411024
ref: 14041A

COVER-COMP,GENERATOR

€ 234.00

16115

161151009
ref: 16115

CAP-OIL FILLER

€ 10.00

52005

520051017
ref: 52005

GAUGE,OIL LEVEL

€ 39.00

92001

92003202
ref: 92001

BOLT

€ 4.00

92002

920021281
ref: 92002

BOLT,6X25

€ 2.50

92002A

920021282
ref: 92002A

BOLT,6X35

€ 2.50

92002B

920021283
ref: 92002B

BOLT,6X50

€ 2.50

92015

92018004
ref: 92015

NUT,SPEED,5MM

€ 2.50

120

120Z0614
ref: 120

BOLT-SOCKET,6X14

€ 2.50

120A

120Z0616
ref: 120A

BOLT-SOCKET,6X16

€ 2.50

120B

120Z0635
ref: 120B

BOLT-SOCKET,6X35

€ 3.00

120C

120Z0645
ref: 120C

BOLT-SOCKET,6X45

€ 2.50

222

222E0510
ref: 222

SCREW-OVL CNTSNK,5X10

€ 2.00

223

223B0612
ref: 223

SCREW-PAN-WS-CROS

€ 0.50

670

670B3045
ref: 670

O RING,45MM

€ 2.50

92022

92022104
ref: 92022

WASHER-SPEEDMETR FIT

€ 2.50

92037

920371152
ref: 92037

CLAMP,CABLE

€ 2.50

92046

92046037
ref: 92046

BEARING-NEEDLE,7E-HK1

€ 17.00

92049

920491037
ref: 92049

OIL SEAL,TC14244.8

€ 6.50

92049A

920491038
ref: 92049A

OIL SEAL,TC35527

€ 12.50

92049B

92051005A
ref: 92049B

OIL SEAL,TB13225.5

€ 5.50

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92071

920711051
ref: 92071

GROMMET

€ 5.50

92071A

920711108
ref: 92071A

GROMMET,CLUTCH COVER

€ 3.50

92075

920751594
ref: 92075

DAMPER,CLUTCH COVER

€ 16.50

all assemblies
