FRAME FITTINGS

ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA

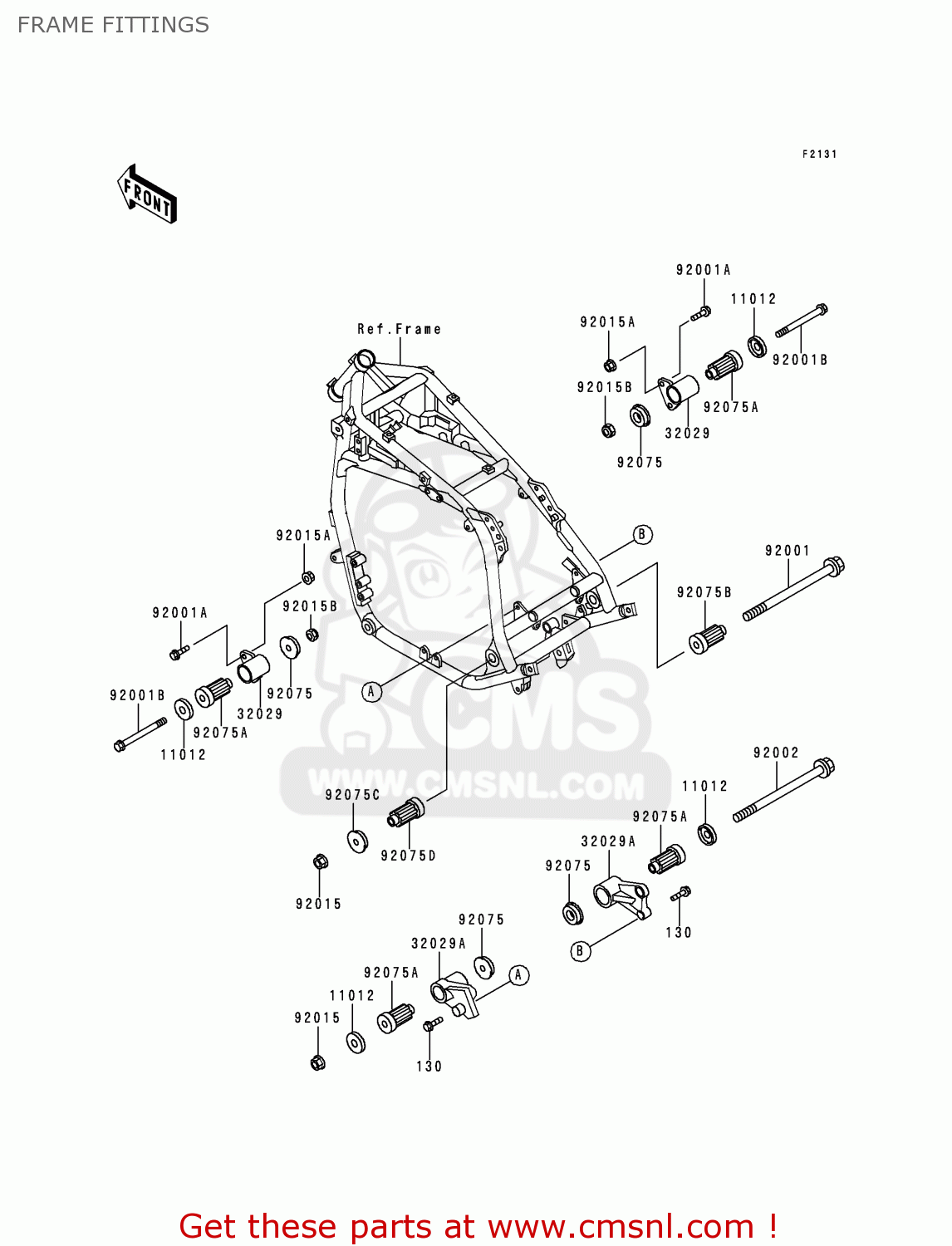

Frame fittings diagram ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0820
ref: 130

BOLT-FLANGED,8X20

€ 0.50

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291445
ref: 32029

ENGINE BRACKET,FRONT

€ 87.00

32029A

320291446
ref: 32029A

ENGINE BRACKET,REAR,UPPER

€ 23.50

92001

920011566
ref: 92001

BOLT,FLANGED,10X255,B

€ 14.00

92001A

920011613
ref: 92001A

BOLT,FLANGED,8X45

€ 3.00

92001B

920011751
ref: 92001B

BOLT,FLANGED,10X105,B

€ 7.00

92002

920021196
ref: 92002

BOLT,10X300

€ 14.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92015B

920151189
ref: 92015B

NUT,LOCK,10MM,BLACK

€ 4.50

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

92075B

920751733
ref: 92075B

DAMPER,ENGINE MOUNT

€ 10.00

92075C

920751738
ref: 92075C

DAMPER,ENGINE BRACKET

€ 16.00

92075D

920751739
ref: 92075D

DAMPER,ENGINE MOUNT,M

€ 32.50
