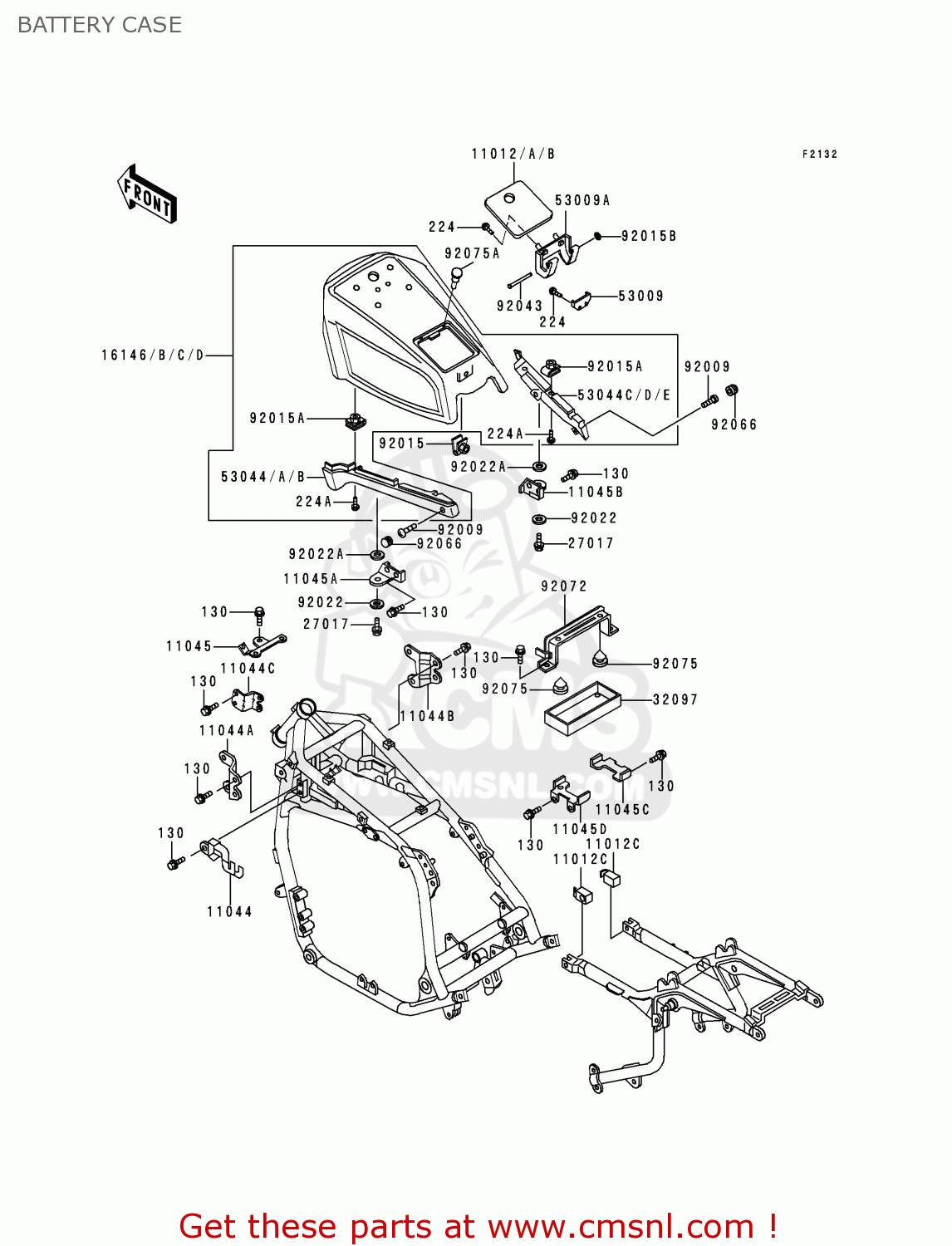

BATTERY CASE

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

11012B

1101214927X
ref: 11012B

DUMMY TANK CAP,PEARL BOULOGNE

€ 37.50

11012C

110121542
ref: 11012C

CAP

€ 8.00

11044

110441683
ref: 11044

RELAY BRACKET

€ 11.50

11044A

110441684
ref: 11044A

IGNITION COIL BRACKET

€ 7.50

11044B

110441685
ref: 11044B

IGNITION COIL BRACKET

€ 7.00

11044C

110441686
ref: 11044C

THERMOSTAT BRACKET

€ 5.50

11045

110451056
ref: 11045

FUSE BRACKET

€ 9.00

11045A

110451077
ref: 11045A

DUMMY TANK BRACKET,LH

€ 12.00

11045B

110451078
ref: 11045B

DUMMY TANK BRACKET,RH

€ 5.50

11045C

110451297
ref: 11045C

BATTERY BRACKET,RH

€ 7.50

11045D

110451729
ref: 11045D

BATTERY BRACKET,LH

€ 7.50

16146C

161465051A7
ref: 16146C

DUMMY TANK COVER ASSEMBLY,WHITE

€ 416.50

27017

270171124
ref: 27017

LOCK,DUMMY TANK

€ 5.50

32097

320971126
ref: 32097

BATTERY CASE

€ 12.50

53009

530091060
ref: 53009

DUMMY TANK HINGE

€ 3.50

53009A

530091066
ref: 53009A

DUMMY TANK CAP HINGE

€ 15.00

53044B

5304411387X
ref: 53044B

DUMMY TANK TRIM,LH,PEARL BOULOGNE

€ 31.00

53044E

5304411397X
ref: 53044E

DUMMY TANK TRIM,RH,PEARL BOULOGNE

€ 31.00

92009

920091258
ref: 92009

SCREW

€ 3.00

92015

920151569
ref: 92015

NUT,5MM

€ 4.50

92015A

920151573
ref: 92015A

NUT,5MM

€ 4.50

92015B

920151576
ref: 92015B

NUT,PUSH,2.6MM

€ 2.00

92022

920221776
ref: 92022

WASHER,WAVE,8MM

€ 3.00

92022A

920221808
ref: 92022A

WASHER,6.5MM

€ 2.50

92043

920431306
ref: 92043

PIN,2.6X88

€ 2.50

92066

920661243
ref: 92066

PLUG

€ 3.50

92072

920721194
ref: 92072

BATTERY BAND

€ 13.50

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

92075A

920751808
ref: 92075A

DAMPER,6X10X15

€ 1.50

224

224B0512
ref: 224

SCREW-PAN-WP-CROS

€ 2.00

224A

224B0516
ref: 224A

SCREW-PAN-WP-CROS

€ 0.50

all assemblies
