ACCESSORY(TRUNK)

ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA

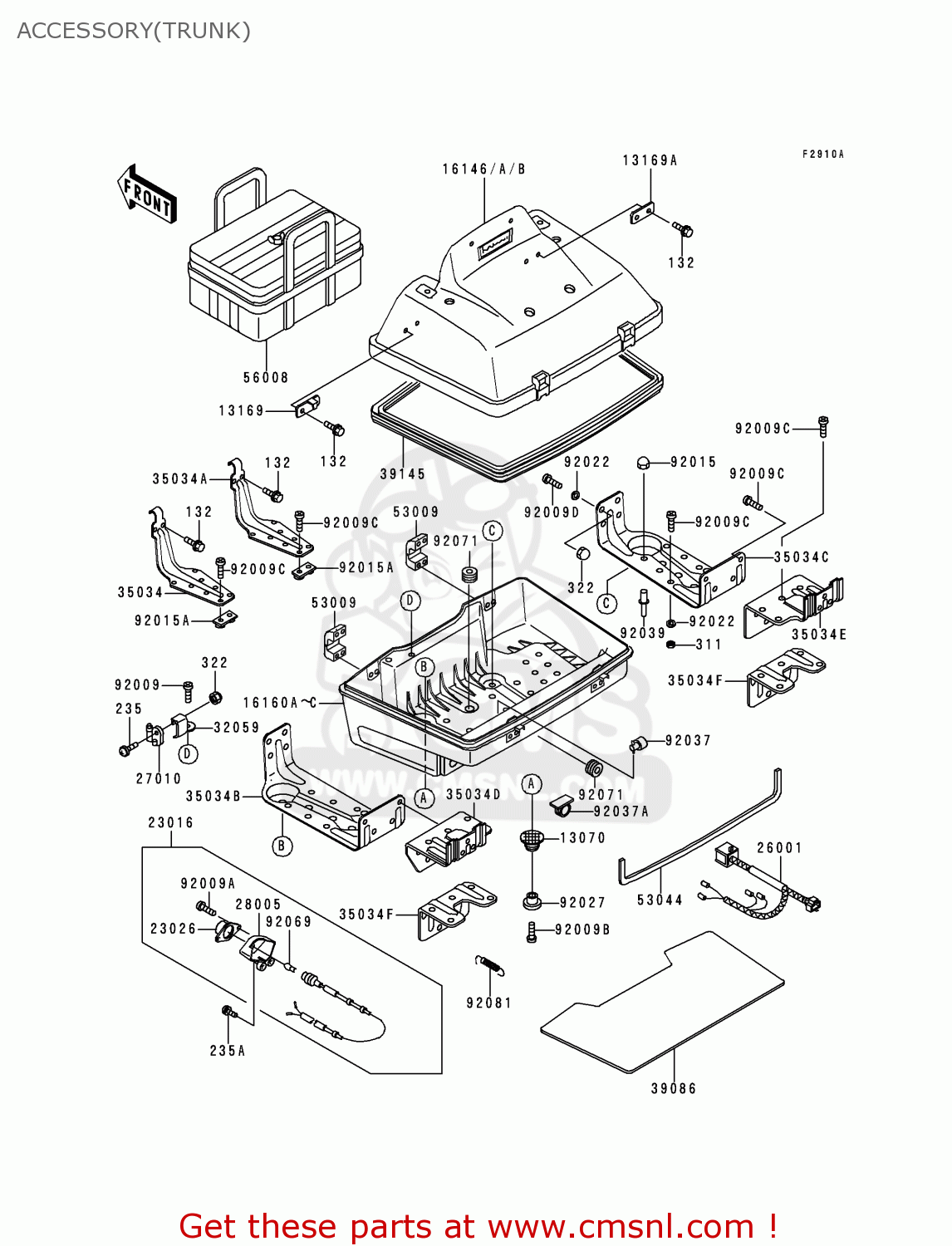

Accessory(trunk) diagram ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA

ACCESSORY(TRUNK) ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA
ACCESSORY(TRUNK) ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA
ACCESSORY(TRUNK) ZG1200B12 VOYAGER XII 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13070
130701149
ref: 13070
GUIDE
130701149
€ 6.00
13169
131691635
ref: 13169
HINGE PLATE,LH
€ 4.50
13169A
131691636
ref: 13169A
HINGE PLATE,RH
€ 3.00
16146B
161461085VG
ref: 16146B
TRUNK COVER ASSEMBLY,PEARL BOULOGNE
€ 823.00
16160B
161605028A9
ref: 16160B
TRUNK BODY,PEARL BOULOGNE/PEARL GREENISH BLACK
€ 823.00
23016
230161066
ref: 23016
TRUNK ROOM LAMP ASSEMBLY
230161066
€ 40.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
230261054
€ 7.00
26001
260011758
ref: 26001
TRUNK HARNESS
€ 19.50
27010
270101185
ref: 27010
SWITCH,BRAKE/SIDE STA
270101185
€ 25.50
28005
280051054
ref: 28005
TRUNK ROOM LAMP BODY
€ 7.00
32059
320591067
ref: 32059
SWITCH BRACKET
€ 4.50
35034
350341213
ref: 35034
HINGE REINFORCE,LH
€ 29.00
35034A
350341214
ref: 35034A
HINGE REINFORCE,RH
€ 29.00
35034B
350341215
ref: 35034B
REINFORCE,BAG,LH
€ 76.00
35034C
350341216
ref: 35034C
REINFORCE,BAG,RH
€ 76.00
35034D
350341217
ref: 35034D
REINFORCE
€ 31.50
35034E
350341218
ref: 35034E
REINFORCE
€ 31.50
35034F
350341219
ref: 35034F
REINFORCE
€ 28.50
39086
390861051
ref: 39086
PAD-STORAGE,TRUNK
€ 143.00
39145
391451087
ref: 39145
TRIM-SEAL, TRUNK
€ 51.00
53009
530091071
ref: 53009
HINGE, TRUNK
€ 47.00
53044
530441142
ref: 53044
TAIL LAMP TRIM
€ 6.00
56008
560081060
ref: 56008
BAG
€ 140.50
92009
920091332
ref: 92009
SCREW,TAPPING,5X10
920091332
€ 2.50
92009A
920091381
ref: 92009A
SCREW,TAPPING,4X12
920091381
€ 2.00
92009B
920091400
ref: 92009B
SCREW,6X22
920091400
€ 3.50
92009C
920091448
ref: 92009C
SCREW
€ 2.50
92009D
920091489
ref: 92009D
SCREW
€ 2.50
92015
920151262
ref: 92015
NUT,LOCK 6MM
920151262
€ 3.50
92015A
920151620
ref: 92015A
NUT
€ 4.50
92022
920221830
ref: 92022
WASHER
€ 2.00
132
132J0512
ref: 132
BOLT-FLANGED-SMALL,5X
€ 2.00
235
235C0414
ref: 235
SCREW-PAN-WP-CROS
€ 2.00
235A
235C0430
ref: 235A
SCREW-PAN-WP-CROS
€ 2.50
311
311C0400
ref: 311
NUT-HEX
311C0400
€ 0.50
322
322C0400
ref: 322
NUT-CAP,4MM
€ 2.00
92027
92027195
ref: 92027
COLLAR
92027195
€ 4.00
92037
920371290
ref: 92037
CLAMP,CARBURETOR
920371290
€ 4.50
92037A
920371793
ref: 92037A
CLAMP,HARNESS
€ 4.00
92039
920391150
ref: 92039
RIVET
€ 2.50
92069
920691066
ref: 92069
BULB,12V 3CP
€ 3.00
92071
920711136
ref: 92071
GROMMET
€ 4.50
92081
920811954
ref: 92081
HARNESS SPRING GUIDE
€ 8.00
