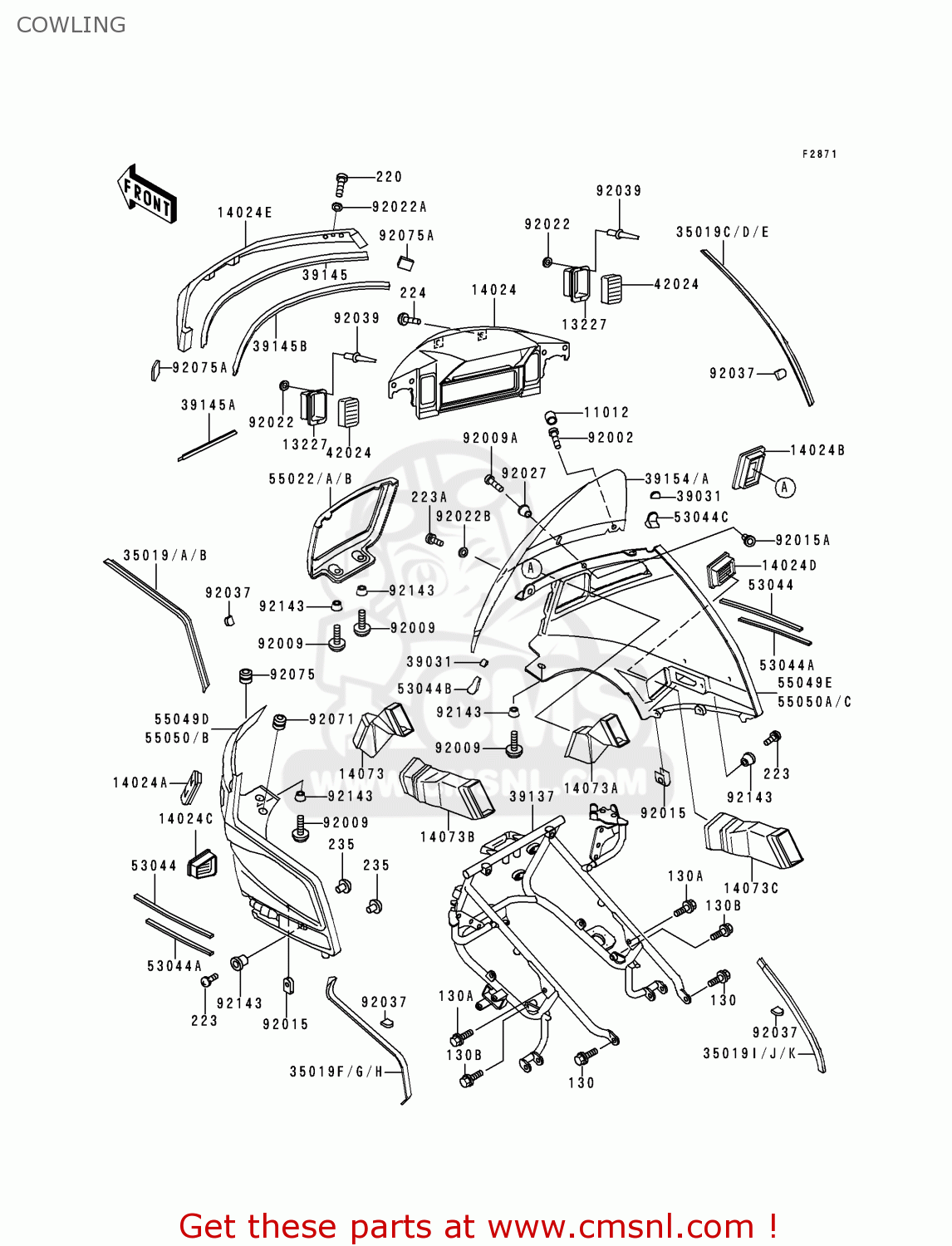

COWLING

ref

part #

description

quantity

11012

110121550
ref: 11012

CAP

€ 4.50

13227

132271012
ref: 13227

HOUSING, SHUTTER

€ 8.00

14024

140241186
ref: 14024

COVER,METER

€ 345.50

14024A

140241192
ref: 14024A

COVER,LOUVER, UPP,LH

€ 61.00

14024B

140241193
ref: 14024B

COVER,LOUVER,UPP,RH

€ 62.00

14024C

140241194
ref: 14024C

COVER,LOUVER,LWR,LH

€ 38.50

14024D

140241195
ref: 14024D

COVER, LOUVER,LWR,RH

€ 36.00

14024E

140241280
ref: 14024E

COVER,WINDSHIELD

€ 200.50

14073

140731245
ref: 14073

DUCT,COWLING,UPP,LH

€ 41.50

14073A

140731246
ref: 14073A

DUCT,COWLING,UPP,RH

€ 29.50

14073B

140731247
ref: 14073B

DUCT,COWLING,LWR,LH

€ 39.50

14073C

140731248
ref: 14073C

DUCT,COWLING,LWR,RH

€ 45.50

35019B

3501912017X
ref: 35019B

FLAP,UPPER,LH,PEARL BOULOGNE

€ 67.50

35019E

3501912027X
ref: 35019E

FLAP,UPPER,RH,PEARL BOULOGNE

€ 67.50

35019H

3501912037X
ref: 35019H

FLAP,LOWER,LH,PEARL BOULOGNE

€ 52.50

35019K

3501912047X
ref: 35019K

FLAP,LOWER,RH,PEARL BOULOGNE

€ 52.50

39031

390311058
ref: 39031

END CAP

€ 2.50

39137

391371057
ref: 39137

STAY-COMP,COWLING

€ 450.50

39145

391451072
ref: 39145

TRIM-SEAL,WINDSHIELD

€ 29.50

39145A

391451081
ref: 39145A

SEAL TRIM

€ 3.00

39145B

391451082
ref: 39145B

METER COVER SEAL TRIM

€ 20.00

39154

391541126
ref: 39154

WINDSHIELD

€ 470.00

42024

420241002
ref: 42024

SHUTTER,LOUVER

€ 15.00

53044

530441150
ref: 53044

TRIM,COWLING SIDE,UPP

€ 11.50

53044A

530441151
ref: 53044A

TRIM,COWLING SIDE,LWR

€ 12.50

53044B

530441181
ref: 53044B

TRIM,WINDSHIELD,LH

€ 18.00

53044C

530441182
ref: 53044C

TRIM,WINDSHIELD,RH

€ 18.00

55022B

5502210547X
ref: 55022B

HEADLAMP COVER,PEARL BOULOGNE

€ 75.50

130

130D0812
ref: 130

BOLT-FLANGED

€ 0.50

130A

130D0835
ref: 130A

BOLT-FLANGED,8X35

€ 0.50

130B

130D0850
ref: 130B

BOLT-FLANGED,8X50

€ 1.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

223

223C0616
ref: 223

SCREW-PAN-WS

€ 2.50

223A

223C0625
ref: 223A

SCREW-PAN-WS-CROS,6X2

€ 2.50

224

224C0510
ref: 224

SCREW-PAN-WP-CROS

€ 2.50

235

235B0408
ref: 235

SCREW-PAN-WP-CROS

€ 1.50

55050

550505104B2
ref: 55050

COWLING,UPPER,LH,GREEN/BLACK/BLACK

€ 566.00

55050A

550505105B2
ref: 55050A

COWLING,UPP,RH,GRN/BL

€ 1,770.50

92002

920021830
ref: 92002

BOLT

€ 6.00

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92009A

920091427
ref: 92009A

SCREW,5X14

€ 2.50

92015

920151343
ref: 92015

NUT,5MM,COWLING

€ 3.00

92015A

920151710
ref: 92015A

NUT

€ 4.00

92022

920221516
ref: 92022

WASHER,3.3X8X0.5

€ 1.50

92022A

920221653
ref: 92022A

WASHER,5.3X10X0.8

€ 2.00

92022B

920221808
ref: 92022B

WASHER,6.5MM

€ 2.50

92027

92027194
ref: 92027

COLLAR

€ 3.50

92037

920371943
ref: 92037

CLAMP,FLAP

€ 3.50

92039

920391041
ref: 92039

RIVET

€ 2.50

92071

920711042
ref: 92071

GROMMET

€ 4.50

92075

920751629
ref: 92075

DAMPER,SEAT COVER KIT

€ 3.00

92075A

920751883
ref: 92075A

DAMPER

€ 2.50

92143

921431025
ref: 92143

COLLAR,L=6.5

€ 4.00
