Genuine ZG Kawasaki Parts delivered quickly!


IGNITION SWITCH(ZG1000-A7)

ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

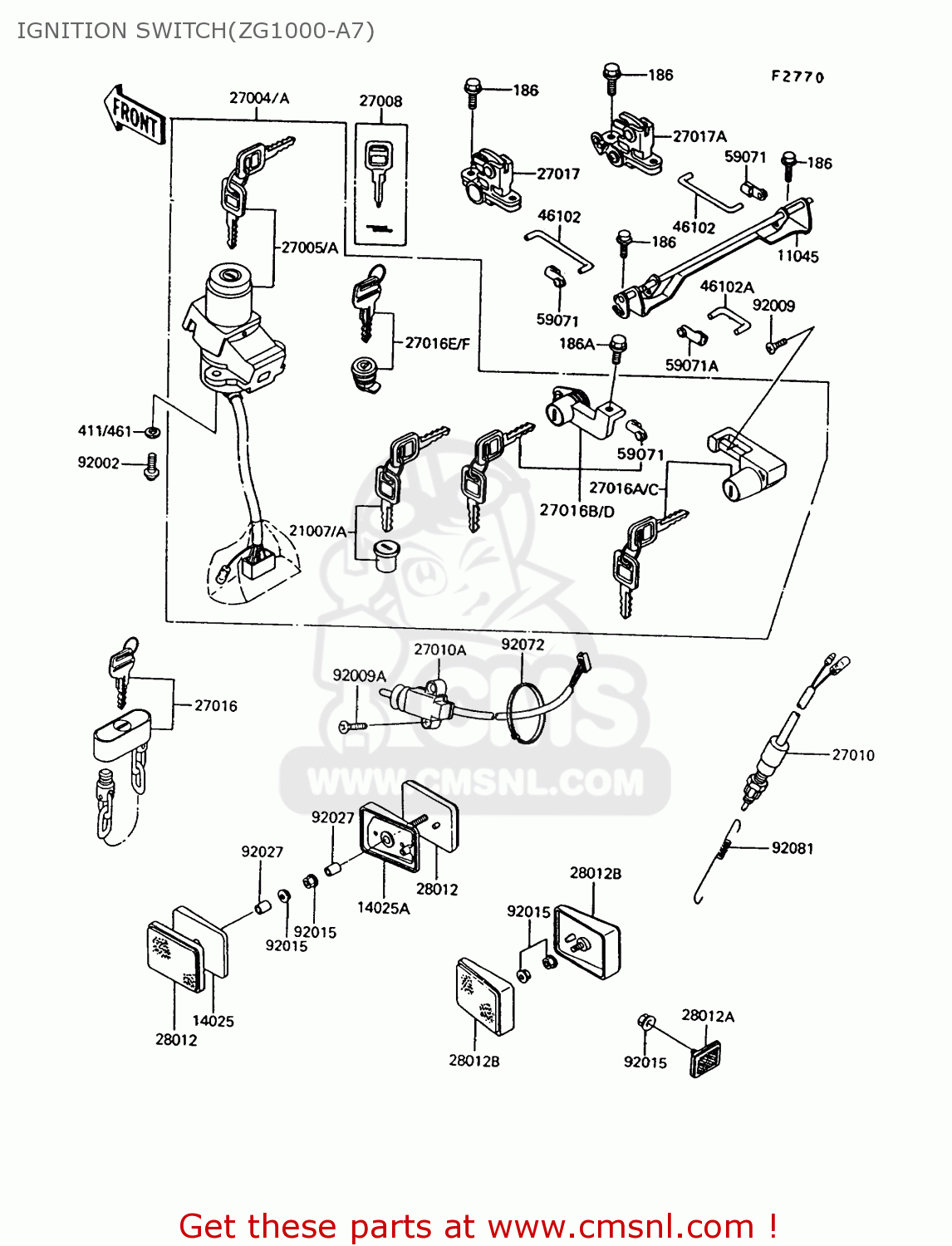

Ignition switch(zg1000-a7) diagram ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

IGNITION SWITCH(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
IGNITION SWITCH(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
IGNITION SWITCH(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
prices are in EUR
ref
part #
description
quantity
11045
110451544
ref: 11045
BRACKET,SEAT LOCK
€ 26.00
14025
140251886
ref: 14025
AR
COVER,REFLECTOR,FR
140251886
€ 9.50
14025A
140251887
ref: 14025A
AR
COVER,REFLECTOR,FR
140251887
€ 9.50
21007
210075017
ref: 21007
AREUFRSTUK
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075018
ref: 21007A
FGNR
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045313
ref: 27004
FGNR
SWITCH-ASSY
€ 288.00
27004A
270045314
ref: 27004A
AREUFRSTUK
SWITCH-ASSY
270045314
€ 231.50
27005
270055065
ref: 27005
AREUFRSTUK
SWITCH-ASSY-IGNITION
€ 144.50
27005A
270055066
ref: 27005A
FGNR
SWITCH-ASSY-IGNITION
€ 150.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
270101019
€ 23.00
27010A
270101220
ref: 27010A
SWITCH,SIDE STAND
270101220
€ 60.00
27016
270161051
ref: 27016
LOCK-ASSY,WHEEL
270161051
€ 104.50
27016A
270165111
ref: 27016A
AREUFRSTUK
LOCK-ASSY,HELMET
€ 56.50
27016B
270165112
ref: 27016B
AREUFRSTUK
LOCK-ASSY,SEAT
€ 67.50
27016C
270165113
ref: 27016C
FGNR
LOCK-ASSY,HELMET
€ 35.00
27016D
270165114
ref: 27016D
FGNR
LOCK-ASSY,SEAT
€ 35.00
27016E
270165125
ref: 27016E
AREUFRSTUK
LOCK-ASSY
270165125
€ 48.00
27016F
270165126
ref: 27016F
FGNR
LOCK-ASSY
€ 48.00
27017
270171112
ref: 27017
LOCK,SEAT,LH
€ 61.50
27017A
270171113
ref: 27017A
LOCK,SEAT,RH
€ 61.50
28012
280121052
ref: 28012
AR
REFLECTOR-REFLEX,FR
280121052
€ 17.50
28012A
280121054
ref: 28012A
REFLECTOR-REFLEX,RR
280121054
€ 15.00
28012B
280121060
ref: 28012B
AR
REFLECTOR-REFLEX
280121060
€ 23.50
46102
461021187
ref: 46102
ROD,SEAT LOCK,FR
€ 5.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
186A
186C0616
ref: 186A
BOLT-UPSET-WP
€ 2.50
411
411E0600
ref: 411
AREUFRSTUK
W-PLAIN-S
411E0600
€ 0.50
461
461L0600
ref: 461
FGNR
WASHER-SPRING
€ 0.50
46102A
461021188
ref: 46102A
ROD,SEAT LOCK,RR
€ 2.50
59071
590711103
ref: 59071
JOINT
590711103
€ 5.50
59071A
590711125
ref: 59071A
JOINT
590711125
€ 5.00
92002
920021333
ref: 92002
BOLT
920021333
€ 1.50
92009
920091401
ref: 92009
SCREW
920091401
€ 2.50
92009A
920091459
ref: 92009A
SCREW
920091459
€ 2.50
92015
920151259
ref: 92015
EUFGFRNRSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92027
920271789
ref: 92027
AR
COLLAR,5X8X14.5
920271789
€ 3.00
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92081
920811990
ref: 92081
SPRING,BRAKE LAMP SWI
€ 4.00
