COWLING(ZG1000-A7)

ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

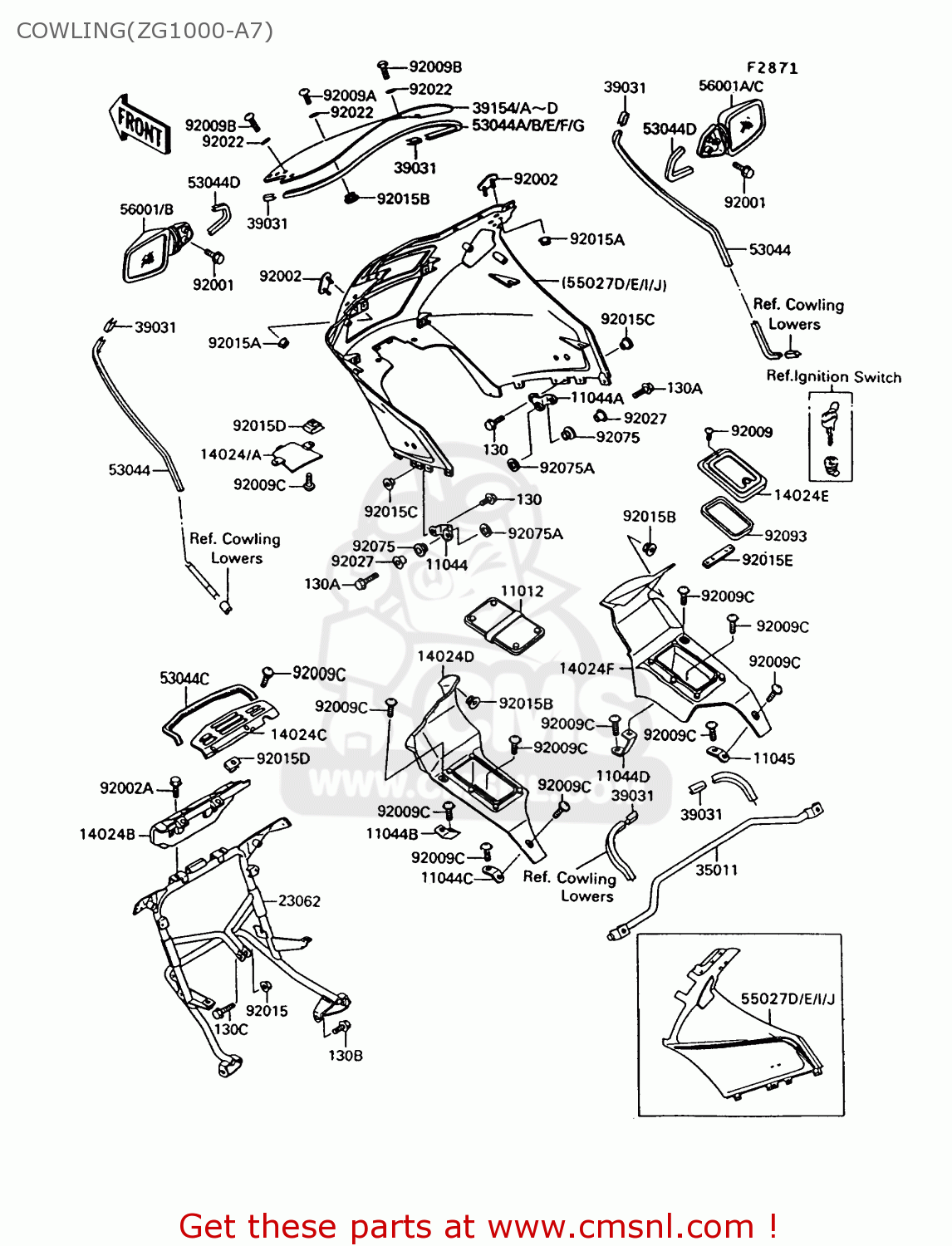

Cowling(zg1000-a7) diagram ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

COWLING(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
COWLING(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
COWLING(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
prices are in EUR
ref
part #
description
quantity
11012
110121546
ref: 11012
CAP,INNER COWLING
110121546
€ 28.50
11044
110441907
ref: 11044
BRACKET,UPPER COWLING
110441907
€ 7.00
11044A
110441908
ref: 11044A
BRACKET,UPPER COWLING
110441908
€ 7.00
11044B
110441909
ref: 11044B
BRACKET,INNER COWLING
€ 4.50
11044C
110441910
ref: 11044C
BRACKET,INNER COWLING
110441910
€ 4.50
11044D
110441922
ref: 11044D
BRACKET,INNER COWLING
110441922
€ 4.50
11045
110451612
ref: 11045
BRACKET,INNER COWLING
110451612
€ 4.00
14024
140241252A5
ref: 14024
AREUFRNR
COVER,UPPER COWLING,L
140241252A5
€ 52.00
14024A
140241252H8
ref: 14024A
AREUFGFRSTUK
COVER,UPPER COWLING,L
140241252H8
€ 51.50
14024B
140241255
ref: 14024B
COVER,HORN,RR
140241255
€ 52.50
14024C
140241256
ref: 14024C
COVER,INNER COWLING,C
140241256
€ 52.50
14024D
140241422
ref: 14024D
COVER,INNER COWLING,U
140241422
€ 49.00
14024E
140241472
ref: 14024E
COVER,INNER COWLING C
140241472
€ 25.50
14024F
140241473
ref: 14024F
COVER,INNER COWLING,U
140241473
€ 77.50
23062
230621068
ref: 23062
BRACKET-COMP,UPPER CO
230621068
€ 241.00
35011
350111340
ref: 35011
STAY,SIDE COWLING
350111340
€ 66.00
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39154
391541094
ref: 39154
FG
WINDSHIELD,SHORT TYPE
€ 523.00
39154A
391541094
ref: 39154A
AREUFRNRSTUK
WINDSHIELD,SHORT TYPE
€ 523.00
39154B
391541095
ref: 39154B
AREUFRNRSTUK
WINDSHIELD,LONG TYPE
€ 458.50
39154C
391541095
ref: 39154C
FG
WINDSHIELD,LONG TYPE
€ 458.50
39154D
391541096
ref: 39154D
WINDSHIELD,SUPER LONG
€ 481.50
53044
530441157
ref: 53044
TRIM,COWLING
530441157
€ 18.50
53044A
530441164
ref: 53044A
FG
TRIM,WINDSHIELD,SHORT
€ 16.50
53044B
530441164
ref: 53044B
AREUFRNRSTUK
TRIM,WINDSHIELD,SHORT
€ 16.50
53044C
530441172
ref: 53044C
TRIM,INNER COWLING
530441172
€ 8.00
53044D
530441173
ref: 53044D
TRIM,MIRROR
530441173
€ 5.50
53044E
530441192
ref: 53044E
AREUFRNRSTUK
TRIM,WINDSHIELD,LONG
530441192
€ 17.50
53044F
530441192
ref: 53044F
FG
TRIM,WINDSHIELD,LONG
530441192
€ 17.50
53044G
530441196
ref: 53044G
TRIM,WINDSHIELD,SUPER
530441196
€ 16.50
55027D
550275037A5
ref: 55027D
EUFRNR
COWLING-ASSY,UPP,OUTE
€ 736.00
55027E
550275038A5
ref: 55027E
AR
COWLING-ASSY,UPP,OUTE
€ 726.00
55027I
550275048H8
ref: 55027I
AR
COWLING-ASSY,UPP,OUTE
€ 736.00
55027J
550275049H8
ref: 55027J
EUFGFRSTUK
COWLING-ASSY,UPP,OUTE
€ 750.00
56001
560011333
ref: 56001
EUFRUK
MIRROR-ASSY,LH
560011333
€ 156.50
56001A
560011334
ref: 56001A
EUFRUK
MIRROR-ASSY,RH
560011334
€ 156.50
56001B
560011335
ref: 56001B
ARFGNRST
MIRROR-ASSY,LH
560011335
€ 140.50
56001C
560011336
ref: 56001C
ARFGNRST
MIRROR-ASSY,RH
560011336
€ 139.00
92001
920011847
ref: 92001
BOLT,6X14,BLACK
920011847
€ 2.50
92002
920021800
ref: 92002
BOLT,"U"
920021800
€ 7.00
92002A
920021884
ref: 92002A
BOLT,6X12
920021884
€ 2.50
92009
920091108
ref: 92009
SCREW,4X16
920091108
€ 2.00
92009A
920091653
ref: 92009A
SCREW
920091653
€ 2.50
92009B
920091656
ref: 92009B
SCREW
920091656
€ 2.50
92009C
920091662
ref: 92009C
SCREW
920091662
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151237
ref: 92015A
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92015B
920151343
ref: 92015B
NUT,5MM,COWLING
920151343
€ 3.00
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
130C
130J0830
ref: 130C
BOLT-FLANGED,8X30
130J0830
€ 2.50
92015C
920151394
ref: 92015C
NUT,STAY,6MM
920151394
€ 2.50
92015D
920151602
ref: 92015D
NUT,6MM
920151602
€ 4.50
92015E
920151661
ref: 92015E
NUT,PLATE,4MM
920151661
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92075
92075174
ref: 92075
DAMPER,MALE
92075174
€ 3.00
92075A
92075175
ref: 92075A
DAMPER,FEMALE
92075175
€ 2.50
92093
920931239
ref: 92093
SEAL,FAIRING POCKET
920931239
€ 4.00
