Genuine ZG Kawasaki Parts delivered quickly!


CARBURETOR(1/4)

ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

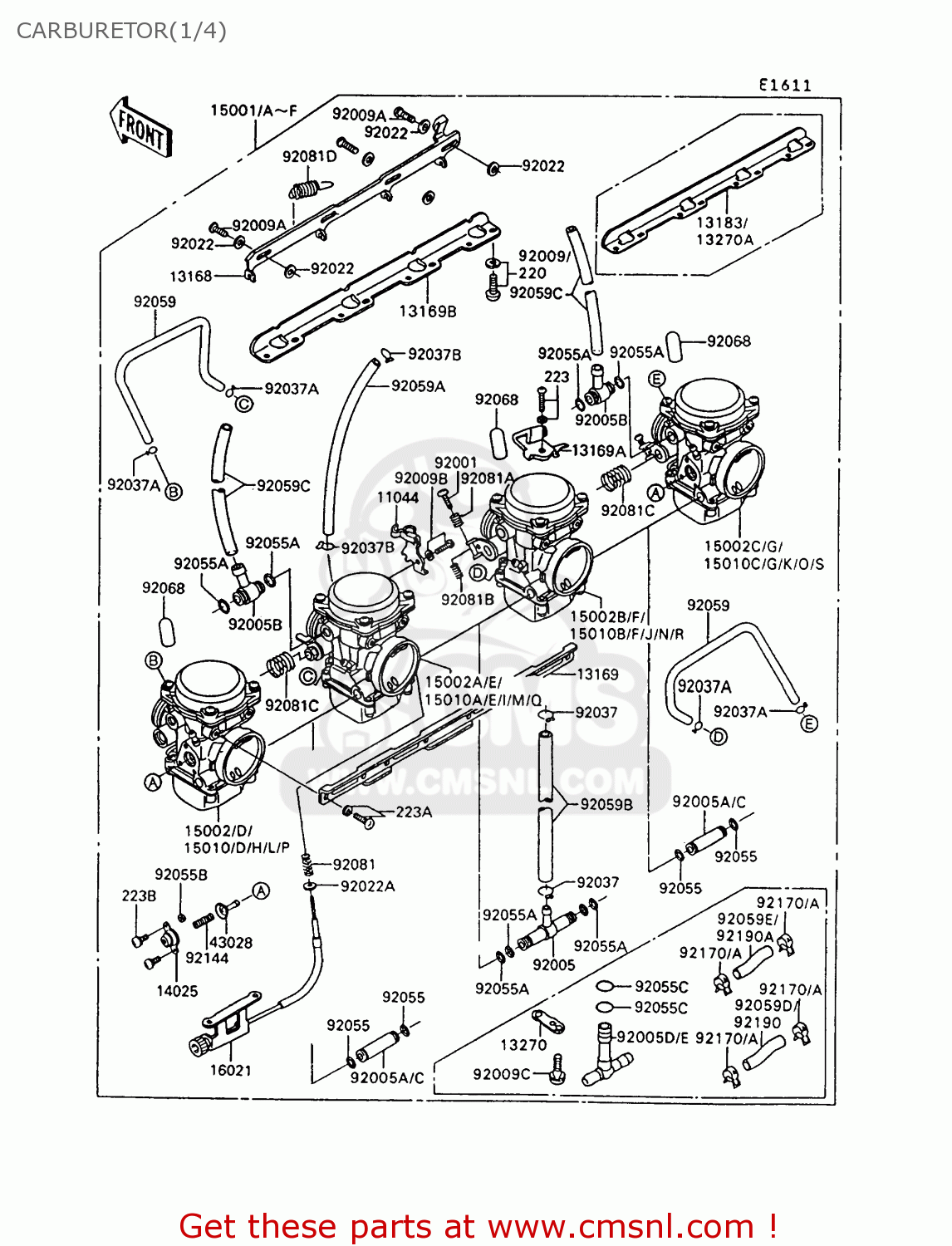

Carburetor(1/4) diagram ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

CARBURETOR(1/4) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
CARBURETOR(1/4) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
CARBURETOR(1/4) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
110441546
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
131691869
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13169B
131691873
ref: 13169B
AREUFGFRNRST
PLATE,CARBURETOR STAY
€ 85.00
13183
131831330
ref: 13183
UK
PLATE,CARBURETOR STAY
€ 62.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
15001
150011431
ref: 15001
ST
CARBURETOR-ASSY
€ 2,273.00
15001A
150011492
ref: 15001A
AR
CARBURETOR-ASSY
€ 2,231.00
15001B
150011620
ref: 15001B
EUFGFRNR
CARBURETOR-ASSY
€ 3,121.50
15001C
150011625
ref: 15001C
UK
CARBURETOR-ASSY
€ 2,231.00
15002
150021620
ref: 15002
ST
CARBURETOR,LH,OUTSIDE
€ 686.50
15002A
150021621
ref: 15002A
ST
CARBURETOR,LH,INSIDE
€ 686.50
15002B
150021622
ref: 15002B
ST
CARBURETOR,RH,INSIDE
€ 686.50
15002C
150021623
ref: 15002C
ST
CARBURETOR,RH,OUTSIDE
€ 686.50
15002D
150021777
ref: 15002D
AR
CARBURETOR,LH,OUTSIDE
€ 673.50
15002E
150021778
ref: 15002E
AR
CARBURETOR,LH,INSIDE
€ 673.50
15002F
150021779
ref: 15002F
AR
CARBURETOR,RH,INSIDE
€ 673.50
15002G
150021780
ref: 15002G
AR
CARBURETOR,RH,OUTSIDE
€ 673.50
15010
150101043
ref: 15010
EUFGFRNR
CARBURETOR,LH,OUTSIDE
€ 1,003.00
15010A
150101044
ref: 15010A
EUFGFRNR
CARBURETOR,LH,INSIDE
€ 1,003.00
15010B
150101045
ref: 15010B
EUFGFRNR
CARBURETOR,RH,INSIDE
€ 1,003.00
15010C
150101046
ref: 15010C
EUFGFRNR
CARBURETOR,RH,OUTSIDE
€ 1,003.00
15010D
150101047
ref: 15010D
UK
CARBURETOR,LH,OUTSIDE
€ 673.50
15010E
150101048
ref: 15010E
UK
CARBURETOR,LH,INSIDE
€ 673.50
15010F
150101049
ref: 15010F
UK
CARBURETOR,RH,INSIDE
€ 673.50
15010G
150101050
ref: 15010G
UK
CARBURETOR,RH,OUTSIDE
€ 673.50
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
160211101
€ 83.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
430281053
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
920051108
€ 16.50
92005A
920051109
ref: 92005A
AREUFGFRNRST
FITTING,FUEL,I-TYPE
920051109
€ 25.00
92005B
920051125
ref: 92005B
FITTING,T-TYPE
920051125
€ 18.00
92005C
920051157
ref: 92005C
UK
FITTING
€ 25.00
92005D
920051234
ref: 92005D
UK
FITTING
920051234
€ 8.00
92009
920091129
ref: 92009
AREUFGFRNRST
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
920091262
€ 4.00
92009B
920091365
ref: 92009B
SCREW
920091365
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
920221480
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
920371075
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
920371142
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
920371477
€ 3.00
92055
920551004
ref: 92055
O RING
920551004
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
920551223
€ 3.50
92055B
920551245
ref: 92055B
RING-O
920551245
€ 3.50
92055C
920551427
ref: 92055C
UK
RING-O,4.5X1.5
920551427
€ 3.00
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
920591140
€ 17.50
92059A
920591173
ref: 92059A
TUBE,5X9X200
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591598
ref: 92059C
TUBE,6.5X9.5X260
€ 20.50
92059D
920591976
ref: 92059D
UK
TUBE,4X10X59
920591976
€ 9.00
92059E
920591977
ref: 92059E
UK
TUBE,4X10X70
920591977
€ 9.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92068
92068006
ref: 92068
ST
RUBBER PLUG
92068006
€ 2.50
92068
92068006
ref: 92068
AREUFGFRNRUK
RUBBER PLUG
92068006
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
920811617
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
920811622
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
920811762
€ 14.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
921441072
€ 6.50
92170
921701054
ref: 92170
UK
CLAMP,TUBE
921701054
€ 5.00
