Genuine ZG Kawasaki Parts delivered quickly!


COWLING LOWERS(ZG1000-A7)

ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

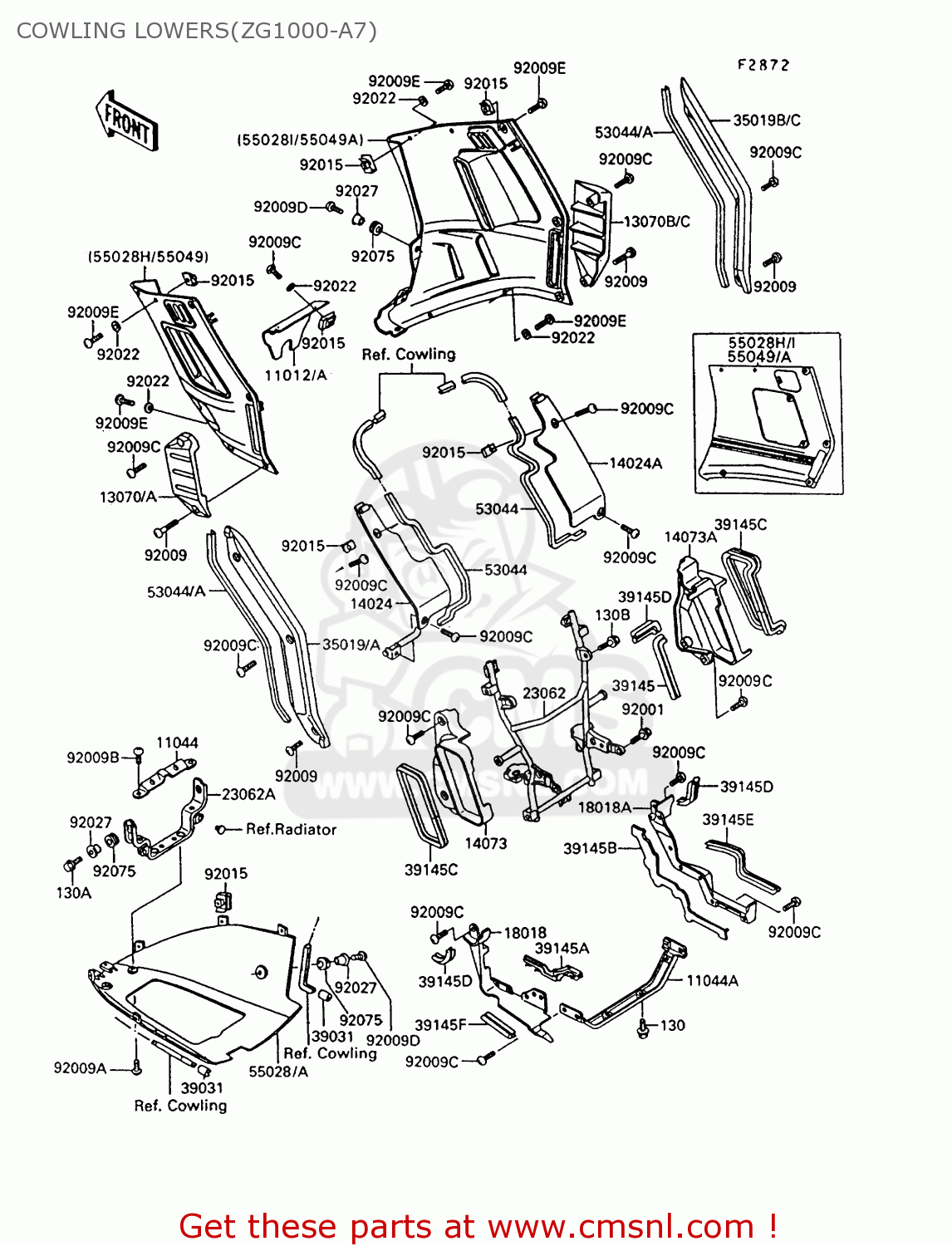

Cowling lowers(zg1000-a7) diagram ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST

COWLING LOWERS(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
COWLING LOWERS(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
COWLING LOWERS(ZG1000-A7) ZG1000A7 1000GTR 1992 EUROPE UK FR AR FG ST
prices are in EUR
ref
part #
description
quantity
11012
110121534A5
ref: 11012
AREUFRNR
CAP,RESERVOIR INSPECT
€ 44.50
11012A
110121534H8
ref: 11012A
AREUFGFRSTUK
CAP,RESERVOIR INSPECT
€ 44.50
11044
110441919
ref: 11044
BRACKET,RESERVOIR TAN
110441919
€ 5.50
11044A
110441920
ref: 11044A
BRACKET,LOWER COWLING
110441920
€ 25.50
13070
130701171
ref: 13070
AR
GUIDE,SIDE COWLING,LH
130701171
€ 32.00
13070A
130701171
ref: 13070A
EUFGFRNRSTUK
GUIDE,SIDE COWLING,LH
130701171
€ 32.00
13070B
130701172
ref: 13070B
AR
GUIDE,SIDE COWLING,RH
130701172
€ 30.50
13070C
130701172
ref: 13070C
EUFGFRNRSTUK
GUIDE,SIDE COWLING,RH
130701172
€ 30.50
14024
140241460
ref: 14024
COVER,INNER COWLING,S
140241460
€ 28.50
14024A
140241461
ref: 14024A
COVER,INNER COWLING,S
140241461
€ 28.50
14073
140731276
ref: 14073
DUCT,RADIATOR,RR,LH
140731276
€ 46.50
14073A
140731284
ref: 14073A
DUCT,RADIATOR,RR,RH
€ 81.50
18018
180181068
ref: 18018
PLATE-HEAT GUARD,SIDE
€ 76.50
18018A
180181069
ref: 18018A
PLATE-HEAT GUARD,SIDE
180181069
€ 81.50
23062
230621064
ref: 23062
BRACKET-COMP,RADIATOR
230621064
€ 216.50
23062A
230621065
ref: 23062A
BRACKET-COMP,LOWER CO
230621065
€ 24.50
35019
350191193
ref: 35019
EUFGFRNRSTUK
FLAP,SIDE COWLING,LH
350191193
€ 46.00
35019A
350191193
ref: 35019A
AR
FLAP,SIDE COWLING,LH
350191193
€ 46.00
35019B
350191194
ref: 35019B
EUFGFRNRSTUK
FLAP,SIDE COWLING,RH
350191194
€ 38.50
35019C
350191194
ref: 35019C
AR
FLAP,SIDE COWLING,RH
350191194
€ 38.50
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39145
391451056
ref: 39145
TRIM-SEAL,SIDE COWLIN
391451056
€ 10.50
39145A
391451076
ref: 39145A
TRIM-SEAL,HEAT GUARD
391451076
€ 15.00
39145B
391451077
ref: 39145B
TRIM-SEAL,HEAT GUARD
€ 30.50
39145C
391451078
ref: 39145C
TRIM-SEAL,DUCT
€ 23.00
39145D
391451079
ref: 39145D
TRIM-SEAL,HEAT GUARD
€ 6.00
39145E
391451080
ref: 39145E
TRIM-SEAL,HEAT GUARD,
€ 15.00
39145F
391451084
ref: 39145F
TRIM-SEAL,HEAT GUARD,
€ 14.50
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
53044
530441184
ref: 53044
AR
TRIM,INNER COWLING
530441184
€ 18.50
53044
530441184
ref: 53044
EUFGFRNRSTUK
TRIM,INNER COWLING
530441184
€ 18.50
53044A
530441184
ref: 53044A
AR
TRIM,INNER COWLING
530441184
€ 18.50
55028
550281124A5
ref: 55028
AREUFRNR
COWLING,LWR,C.P.RED
€ 282.00
55028A
550281124H8
ref: 55028A
AREUFGFRSTUK
COWLING,LWR,EBONY
€ 282.00
55028H
550285414A5
ref: 55028H
AREUFRNR
COWLING,SIDE,LH,C.P.R
€ 367.50
55028I
550285415A5
ref: 55028I
AREUFRNR
COWLING,SIDE,RH,C.P.R
€ 387.50
55049
550495098H8
ref: 55049
AREUFGFRSTUK
COWLING.,SIDE,LH,EBON
€ 367.50
55049A
550495099H8
ref: 55049A
AREUFGFRSTUK
COWLING.,SIDE,RH,EBON
€ 387.50
92001
920011844
ref: 92001
BOLT,FLANGED,10X41,BL
920011844
€ 5.00
92009
920091400
ref: 92009
SCREW,6X22
920091400
€ 3.50
92009A
920091402
ref: 92009A
SCREW,6X10
920091402
€ 1.50
92009B
920091651
ref: 92009B
SCREW
920091651
€ 2.50
92009C
920091662
ref: 92009C
SCREW
920091662
€ 2.50
92009D
920091663
ref: 92009D
SCREW
920091663
€ 2.50
92009E
920091664
ref: 92009E
SCREW
920091664
€ 2.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92022
920221818
ref: 92022
EUFGFRNRSTUK
WASHER,6X16X1
920221818
€ 1.50
92022
920221818
ref: 92022
AR
WASHER,6X16X1
920221818
€ 1.50
92027
920271935
ref: 92027
COLLAR,L=9.1,BLACK
920271935
€ 4.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
130A
130C0618
ref: 130A
BOLT-FLANGED
€ 1.50
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
