TAILLIGHT(S)
ZG1000A6 1000GTR 1991 AUSTRIA NR

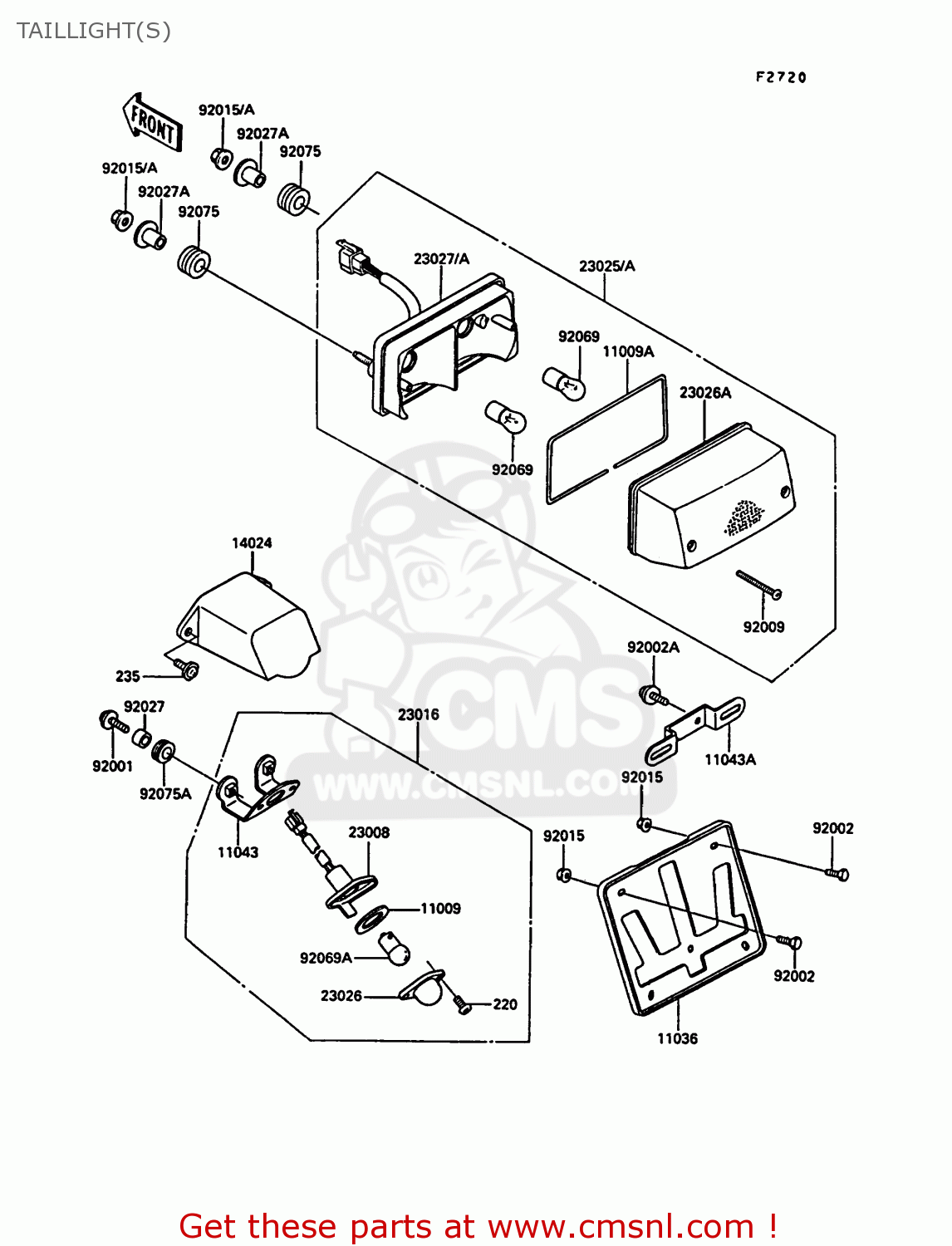

Taillight(s) diagram ZG1000A6 1000GTR 1991 AUSTRIA NR
TAILLIGHT(S) ZG1000A6 1000GTR 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
235
235C0616
ref: 235
SCREW-PAN-WP-CROS
€ 2.50
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091581
ref: 11009A
GASKET,TAIL LAMP (NAS)
€ 4.00
11043
110431497
ref: 11043
BRACKET,LICENSE PLATE
€ 10.00
11043A
110431499
ref: 11043A
BRACKET,REFLECTOR
€ 12.00
14024
140251821
ref: 14024
COVER,LICENSE PLATE L
€ 13.50
23008
230081221
ref: 23008
SOCKET-ASSY,LICENSE P
€ 7.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251140
ref: 23025
LAMP-TAIL
€ 218.00
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261079
ref: 23026A
LENS,TAIL LAMP
€ 28.00
23027A
230271071
ref: 23027A
BODY-COMP-TAIL LAMP
€ 69.00
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002A
920021351
ref: 92002A
BOLT
€ 2.50
92009
920091297
ref: 92009
SCREW,TAPPING,4X20
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92027
92027120
ref: 92027
COLLAR
€ 3.00
92027A
92027251
ref: 92027A
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92075A
92075222
ref: 92075A
DAMPER RUBBER,CASE
€ 4.50
