CARBURETOR(1/4)
ZG1000A6 1000GTR 1991 AUSTRIA NR

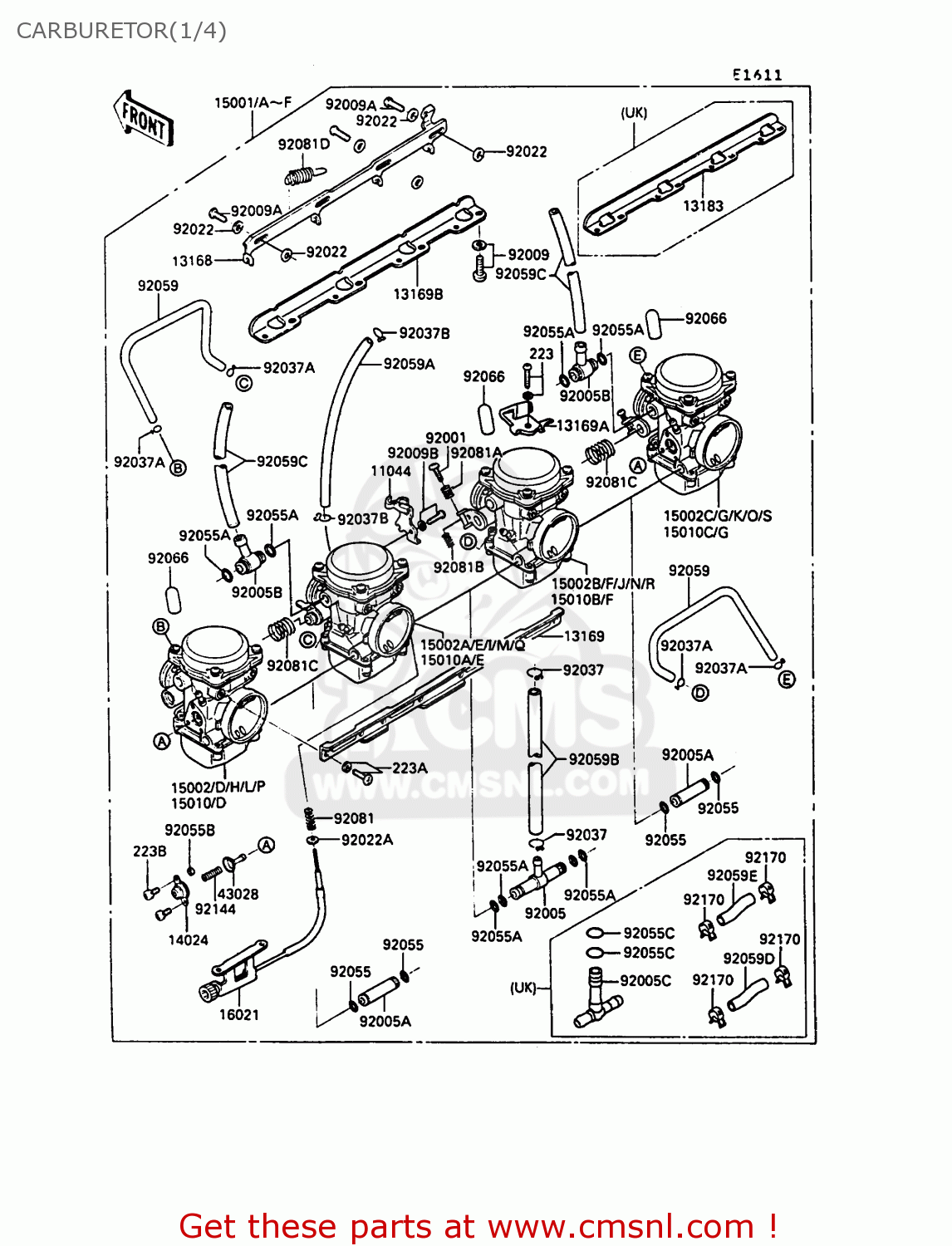

Carburetor(1/4) diagram ZG1000A6 1000GTR 1991 AUSTRIA NR
CARBURETOR(1/4) ZG1000A6 1000GTR 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13169B
131691873
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
14024
140251903
ref: 14024
COVER,AIR CUT VALVE
€ 43.00
15001D
150011492
ref: 15001D
AR
CARBURETOR-ASSY
€ 2,231.00
15001E
150011620
ref: 15001E
NR
CARBURETOR-ASSY
€ 3,121.50
15002P
150021777
ref: 15002P
AR
CARBURETOR,LH,OUTSIDE
€ 673.50
15002Q
150021778
ref: 15002Q
AR
CARBURETOR,LH,INSIDE
€ 673.50
15002R
150021779
ref: 15002R
AR
CARBURETOR,RH,INSIDE
€ 673.50
15002S
150021780
ref: 15002S
AR
CARBURETOR,RH,OUTSIDE
€ 673.50
15010
150101043
ref: 15010
NR
CARBURETOR,LH,OUTSIDE
€ 1,003.00
15010A
150101044
ref: 15010A
NR
CARBURETOR,LH,INSIDE
€ 1,003.00
15010B
150101045
ref: 15010B
NR
CARBURETOR,RH,INSIDE
€ 1,003.00
15010C
150101046
ref: 15010C
NR
CARBURETOR,RH,OUTSIDE
€ 1,003.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051125
ref: 92005B
FITTING,T-TYPE
€ 18.00
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92055B
920551245
ref: 92055B
RING-O
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591173
ref: 92059A
TUBE,5X9X200
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591598
ref: 92059C
TUBE,6.5X9.5X260
€ 20.50
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
€ 14.00
92144
921441072
ref: 92144
SPRING,AIR CUT VALVE
€ 6.50
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
