FENDER
ZG1000A6 1000GTR 1991 AUSTRIA NR

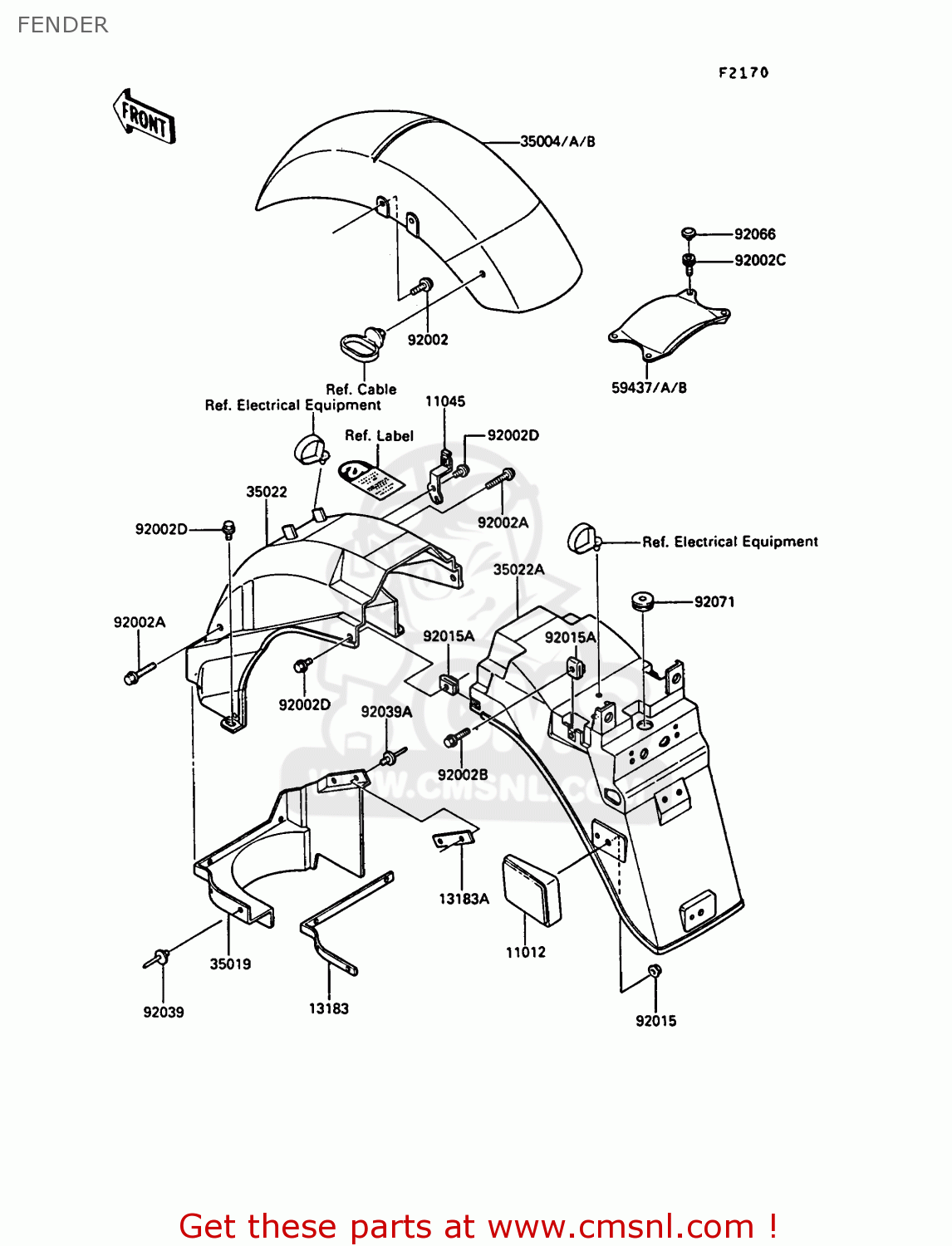

Fender diagram ZG1000A6 1000GTR 1991 AUSTRIA NR
FENDER ZG1000A6 1000GTR 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
11012
110121521
ref: 11012
NR
CAP,REFLECTOR
€ 11.00
11045
110441782
ref: 11045
BRACKET,RR BRAKE RESE
€ 7.00
13183
131831021
ref: 13183
PLATE,REAR FENDER FLA
€ 10.00
13183A
131831022
ref: 13183A
PLATE,REAR FENDER FLA
€ 4.00
35004
350041191CR
ref: 35004
NR
FENDER-FRONT,RED/BLAC
€ 218.50
35004A
350041191M3
ref: 35004A
NR
FENDER-FRONT,BLACK/BL
€ 208.50
35004B
350041191W6
ref: 35004B
AR
FENDER-FRONT,WHITE/BL
€ 204.50
35019
350191183
ref: 35019
FLAP,REAR FENDER,FR
€ 63.00
35022
350221223
ref: 35022
FENDER-COMP-REAR,FR
€ 125.00
35022A
3502212246Z
ref: 35022A
FENDER-COMP-REAR,RR,B
€ 113.00
59437
594371056A5
ref: 59437
NR
STABILIZER,C.P.RED
€ 69.50
59437A
594371056M4
ref: 59437A
NR
STABILIZER,L.P.BLUE
€ 70.50
59437B
594371056R1
ref: 59437B
AR
STABILIZER,P.A.WHITE
€ 69.50
92002
920021219
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021707
ref: 92002A
BOLT,6X55
€ 2.50
92002B
920021711
ref: 92002B
BOLT,6X40
€ 2.50
92002C
920021835
ref: 92002C
BOLT
€ 5.50
92002D
920021852
ref: 92002D
BOLT
€ 2.50
92015
920151259
ref: 92015
NR
NUT,FLANGED,5MM
€ 2.50
92015A
920151602
ref: 92015A
NUT,6MM
€ 4.50
92039
920391106
ref: 92039
RIVET
€ 1.00
92039A
920391147
ref: 92039A
RIVET
€ 3.00
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
92071
920711058
ref: 92071
GROMMET,SENSOR LEAD
€ 3.50
