FRAME FITTING

ZG1000A6 1000GTR 1991 AUSTRIA NR

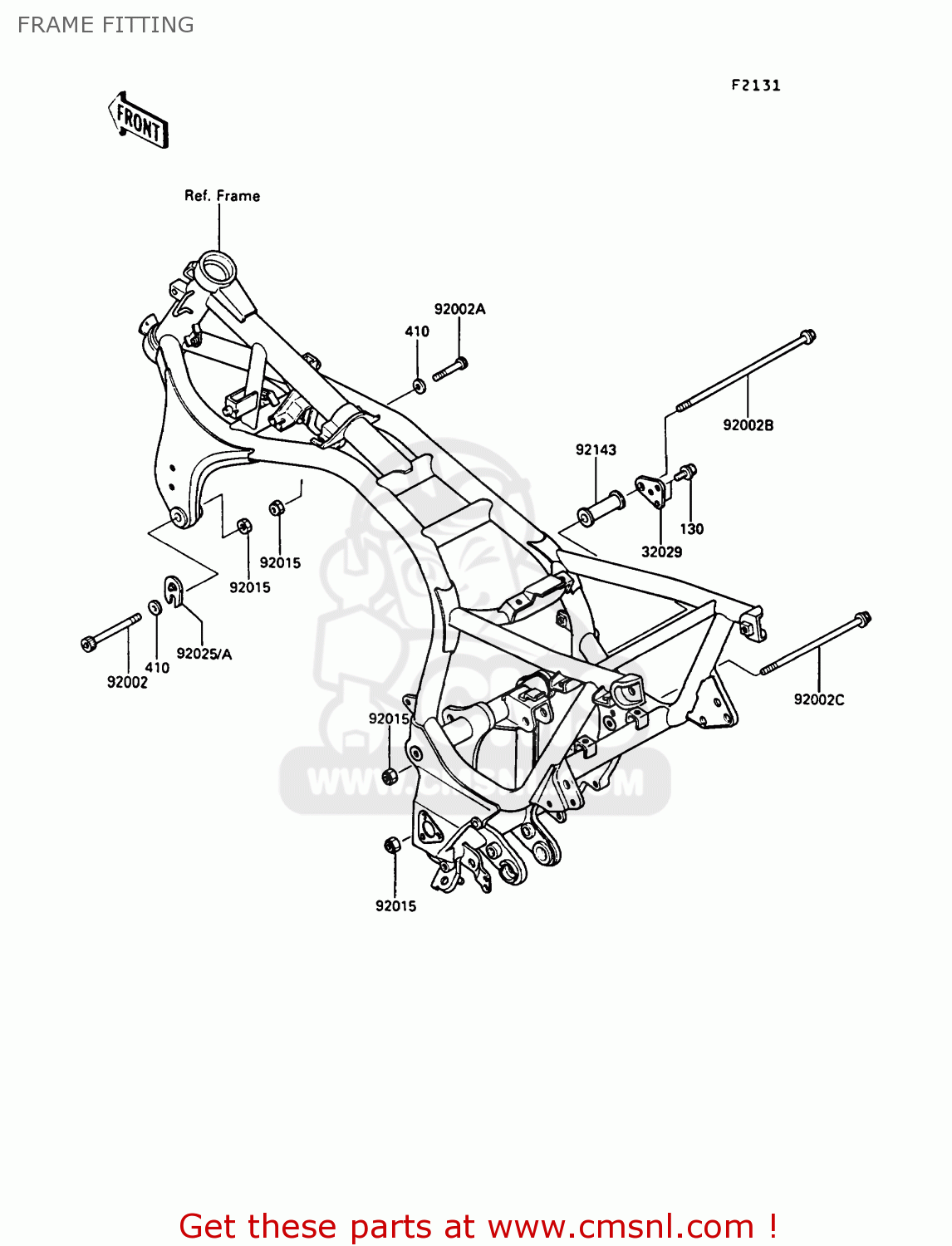

Frame fitting diagram ZG1000A6 1000GTR 1991 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

130

130J0812
ref: 130

BOLT-FLANGED

€ 0.50

410

410B1000
ref: 410

WASHER-PLAIN-SMALL,10

€ 0.50

32029

320291473
ref: 32029

BRACKET-ENGINE,RR,UPP

€ 13.00

92002

920011888
ref: 92002

BOLT,SOCKET,10X100

€ 8.00

92002A

920011889
ref: 92002A

BOLT,SOCKET,10X72

€ 7.00

92002B

920021722
ref: 92002B

BOLT,FLANGED,10X265

€ 15.50

92002C

920021822
ref: 92002C

BOLT

€ 18.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92025

920251616
ref: 92025

SHIM,ENGINE MOUNT,T=1

€ 6.50

92025A

920251617
ref: 92025A

SHIM,ENGINE MOUNT,T=2

€ 6.00

92143

921431027
ref: 92143

COLLAR,L=57.5

€ 13.00
